Short answer: define the surface, support and decision before measuring
A plate that rocks on a bench is not automatically proof that its entire face is warped. The result may come from a raised logo, molded texture, hub projection, debris, uneven support or true form error. A buyer should identify the controlled face, use a clean and stable reference, agree the support and measurement route, and record an order-specific acceptance limit before production begins.
ChinaFreeWeight is a factory supporting OEM, ODM, Custom Logo, Private Label and Bulk Supply programs. We can review a model-specific geometry plan, but one responsible limit cannot cover cast iron, rubber-coated plates, urethane plates and bumper plates. Product construction, intended use and agreed drawing determine the method.
Separate flatness, rocking, hub alignment and sleeve wobble
Flatness describes how one identified surface departs from an ideal plane. Rocking is a quick functional observation on a reference, not a complete flatness result. A plate can rock because three local high points touch first, while a textured face may be fit for use even though a casual straightedge does not contact every recess. The drawing must state whether the control applies to a molded face, a machined ring, a steel hub face or another functional land.
Wobble on a bar is a different symptom. It can be caused by bore clearance, an off-axis or tilted insert, hub-face runout, plate deformation, a damaged sleeve or an uneven collar stack. Test face contact and bar-mounted behavior separately. Do not reject or accept a shipment from one visual spin test without isolating the source.
Write a product-specific requirement instead of copying a competition rule
Current IWF and IPF rules define dimensions, mass and approved-equipment conditions for their competition systems. They do not publish one general commercial flatness limit for every plate sold to gyms. ISO 1101 provides the language for geometrical tolerancing, including form and runout, but it does not choose a suitable plate tolerance for the buyer. That value belongs on the agreed product drawing or inspection specification.
State the exact SKU, material family, nominal size, controlled surface, excluded texture or lettering, support condition, measurement path, units, rounding and decision rule. If the requirement is functional rather than metrological, describe the mating surface or stack behavior that matters. Never transfer a tolerance from a competitor, a different thickness or a certified model to an unrelated private-label line.
Use a clean reference and a repeatable measurement route

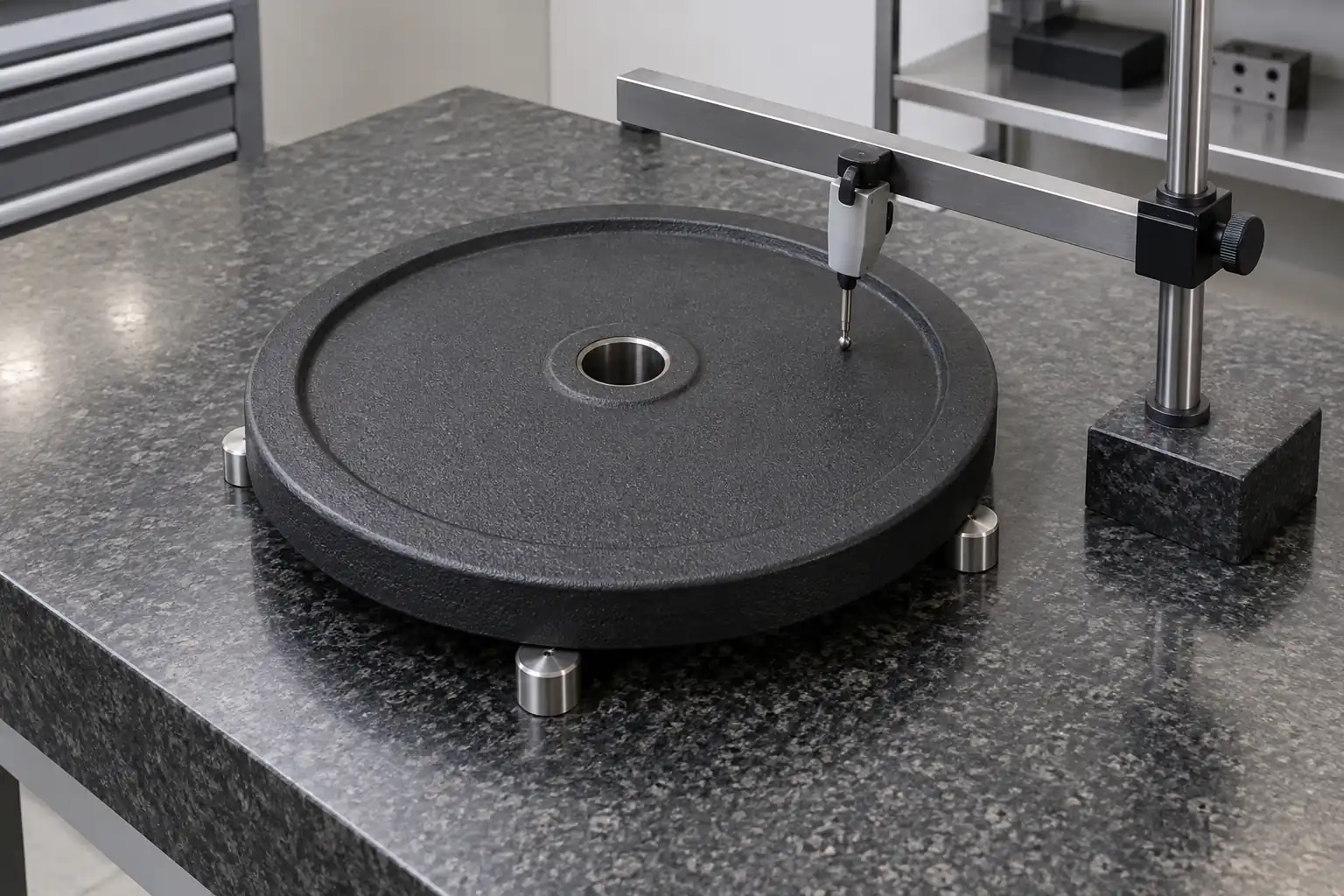

Start with a verified surface plate or another reference whose suitability is documented for the required decision. Clean the reference and product, allow the plate to stabilize in the inspection environment, and identify which side faces down. A quick rocking check can screen samples, while a straightedge and feeler leaves can locate obvious gaps. For a controlled result, an indicator on a stable stand can survey defined points or paths without shifting the part.

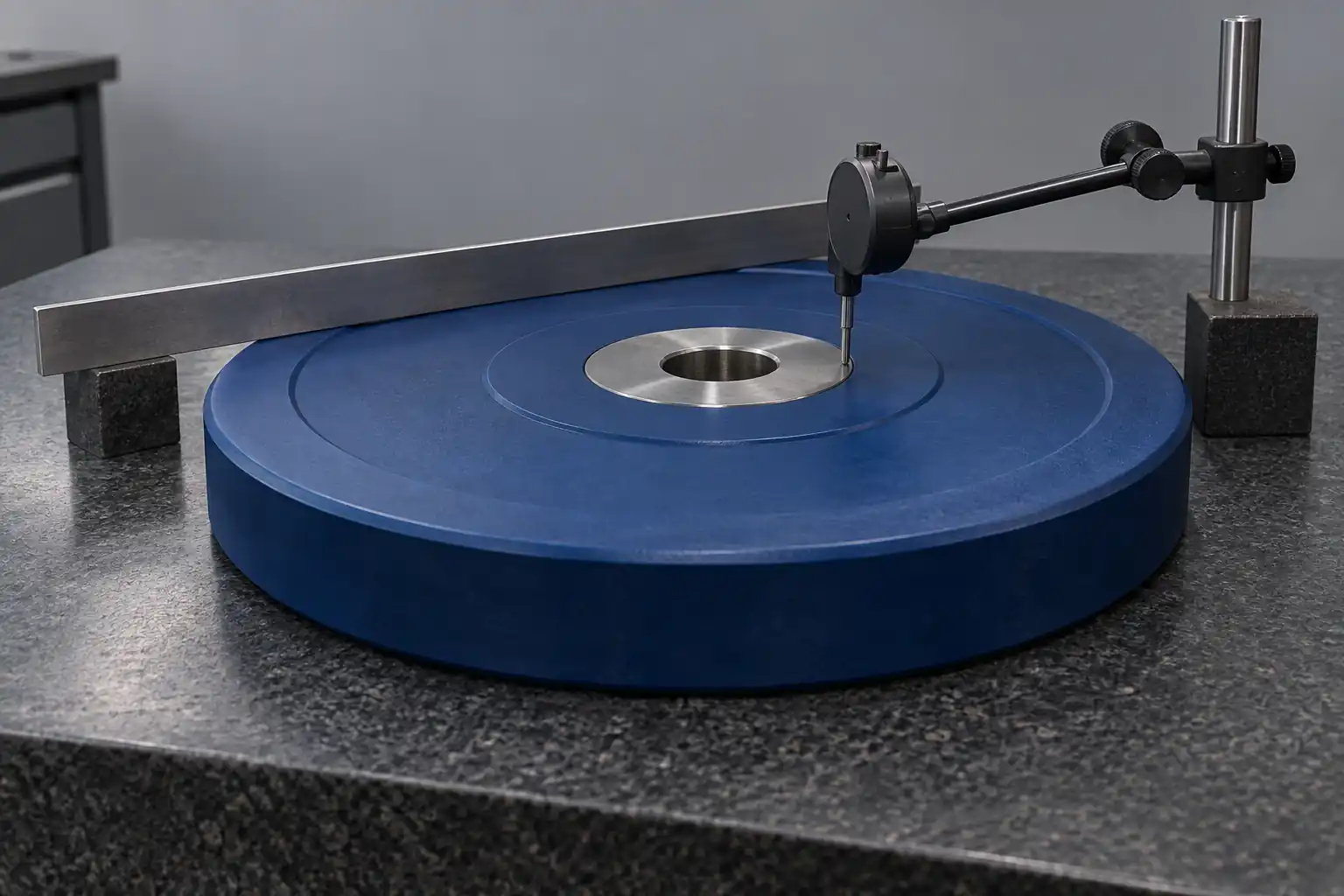

Record whether the plate rests freely, on specified support pads or on its functional hub land. Do not press a flexible rubber plate flat by hand and then call it compliant. Avoid letting a probe ride across raised lettering, decorative ribs or flash unless those features are explicitly part of the control. Repeat the setup after rotating or reversing the plate when the method requires it, and retain individual readings rather than only a pass label.
Plate geometry specification and evidence matrix
| Decision | What to specify | Evidence to retain |
|---|---|---|
| Product boundary | Exact SKU, material and size range | Approved drawing revision |
| Controlled feature | Face, hub land or other functional surface | Marked drawing view |
| Support | Free state, pads or defined datum contact | Method photograph |
| Acceptance rule | Limit, units, rounding and exclusions | Signed specification |
| Tooling | Reference, probe and resolution suited to the decision | Equipment record |
| Measurement path | Points, rings, rotations and repetitions | Inspection instruction |
| Lot sampling | Sizes, cavities, times and cartons | Selection record |
| Change control | Tooling, insert, coating and packing triggers | Reorder history |
Match the check to plate construction and likely variation
Cast plates may show release taper, parting lines, machining lands or coating build. Rubber- and urethane-coated iron plates can add molding shrinkage, coating thickness and local lettering height. Bumper plates may be more flexible, especially in lighter or thinner sizes, and the steel hub can sit proud of the rubber face by design. These differences change the meaningful contact surface and must be reviewed before a gauge is chosen.
Possible process causes include uneven core geometry, mold closing or cooling variation, insert location, machining setup, coating accumulation and storage under uneven load. A measurement identifies a condition; it does not prove the cause. Quarantine outliers, compare them with in-process records and investigate before reworking or relabeling. Flatness also does not replace checks for mass, outside diameter, bore fit, hub retention, finish or odor.
Sample the lot across sizes, cavities, times and cartons
Select samples from light, middle and heavy sizes because geometry, flexibility and tooling may change across a series. Spread the sample across production periods, mold cavities or machining setups, coating lots and export cartons. Pair selection should not be limited to the easiest units at the top of one pallet. The plan should define sample identity, selection rule, repetitions and escalation when a result crosses the agreed boundary.
The report should include SKU, nominal weight, side inspected, support method, reference and tool identification, measurement points, result, unit, method revision, date and disposition. Photographs help explain the setup but are not substitutes for readings. If receiving inspection disagrees with pre-shipment data, first reconcile cleanliness, temperature, support, orientation, tool condition and the exact surface being judged.
Protect approved geometry through branding, packing and reorders
A Custom Logo, molded lettering or colored insert can change local surface height even when the plate core is unchanged. Freeze the approved artwork, relief depth, hub profile, material, tooling and inspection surface in the sample record. ODM geometry changes need technical review; OEM artwork changes should not silently redefine the functional face or obscure traceability.
Use separators and stable pallet patterns so plates are not stored on debris, unsupported edges or uneven stacks during export. Reorders should trigger review after changes to core supplier, mold, insert, machining program, coating system or packing pattern. Price, MOQ and lead time remain quotation-specific. Send the exact size schedule, intended use and required evidence so the factory can return a comparable proposal.
Ten checks before accepting plate flatness
- Identify the exact plate SKU and construction.
- Name the surface or land that is controlled.
- Separate face rocking from bore and hub wobble.
- Define support, orientation and cleaning.
- Use a reference and tool suitable for the decision.
- Exclude or include molded relief explicitly.
- Inspect light, middle and heavy sizes.
- Spread samples across production and cartons.
- Record individual results and setup photographs.
- Reapprove after geometry, tooling or packing changes.
Build the rest of the plate purchase specification
- Review commercial weight plates
- Verify plate weight tolerance
- Check plate-to-sleeve fit
- Specify outside diameter
- Review grip-opening geometry
- Inspect bumper-plate hubs
- Compare plate finishes
- Build a comparable RFQ
- Plan pre-shipment inspection
- Send the plate specification
Frequently Asked Questions About Weight Plate Flatness
Is a rocking weight plate always warped?
No. Raised features, debris, hub projection and support can also cause rocking. Clean the parts and inspect the agreed functional surface.
What is the standard flatness tolerance for Olympic plates?
There is no single universal commercial value. Set a model-specific limit and method on the approved drawing or inspection specification.
Can a straightedge and feeler gauge be used?
They can screen or measure an agreed gap if the reference, path, tool condition and decision rule are defined. They do not automatically produce an ISO flatness result.
Why does a plate wobble on the bar even when its face looks flat?
Bore clearance, insert tilt, hub runout, sleeve condition or collar stacking may be responsible. Test those features separately.
Should the rubber face or steel hub touch the reference?
Use the functional contact defined for that model. A hub may intentionally project, so the drawing and approved sample must decide the setup.
How many plates should be checked?
Use a risk-based sampling plan that covers sizes, production periods, tooling positions and cartons. One universal count is not responsible.
Does flatness prove plate quality?
No. Mass, diameter, bore fit, hub retention, coating, marking, packing and intended-use requirements need separate checks.
