The quick answer: treat the plate and bar as one measured interface
An Olympic label does not by itself guarantee that every plate will load smoothly on every bar. The buyer must compare the largest finished sleeve diameter with the smallest finished plate bore, then account for roundness, straightness, coating, burrs, insert alignment and the way both parts are measured. A functional fit check on agreed reference parts should support, not replace, the dimensional record.
This matters in commercial gyms because a fit that is too tight slows plate changes and may seize after contamination or minor damage. Excessive looseness allows visible rocking and noise, while a collar only controls movement along the sleeve. PowerBaseFit can review the interface as one factory specification for OEM, ODM, custom-logo, private-label and bulk-supply projects.
50 mm and 2 inch are category names, not the same exact dimension
Two inches equals 50.8 mm, not 50.0 mm. In product listings, however, both expressions are often used loosely for the Olympic-class interface. Published competition and manufacturer specifications also use different finished openings for different products. That is why converting a marketing label into a factory tolerance without checking the actual standard, bar and plate is unsafe.
First separate Olympic-class equipment from smaller standard or domestic systems. Then write the actual finished dimensions and tolerances for the selected plate family and bar model. If a project must meet a federation rule or an approved-equipment list, cite the exact current document and discipline; do not blend weightlifting, powerlifting and general commercial specifications into one number.
Build a two-sided interface specification
A usable purchase specification identifies the bar model, sleeve outside diameter after finishing, dimensional tolerance, roundness, straightness and the areas included in measurement. It also identifies the plate SKU, finished bore or insert inside diameter, its tolerance, roundness, taper or chamfer, insertion depth and permitted edge condition. Units and instrument resolution belong beside every value.
The clearance calculation must use limits, not only nominal values: minimum plate opening against maximum sleeve size is the tightest condition; maximum opening against minimum sleeve size is the loosest. The drawing should also state whether ribs, grooves, coatings or end transitions are excluded. Ask the supplier to show that the complete limit combination remains loadable and commercially acceptable.
Plate-and-bar fit control matrix
| Interface item | What to define | Why buyers check it |
|---|---|---|
| Bar sleeve | Finished outside diameter, tolerance, roundness, straightness and measured zone | Sets the largest and smallest mating surface |
| Plate bore or insert | Finished inside diameter, tolerance, roundness, depth, chamfer and edge condition | Controls loading, removal and rocking |
| Limit clearance | Minimum bore minus maximum sleeve; maximum bore minus minimum sleeve | Tests tightest and loosest permitted combinations |
| Construction and finish | Insert seating, machining stage, coating or plating and protected surfaces | Prevents the process from changing the approved interface |
| Functional reference | Identified clean sleeve or gauge and an agreed loading/removal method | Connects measured limits with practical handling |
| Sampling and change control | SKUs, lots, bar ends, record format and reapproval triggers | Protects the full order and later reorders |
Measure diameter, roundness and fit at more than one point

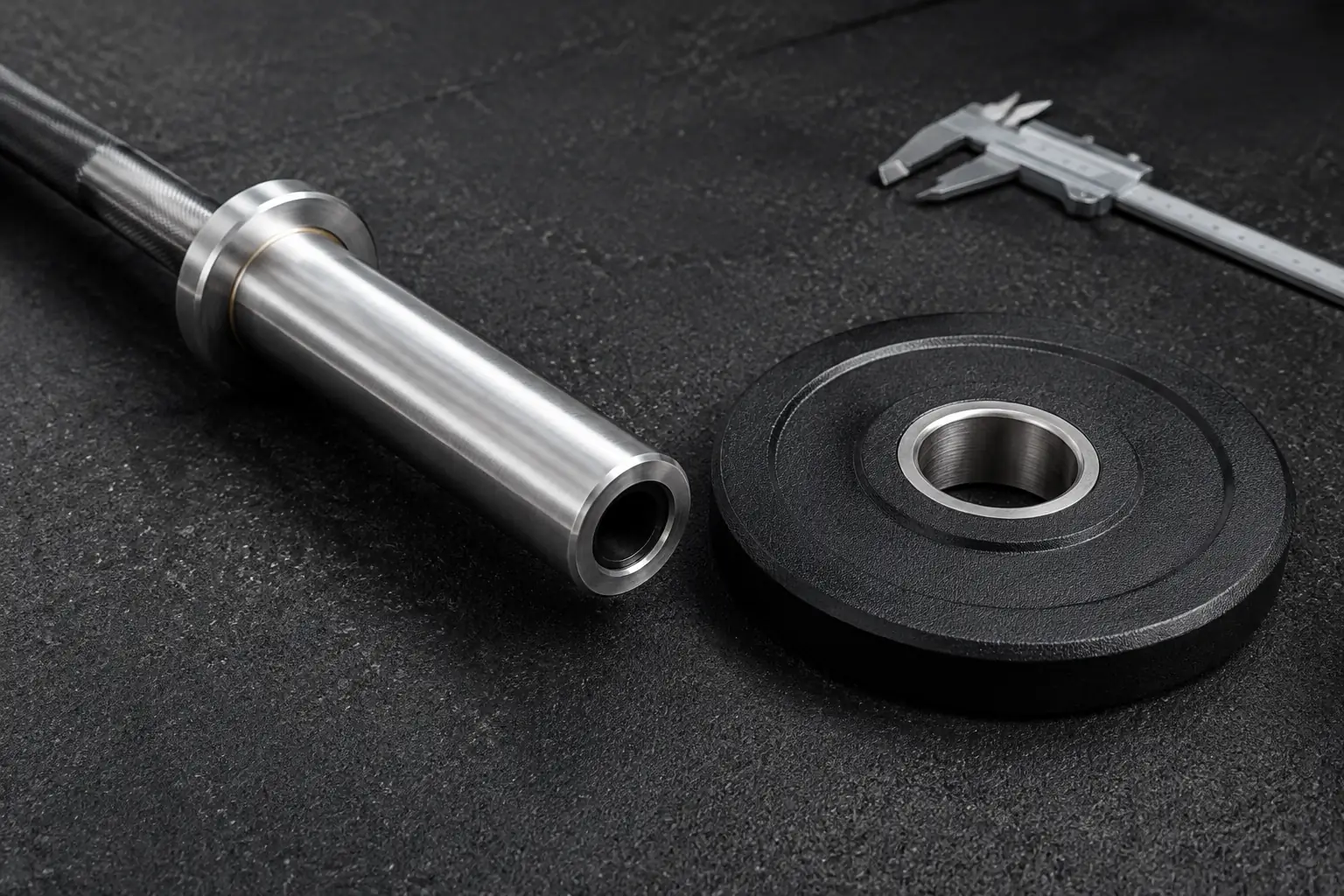

One caliper reading can miss an oval bore, tapered insert or sleeve high spot. Agree where readings are taken, how many angular directions and depths are checked, and whether a bore gauge, micrometer, go/no-go gauge or another verified tool is appropriate. Record the instrument identification, unit, resolution and result rather than photographing an unreadable display.

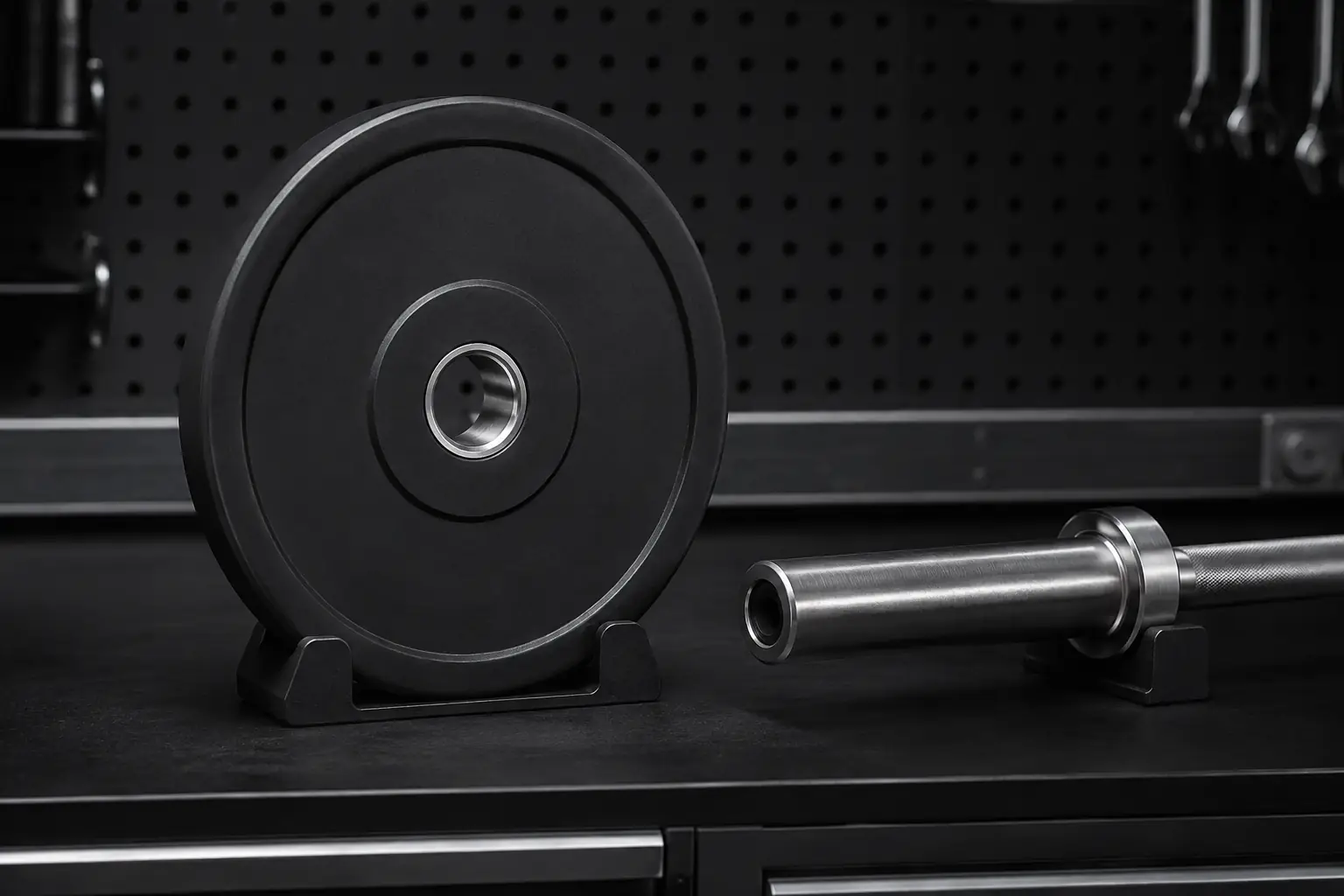

Functional testing should use clean, undamaged reference sleeves that represent the accepted limit or approved production bar. Load the plate squarely without impact, confirm travel across the intended loading length and remove it by hand. Do not sand, hammer or force a sample to create a pass. Those actions hide whether the plate, sleeve or both are outside the agreed condition.
Control the insert, machining and finish that create the bore
Cast-iron plates, coated grip plates and bumper plates can reach the interface through different constructions. The final bore may be cast, machined, formed by a steel insert or affected by an applied coating. The buyer should therefore specify the finished result and the relevant construction details instead of assuming that every material is controlled in the same step.
Inspect insert concentricity, seating, tilt, exposed edges, burrs, coating build and damage. For plates intended to be dropped, the insert-to-body construction also deserves model-specific review; a bore size alone says nothing about retention. Custom logos, colors and markings must not disturb the insert, cover inspection surfaces or change the approved bore process.
Approve a representative family, not one convenient plate and bar
A single well-matched pair can conceal variation. The sample plan should cover the lightest and heaviest relevant plates, different molds or insert sizes when they exist, both ends of the bar and every bar family the buyer expects to use. A gym that mixes existing bars with a new plate order should provide measured reference information or representative hardware before approval.
For bulk inspection, draw samples across production lots, cartons and SKUs. Record individual dimensional results and the corresponding functional-fit result, because an average cannot rescue an out-of-limit part. If a later reorder uses a new insert supplier, machining setup, coating system or sleeve finish, require change control and a new comparison against the retained reference.
Protect the approved fit through finishing, packing and gym use
Plating or coating can alter a sleeve diameter, while overspray, flash, corrosion, dents or debris can reduce usable clearance. Measurements should therefore describe the finished product. Before packing, check bore edges and sleeve surfaces, remove loose contamination and use separators that prevent heavy parts from striking the interface during transport.
At receiving, photograph carton condition, identify the sampled SKUs and test them on clean reference bars before distributing the order. Quarantine plates that bind or sleeves with raised damage. In service, keep loading surfaces clean and inspect wear, but do not treat routine maintenance as permission to re-machine a mismatched product. Collars remain necessary for intended use even when the radial fit is close.
Production-sample and inspection checklist
- Identify every plate SKU and bar model included in the compatibility claim
- Record finished sleeve and bore limits in one unit system
- Define measurement positions, directions, depth and verified tools
- Check roundness, taper, burrs, coating build and insert alignment
- Test tightest and loosest expected limit combinations
- Approve loading and hand-removal on identified clean references
- Sample across lots, cartons, plate sizes and both bar ends
- Retain the drawing, sample record, artwork revision and change triggers
Send the factory a complete RFQ and acceptance record
State the destination market, plate types, weight range, quantities by SKU, bar models, finished sleeve limits, finished bore limits, measurement method, functional references, sampling plan, packaging and receiving checks. Add the required weight unit, custom-logo method, color, carton artwork and private-label identification. Separate mandatory interface criteria from preferences such as how snug the plate should feel.
For ODM work, flag any new insert, hub or sleeve geometry early because tooling and validation may change. For OEM and wholesale programs, approve one revision-controlled drawing and sample record before bulk production. PowerBaseFit will confirm feasible specifications, sample needs, order conditions and inspection points from the actual product combination rather than promise universal compatibility from the word “Olympic.”
Continue the specification process
- Choose the complete Olympic bar specification
- Review wholesale weight plate options
- Specify plate mass tolerance
- Compare barbell surface finishes
- Plan KG or LB markings and quantities
- Review factory and quality-control support
- Plan OEM and private-label details
- Send your product list for review
Frequently Asked Questions About Plate and Sleeve Fit
Are 50 mm and 2 inch weight plate holes exactly the same?
No. Two inches is 50.8 mm. Both labels are often used for the same product class, so buyers must request the actual finished dimensions and tolerances.
Will every Olympic plate fit every Olympic barbell?
Not automatically. The result depends on the finished sleeve and bore limits, roundness, straightness, finish, damage and cleanliness.
How much clearance should an Olympic plate have?
There is no single clearance for every commercial or competition product. Define the applicable rule or product need, then verify the tightest and loosest limit combinations.
Why does a plate become stuck on a bar sleeve?
Possible causes include an oversized or out-of-round sleeve, undersized or tapered bore, burrs, coating build, debris, corrosion, damage or a tilted insert. Isolate the cause before corrective action.
Why does a plate rock or rattle on the bar?
The bore may be large, the sleeve may be small or worn, or the insert may be misaligned. Measure both parts and check the plate face and collar use.
Can a barbell collar correct a loose plate bore?
A collar limits movement along the sleeve when used correctly. It does not restore radial fit, insert alignment or a missing dimensional requirement.
How should a buyer inspect a bulk order?
Use an agreed sampling plan across SKUs and lots, record bore and sleeve measurements, inspect edges and inserts, and perform controlled fit checks on identified references.
Can PowerBaseFit supply custom-logo plates and matching bars?
PowerBaseFit can review OEM, ODM, custom-logo, private-label and bulk-supply combinations. Feasibility, samples, order terms and acceptance criteria are confirmed from the chosen models.
