How to Specify Finishes for Cast-Iron Weight Plates

Short answer: buy a complete coating system, not a finish name

Paint, powder coating and electrocoat can all protect a cast-iron plate when the substrate preparation, application, cure and coverage are controlled for the chosen product. The finish name alone does not predict corrosion resistance, chip behavior, texture or appearance. Define the market environment, contact points and acceptable cosmetic variation before selecting a route.

For a bulk order, specify the iron construction, preparation, coating family, target color and texture, surfaces to cover, areas to keep dimensionally controlled, sample approval and receiving checks. ChinaFreeWeight is a factory and can review OEM, ODM, Custom Logo, Private Label and Bulk Supply programs, but the final scope must be tied to the actual plate model and approved sample.

Separate wet paint, powder coating and electrocoat

A liquid paint system may use primer, color coat or another agreed stack applied by the chosen production method. Powder coating deposits a dry coating material and cures it into a film. Electrocoat uses an electrically driven immersion bath to place coating on conductive parts. These descriptions identify processes; they do not create an automatic quality ranking.

Electrocoat can reach recessed surfaces through immersion and is often comparatively thin. Powder can provide a textured or smooth appearance and many color options. Liquid paint may suit a defined cost, appearance or repair route. Actual performance still depends on cleaning, surface condition, chemistry, film build, cure, part geometry and handling after coating.

Define where the plate is expected to resist corrosion

Map the journey from production to the end user: enclosed packing, ocean or inland transport, unconditioned storage, cleaning, perspiration, humidity and metal-to-metal contact. A dry climate-controlled gym does not create the same exposure as a coastal warehouse. Ask for a system that fits the real route instead of copying a generic corrosion claim.

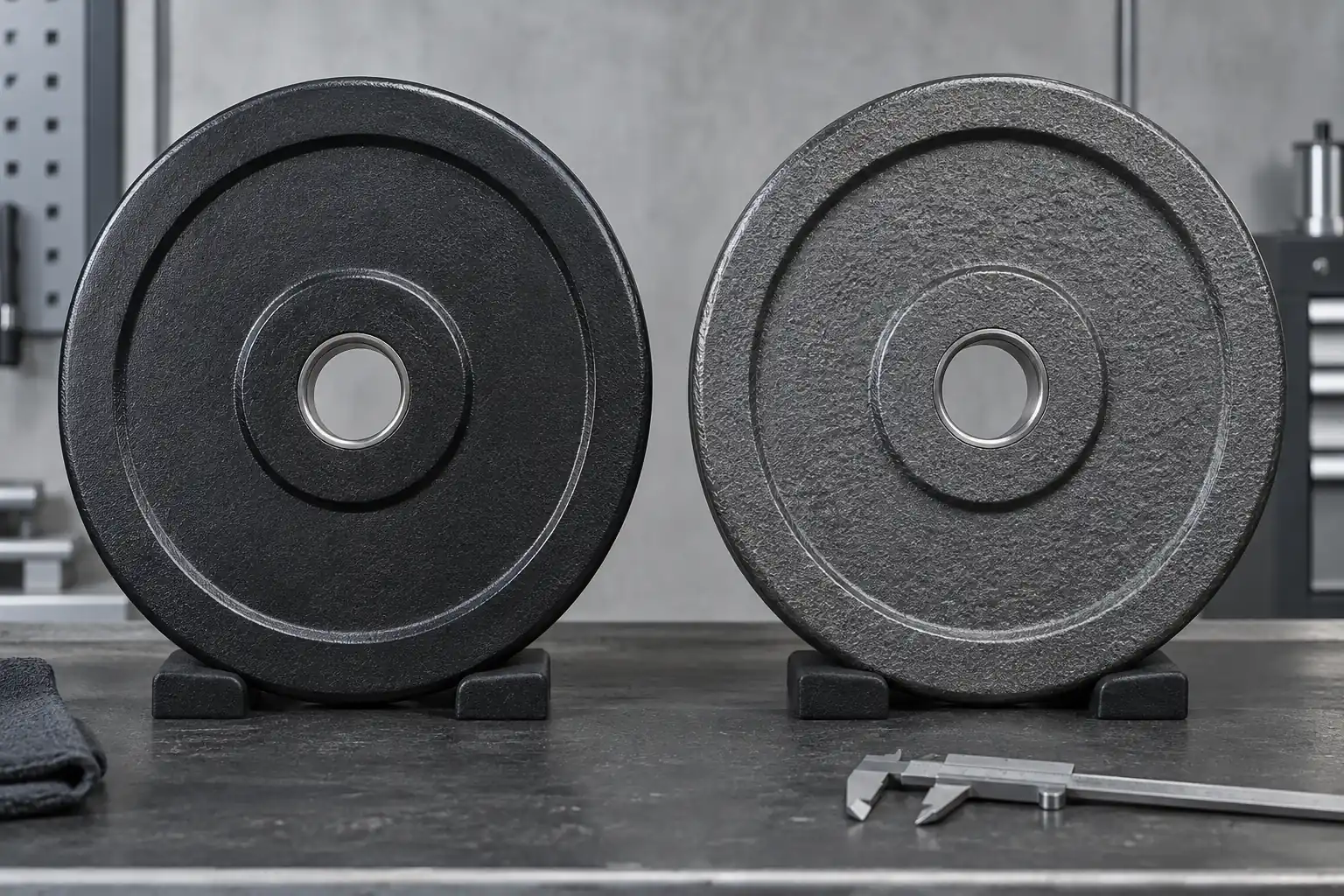

Give special attention to the center bore, outer rim, raised lettering, recesses and any machined faces. These are common points for thin coverage, rubbing or exposed metal. If a buyer intentionally wants a machined contact face, the drawing should identify it and define preservation, packing and maintenance rather than letting the omission happen by accident.

Approve texture, color and coverage on production-equivalent plates

Review light, middle and heavy plates because casting texture, wall thickness and recess geometry can vary across a series. Inspect faces, rim, bore, underside and transitions under agreed lighting. Record color reference, gloss or texture expectation, allowable casting show-through, logo treatment and examples of acceptable and unacceptable appearance.

A small flat coupon is useful for chemistry or color communication, but it does not replace a coated plate. Edges, lettering and bores change how a coating deposits and cures. Keep a labeled production-equivalent sample and photographs taken under consistent conditions so the production lot and later reorders can be compared to the same reference.

Finish specification and evidence matrix

Use coating tests only with a written method and purpose

ASTM D3359 and ISO 2409 describe cut-and-tape approaches for assessing coating adhesion within their stated scopes. They do not supply one pass result for every plate or coating system. If an adhesion check is required, agree the standard edition, specimen, film condition, cut method, rating and who may perform a destructive cut.

ISO 9227 specifies salt-spray procedures for assessing corrosion resistance under controlled artificial atmospheres. A result can compare agreed specimens under one method; it is not a direct promise of years in a gym. Record specimen preparation, scribing, exposure, evaluation and acceptance criteria, and never transfer a result from an unrelated substrate or coating stack.

Inspect the finished lot at the product and packing levels

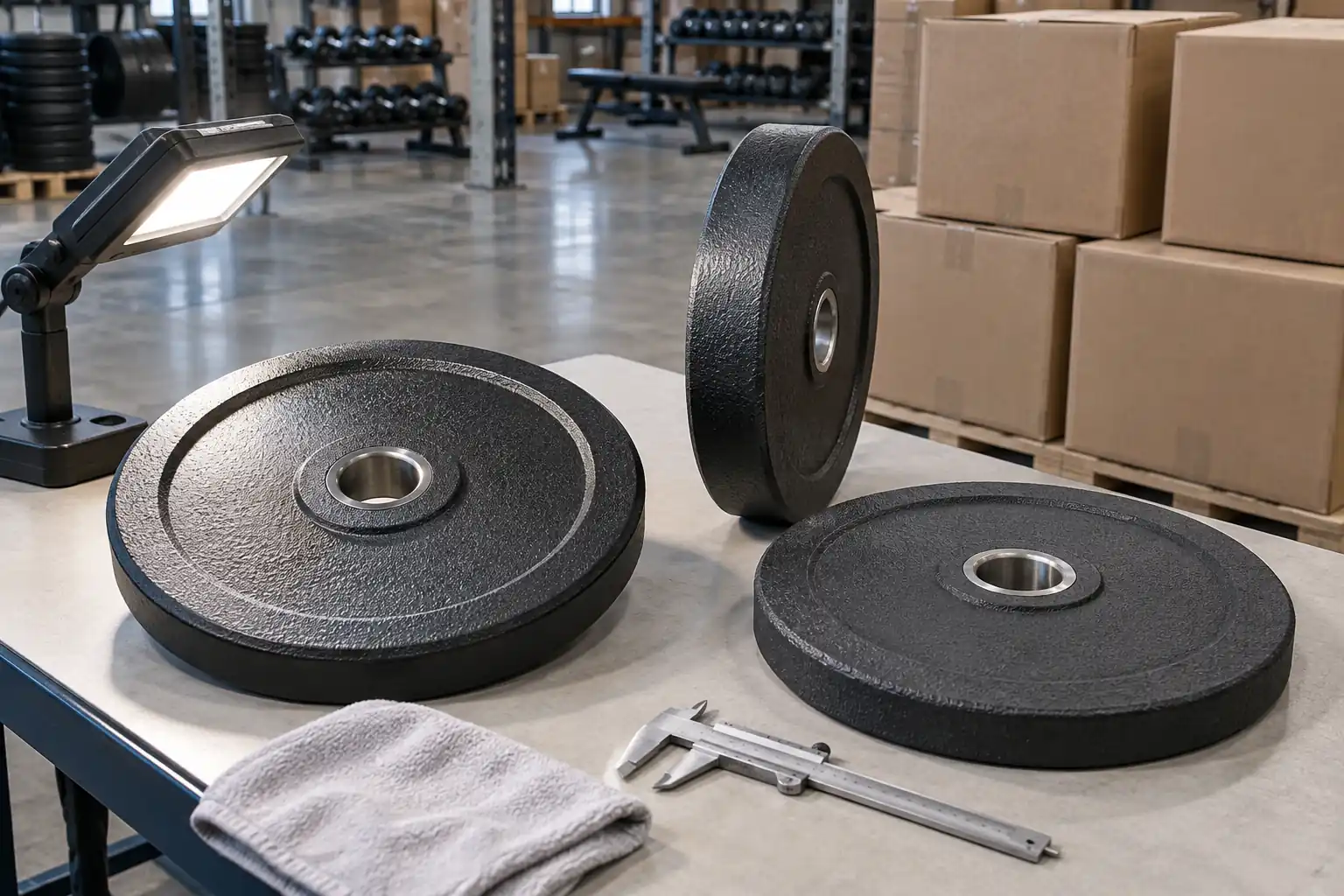

Sample across weights, cartons and production periods. Confirm identity first, then examine bare spots, blisters, peeling, runs, rough contamination, edge chips, abnormal color difference and corrosion. Check the finished bore on the intended bar or gauge and verify that coating does not hide burrs, distort lettering or change the approved stacking contact.

Do not repair sampled defects with an undocumented marker, spray or oil before disposition. Isolate affected units, trace their location and determine whether the issue is isolated or systemic. The inspection plan should distinguish functional nonconformity from agreed casting texture and minor cosmetic variation, with a clear action for each class.

Protect the finish in transit and control every reorder

Coated iron can still be damaged when heavy plates rub inside a carton or when moisture is trapped against the surface. Approve separators, bags or wraps that do not stain or stick, control internal movement and identify every carton. Pallet and container plans should keep heavy packages stable and make receiving inspection practical.

Require notice before changing casting source, blasting or cleaning route, primer, coating chemistry, supplier, color, film target, cure cycle, touch-up method or packaging contact material. Custom logos and weight markings belong in the same controlled revision. Reapprove the affected sample instead of assuming that a matching black color means the finish system is unchanged.

Ten checks before releasing the bulk order

• State the sales market, storage and cleaning environment.
• Identify the exact plate construction and every machined surface.
• Name the surface-preparation and coating system by revision.
• Define finished coverage at faces, rim, bore and recesses.
• Approve color, texture and casting show-through on actual plates.
• Measure functional dimensions only after the finish is complete.
• Write any adhesion or corrosion method with its specimen and pass rule.
• Sample multiple weights, cartons and production periods.
• Approve non-staining separation and stable export packing.
• Require notification and reapproval for process or material changes.

Continue the weight-plate specification

• Compare cast iron, rubber and urethane plates
• Set weight-tolerance controls
• Check outside diameter and profile
• Verify plate-bore and sleeve fit
• Plan export packaging
• Prepare pre-shipment inspection
• Browse commercial weight plates
• Review OEM and private-label options
• See the factory-control approach
• Send the plate requirement

Frequently Asked Questions About Cast-Iron Plate Finishes

Is electrocoat always better than powder coating for weight plates?

No. Electrocoat, powder and liquid paint create different process options. The better choice depends on plate geometry, appearance, environment, contact wear, specification and verified execution.

Why do cast-iron weight plates rust?

Rust can begin where iron is exposed to moisture, including chips, pores, thinly covered edges, bores or damaged contact points. Storage, cleaning and packing conditions also matter.

Can a coating change the center-hole fit?

Yes. The bore must be evaluated in its finished state. The drawing should identify any masked or machined areas and the final fit requirement.

Does a salt-spray result predict gym service life?

No. A controlled salt-spray result describes performance under the stated procedure and specimen preparation. It is not a direct conversion to years of field use.

Should coating adhesion be tested on every saleable plate?

Usually a destructive cut belongs on agreed test specimens or sacrificial samples. Lot inspection can combine process records, visual checks and agreed non-destructive observations.

Can a factory add a custom color and logo?

For suitable models, yes. Approve the exact color reference, logo method, placement, contrast, weight marking and coated production-equivalent sample before release.

What should a receiving team check first?

Verify model and carton identity, then inspect coverage, damage and corrosion before confirming bore fit, dimensions, marking and comparison with the approved sample.
