Short answer: test handling with the actual plate
A grip plate should be judged by whether a user can pick it up, carry it and load it without pinching fingers or fighting adjacent plates. The number of holes alone says little. Opening geometry, usable depth, edge finish and access from either face matter.
Ask for a production-equivalent sample in every relevant weight and try the intended storage and bar or machine. ChinaFreeWeight is a free-weight factory that can discuss OEM, ODM, Custom Logo, Private Label and Bulk Supply; the final design and acceptance method must be agreed for the offered model.
Separate the carrying opening from the center bore
The central bore fits the bar sleeve or machine horn. A grip opening is a hand-contact feature. Neither one proves the fit or strength of the other. Confirm bore and sleeve compatibility in a separate specification.
Some small denominations have too little room for the same opening pattern as a larger plate. Request a drawing for each size instead of assuming one photograph describes the full series.

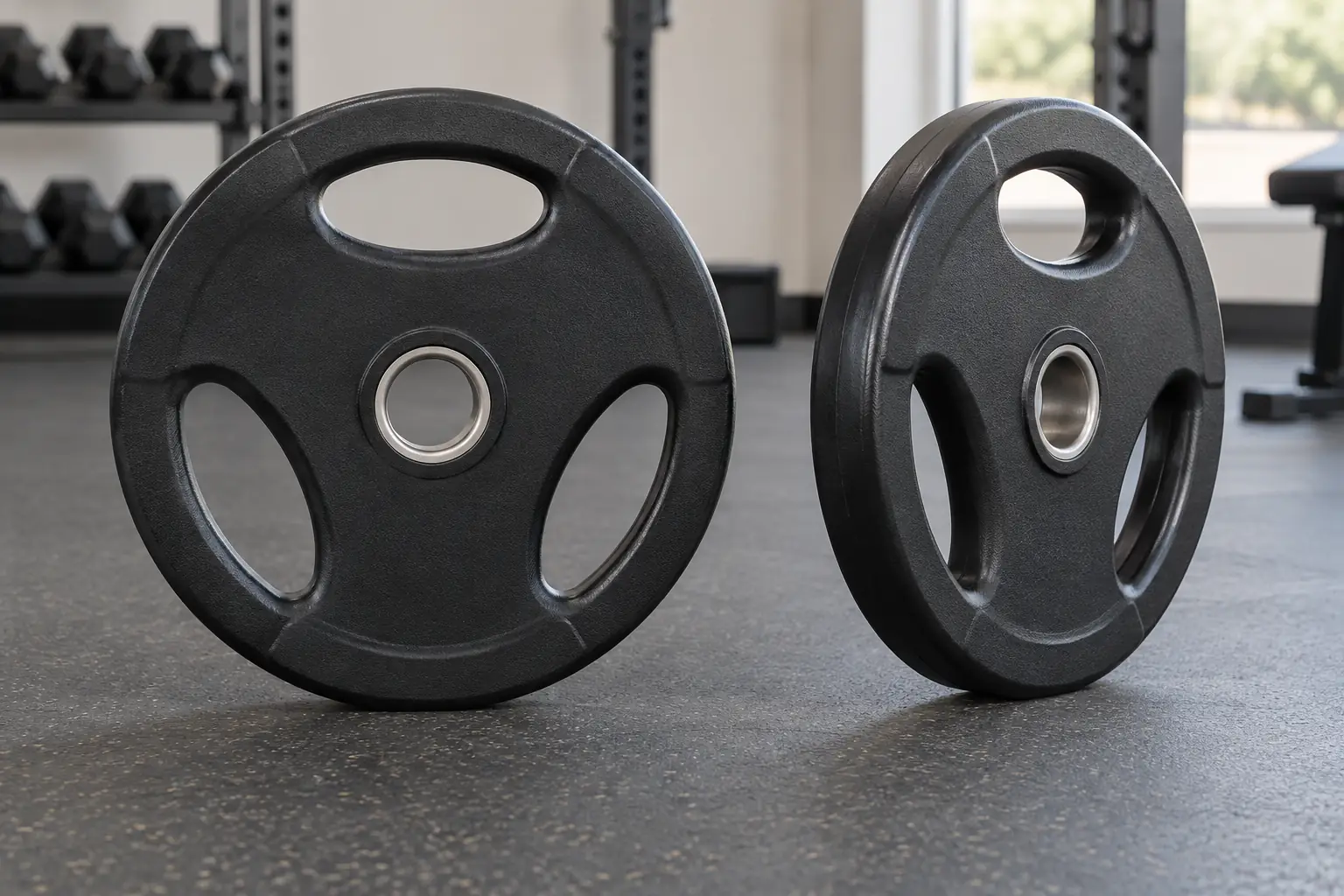

Define usable hand clearance
Try the real lifting motion
Record the smallest clear space through the opening after molding and coating, not just the outline on a drawing. Test bare hands and any gloves used by staff. Check whether the fingers can enter while the plate is flat, on a low peg and against another plate.
A person should be able to grasp without using the bore as a handle. Compare both faces; a recess that works from the front may be difficult from the back.
Inspect the edge and material around the opening
Look where hands actually touch
Feel the complete inner edge and both face transitions. Flash, exposed metal, sharp seams, loose coating or a rough repair can make an attractive plate unpleasant to handle. Agree a tactile and visual reference sample before production.
The opening removes material from the plate body. Ask how core geometry, coating coverage and molding are controlled around narrow bridges; do not infer structural performance from an image.

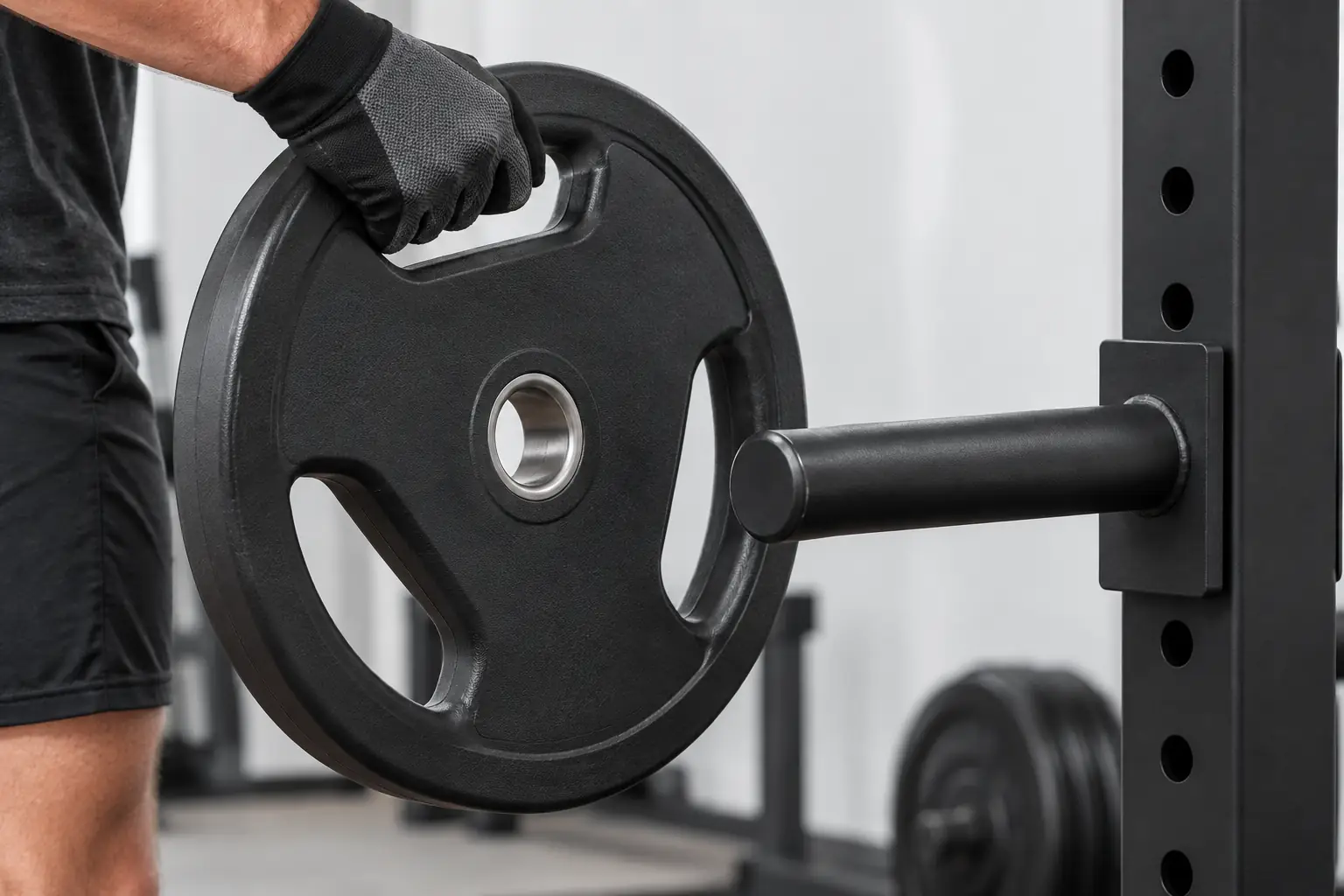

Check storage and loading together
Use the planned rack and equipment
On a full storage peg, the next plate may hide the nearest grip. Test reach, finger clearance and withdrawal without scraping neighboring plates. Then mount the plate on the intended bar or plate-loaded machine and verify that the opening remains usable during changes.
Keep the plate's outside diameter, thickness and bore in the separate dimensional plan. Grip convenience does not establish rack capacity or safe sleeve loading.
Approve branding without sacrificing grip
Protect the hand-contact zone
Place custom logos, weight marks and color accents where they remain legible and do not create a raised ridge inside the opening. Confirm artwork on the final coating or molded material. A drawing approval alone cannot show the hand feel.
For private-label replenishment, retain the approved mold revision, color reference, opening dimensions and edge finish. A cosmetic change can alter clearance or the surface that users touch.
Write the receiving method before bulk supply
Compare across sizes and cartons
Identify the model and weight, check the intended hole pattern, feel representative edges and compare handling against the approved sample. Spread the sample across sizes and cartons. Record photos of both faces and any defect location.
If a sharp edge, blocked opening or coating separation appears, isolate affected stock and agree disposition with the factory. Do not grind or trim a finished plate during receiving to make a failed unit pass.
Grip plate decision table
| Control | Buyer action |
|---|---|
| Define usable hand clearance | Request a drawing of both faces and the finished openings. |
| Inspect the edge and material around the opening | Test hand access on floor, storage peg and equipment. |
| Check storage and loading together | Approve edge finish and coating on a physical sample. |
| Approve branding without sacrificing grip | Keep bore fit and grip geometry as separate checks. |
| Write the receiving method before bulk supply | Record branding, packaging and lot inspection rules. |
Buying brief
- List every plate weight and piece quantity.
- Request a drawing of both faces and the finished openings.
- Test hand access on floor, storage peg and equipment.
Receiving checks
- Approve edge finish and coating on a physical sample.
- Keep bore fit and grip geometry as separate checks.
- Record branding, packaging and lot inspection rules.
Continue the plate specification
- Compare commercial weight plates
- Check bore and sleeve fit
- Review rubber coating adhesion
- Specify outside diameter
- Plan pre-shipment inspection
- Approve the OEM sample
- Discuss private-label options
- Send the plate enquiry
Frequently Asked Questions About Grip Plates
Are more grip holes always better?
No. Usable opening size, edge feel and access in the planned storage system matter more than a hole count.
Can every size share the same opening pattern?
Not necessarily. Smaller plates may need a different geometry; approve the drawing and sample by size.
Does a grip opening prove bar compatibility?
No. Measure the center bore and intended sleeve or machine horn separately.
Can our logo be added inside a grip opening?
Keep raised or abrasive artwork away from the hand-contact surface; approve placement on a finished sample.
What should a bulk inspection record?
Record model, size, opening shape, edge condition, hand access, coating, bore fit, packaging and sample identity.
Specify the plate before requesting a quote
Send weights, quantities, storage details, bore requirements, logo artwork and inspection expectations. Our factory team can review the model-specific brief. Request a plate review.
