Direct answer: no, weight plates do not all share one outside diameter

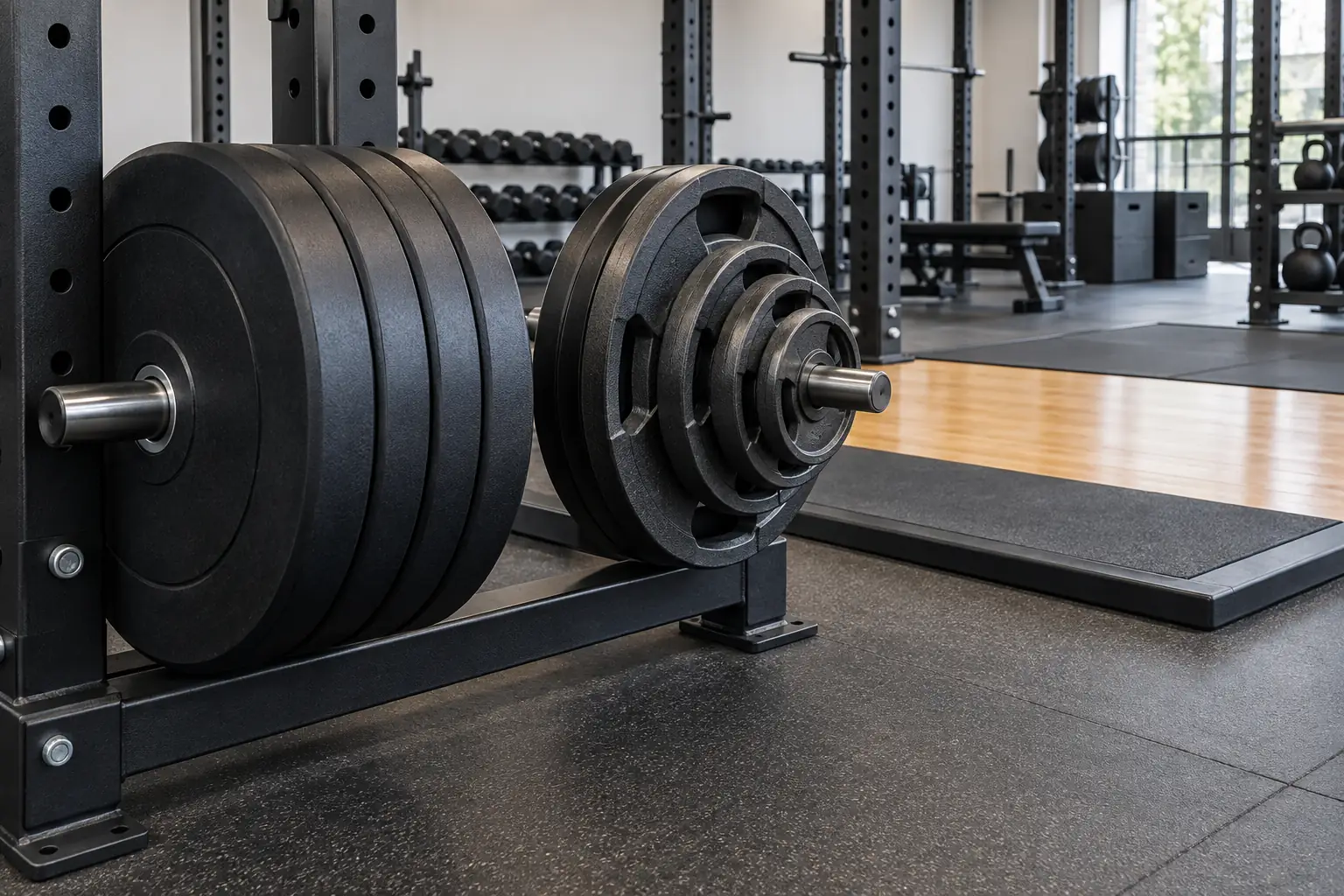

Full-size bumper and competition-style discs commonly use a consistent outer envelope, while cast-iron, grip, change and machine plates may use smaller or denomination-dependent diameters. Outside diameter is separate from the centre-bore size that determines sleeve compatibility and from plate thickness that consumes loadable sleeve length.
For a commercial order, write the permitted outside diameter and its tolerance for every SKU that matters. Do not accept “Olympic” as a substitute: it may describe the bore or intended bar family without proving the outer profile, floor height, rack clearance or ability to share impact.
Start with the exercise and contact condition
Ask whether the loaded bar reaches the floor, may be released onto an approved platform, stays inside a rack, or is used on a plate-loaded machine. The largest plate touching the floor sets the bar's starting height; a smaller companion plate can add load without changing that height, but it may not share contact during a drop.
That distinction changes the buying brief. Olympic lifting and technique work can need a controlled full-size envelope, whereas selector areas, storage-dense gyms and machine pegs may benefit from compact graduated profiles. The product's permitted use and the equipment maker's instructions remain authoritative.
Read competition dimensions as a rule scope, not a product grade
The International Weightlifting Federation states that the largest discs have a 450 mm diameter with a stated tolerance. Its same public specification allows lighter discs to use other materials. The International Powerlifting Federation sets a maximum diameter for the largest discs. These are competition equipment rules, not proof that every commercial bumper, iron plate or change plate follows the same construction.
If a supplier references a standard, request the current document, the exact product claim and evidence for the offered model. A 450 mm nominal value does not by itself verify roundness, finished tolerance, rebound, mass, centre fit, hub security or permission to drop the plate.
Outside-diameter decision matrix
| Plate family | Diameter question | Buyer consequence |
|---|---|---|
| Full-size bumper | Which denominations share the finished envelope? | Starting height and contact pattern |
| Technique plate | Is it full-size despite low mass, and what use is allowed? | Coaching height and handling rules |
| Cast-iron or grip plate | Does diameter change by denomination? | Storage density and floor-contact mix |
| Change or fractional plate | What compact profile and hub projection apply? | Loading order and identification |
| Plate-loaded machine plate | What is the maximum envelope and hand clearance? | Peg, guard and frame compatibility |
| Private-label revision | Did mould relief, logo or rim treatment change? | Reapproval and reorder consistency |
Freeze the complete outer profile, not one nominal number
A useful drawing identifies maximum finished diameter, tolerance, measurement direction, rim radius or chamfer, raised lettering, handles, face relief, hub projection and flatness. Measure across more than one axis when roundness matters, and define whether flexible flash, decorative ribs or protective lips are included in the envelope.
For OEM, ODM, custom-logo and private-label work, artwork must remain inside the approved face area. A new relief, mould insert, colour layer or edge treatment can change the measured envelope or storage contact even when the nominal diameter stays the same. Revision identity should link drawing, finished sample and packaging.
Check the facility interface before approving the range
Compare the largest finished envelope with plate trees, horizontal pegs, rack uprights, carts, shelving, machine guards and walking clearance. Check removal by a real user path, not only whether a plate can be forced onto an empty peg. A grip opening may improve handling, but the hand path and neighbouring plates still need space.
Also review packaging and pallet orientation. Full-size light plates can occupy more carton face area than compact iron plates, while dense metal plates create different handling risks. The factory quote should therefore connect diameter family, quantities by SKU, carton protection and unloading plan rather than hiding them behind one set name.
Approve samples across construction changes

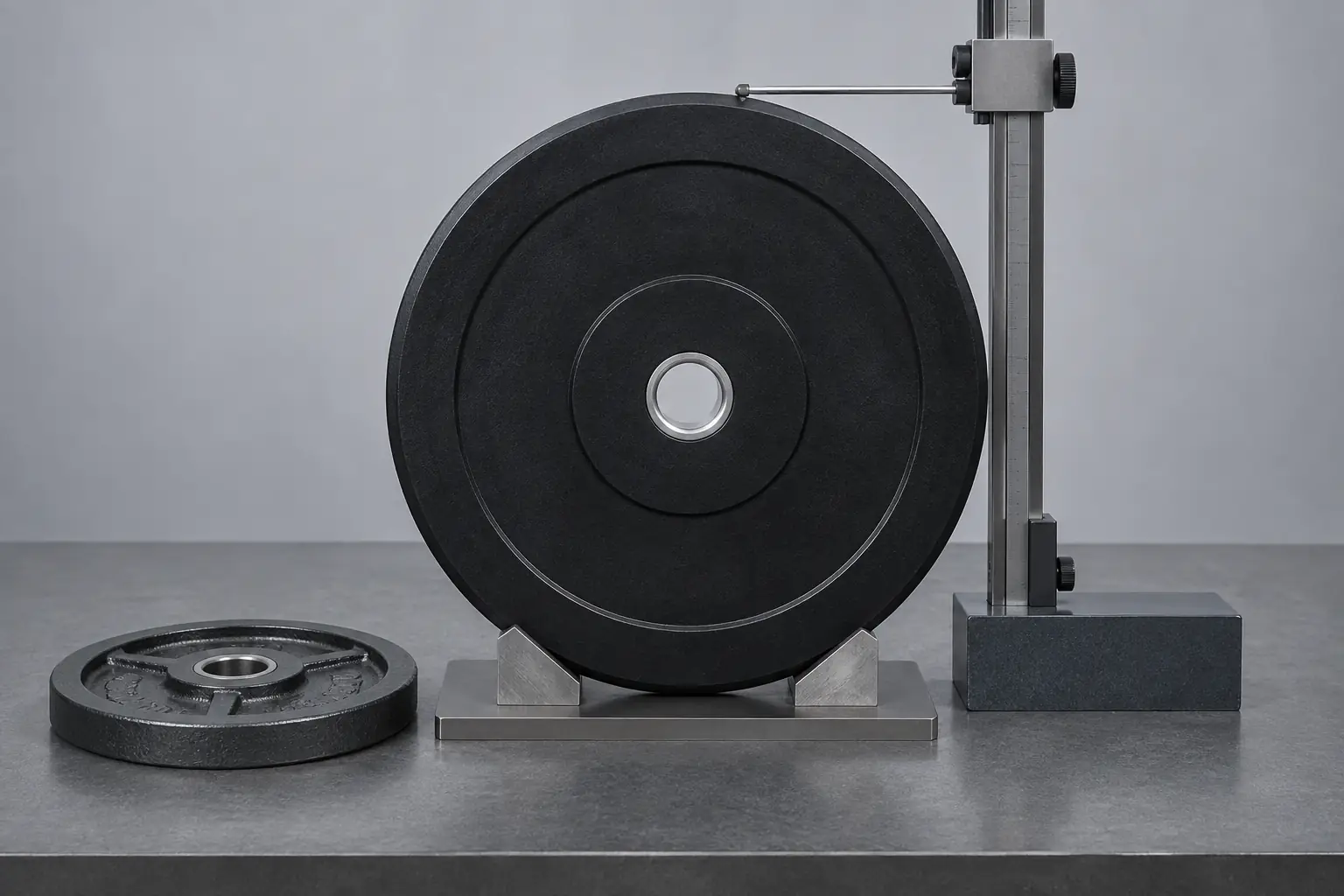

Select samples at the light, middle and heavy positions and at every point where the mould, core, grip pattern, hub or diameter changes. Place the plate on a verified flat surface, measure the agreed axes, inspect the rim and confirm that paired plates sit as intended. Keep the accepted sample or a controlled dimensional record.
Thin full-size light discs deserve special attention because geometry alone does not establish drop suitability. Ask for the permitted-use statement for each denomination. If a mixed stack may contact the floor, confirm the configuration with the relevant plate, bar and platform instructions rather than assuming equal outside diameter makes every combination safe.
Turn incoming inspection into a receiving decision
At receipt, identify cartons and SKU revisions before sampling. Check outside diameter in the agreed directions, obvious out-of-round condition, damaged or rolled rims, hub centring, face wobble on a flat reference, pair consistency and fit on the intended storage or equipment interface. Record the instrument, unit and sample identity.
Mass, bore fit, thickness and rebound belong to their own checks; passing one does not release the others. PowerBaseFit can review a factory-feasible inspection package for bulk supply, but sampling quantity, acceptance limits, destination requirements, MOQ and lead time must be confirmed for the actual product mix.
RFQ and receiving checklist
- List use, bar or machine model, floor contact and permitted drop condition
- State denomination, material, nominal outside diameter and tolerance per SKU
- Separate outside diameter, centre-bore diameter and plate thickness
- Define measurement axes, finished surface, rim features and roundness method
- Provide rack, peg, guard, carton and pallet clearance where relevant
- Approve representative samples at each construction or diameter transition
- Freeze logo, colour, marking, mould and packaging revision identity
- Agree sampling, records, disposition and reapproval triggers before production
Continue the plate specification
- Browse commercial weight plates
- Review rubber bumper plates
- Compare cast-iron plates
- Specify plate-to-sleeve fit
- Control plate mass tolerance
- Calculate bumper thickness and sleeve capacity
- Plan pre-shipment inspection
- Send the plate range for review
Frequently Asked Questions
Do all bumper plates have the same outside diameter?
Many full-size ranges use a common outer envelope, but lighter, technique or model-specific discs can differ. Confirm every offered SKU on the drawing.
Is a 50 mm centre hole the same as a 450 mm plate diameter?
No. The centre bore relates to the bar sleeve; outside diameter describes the plate's overall envelope and floor height.
Does 450 mm mean a plate is competition approved?
No. One dimension does not establish approval, weight accuracy, materials, colour, thickness or any other rule requirement.
Can different-diameter plates be used on one bar?
They may fit the same sleeve, but floor contact, permitted dropping, loading order and manufacturer instructions must be reviewed for the intended use.
How should outside diameter be inspected?
Define the finished surfaces and axes, use a suitable verified instrument or fixture, and record out-of-round, rim and pair observations with the result.
Can PowerBaseFit supply custom-logo weight plates?
PowerBaseFit reviews OEM, ODM, custom-logo, private-label and bulk projects by model, artwork, mould, sample, quantity, inspection and packaging requirements.
Review a measurable plate range
Send intended use, denominations, bar or machine interface, diameter family, logo and packaging needs. Our factory team will review a model-specific bulk specification without assuming a universal minimum or tolerance. Request a plate specification review.
