Quick answer: identify what is moving before judging the plate
A metal center ring that rotates, rocks or separates from the resilient body is not the same condition as normal plate movement on a bar sleeve. First isolate the plate, clean it without forcing the hub, mark the hub-to-body relationship and observe whether the metal moves relative to the rubber or urethane. Record axial movement, radial movement, rotation, gaps, cracks, noise and any loose fastener separately.
For a bulk purchase, define the proposed hub construction, retention route, finished bore, inspection method and post-drop observations before production. ChinaFreeWeight can review OEM, ODM, Custom Logo, Private Label and Bulk Supply requirements model by model; no single retention design or drop count proves every plate.
Separate insert retention from center-hole fit
Center-hole fit describes the interface between the finished bore and the bar sleeve. Insert retention describes the connection between the metal component and the plate body. A bore can fit correctly while the insert is loose, and a securely retained insert can still have the wrong finished size, burr or tilt.
Write separate acceptance lines for bore diameter, roundness, concentricity, edge condition, hub seating, relative movement and any face fasteners. This prevents a supplier from answering a retention concern with only a caliper reading.
Match the inspection to the actual hub construction

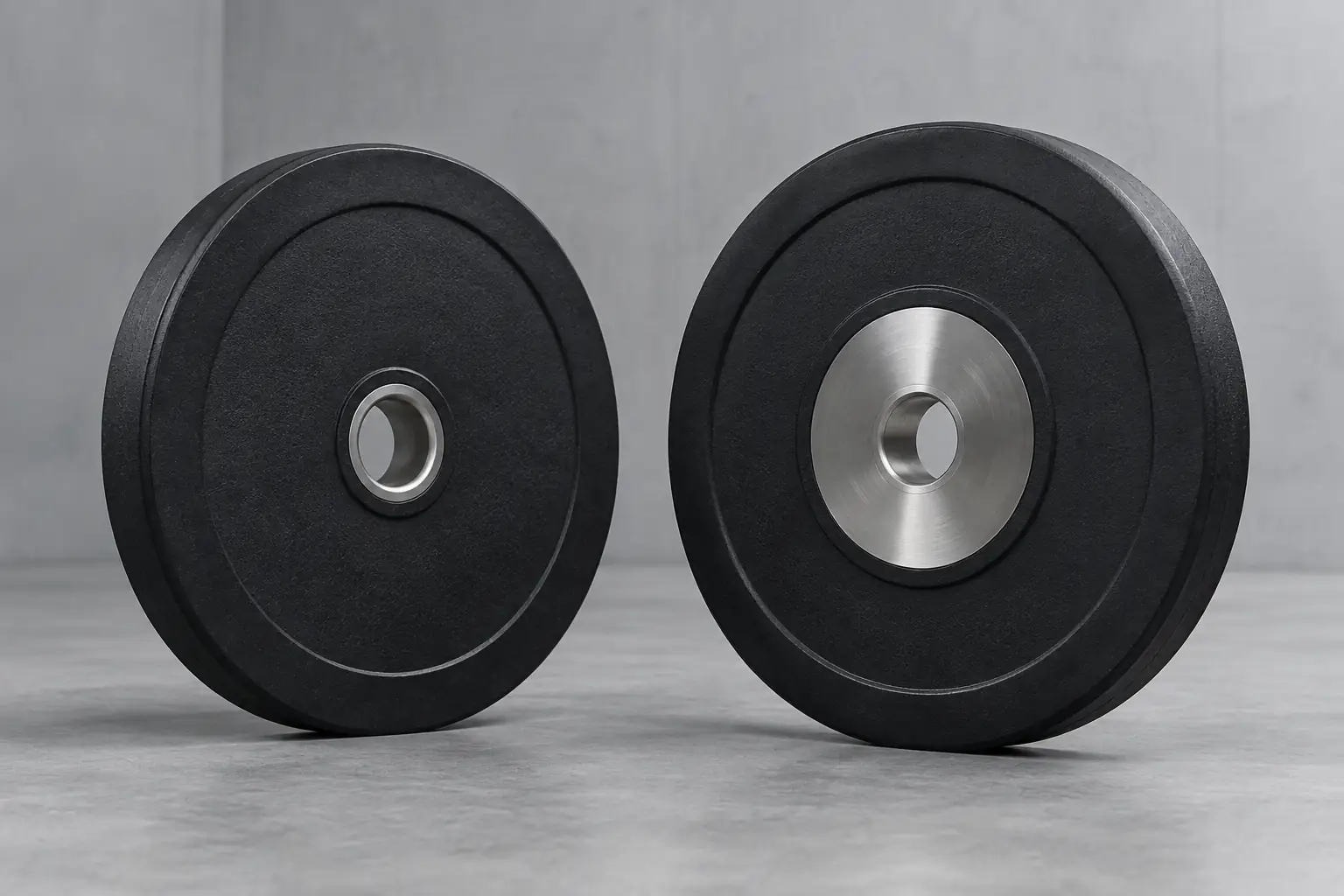

Training bumpers may use a narrow molded-in or bonded ring. Crumb-rubber plates may use a recessed insert that is protected from face-to-face contact. Competition-style plates may use a broad multi-part hub with visible fasteners. These architectures transfer impact and restrain metal in different ways.
Ask for a section drawing or construction description for the quoted model, including insert material, surface preparation, bonding system, mechanical features, molding route and replaceable fasteners where present. Do not infer internal retention from the visible hub diameter alone.
Approve light, middle and heavy representatives
One convenient plate cannot represent a complete range. Thin, light plates may flex differently, while heavier plates change body thickness, hub support and handling. Select light, middle and heavy denominations plus every change in hub, compound, mold, color or fastener layout.
Record the sample code, product revision, actual weight, body thickness, bore, hub position, surface, logo and packaging. Photograph both faces under fixed lighting, mark the hub orientation and retain the physical reference when practical. A marketing sample made by another route must be labelled with its limits.
Bumper plate hub and insert specification table
| Control line | What to define | Evidence to retain |
|---|---|---|
| Hub architecture | Narrow ring, recessed insert or multi-part hub | Drawing and construction description |
| Retention route | Bond, mechanical feature and assembly details | Process record and approved sample |
| Finished bore | Diameter, roundness, concentricity and edges | Dimensional report |
| Hub seating | Position, tilt, gaps and face symmetry | Photos and measurements |
| Relative movement | Rotation, axial and radial observation method | Marked sample and inspection record |
| Drop review | Setup, intervals, stop signs and observations | Written protocol and results |
| Fasteners | Type, retention and inspection access where used | Assembly revision and check record |
| Packing and identity | Protection, SKU, lot and carton trace | Pack sample and traceability record |
Define a controlled handling and drop review
If plates are intended for dropping, agree the bar, collars, load combination, platform, release condition, repetitions, inspection intervals and stop conditions. Inspect the hub before the sequence, at planned intervals and after completion. Compare both faces for gaps, rotation, tilt, pull-through, fastener movement, rubber tearing and changes in sound.
ASTM D429 covers laboratory methods for rubber adhesion to rigid substrates, but a coupon result is not automatically a finished bumper-plate retention test. Current IWF rules define competition equipment dimensions and use; they do not create a universal hub-retention cycle for every commercial plate. Keep each piece of evidence inside its actual scope.
Inspect the production lot without destructive improvisation
Receiving and pre-shipment checks should begin with identity, carton condition and visual comparison to the approved sample. On the agreed sample, inspect bore condition, seating, face symmetry, gaps, corrosion, loose hardware and relative movement using the written method. Do not pry, hammer, glue or dismantle a saleable plate unless the approved plan specifically requires a destructive sample.
Link every observation to SKU, lot, mold or production period and carton. If movement appears, hold the affected units, compare nearby samples and trace material, insert preparation, molding and assembly records before deciding whether to sort, rework or reject.
Protect the hub through branding, packing and change control
A custom logo, molded lettering or hub decal must not hide the rubber-to-metal boundary, cover fasteners or reduce access to inspection surfaces. Approve artwork together with hub construction, weight marking and denomination layout.
Packing should stop dense plates from moving, rubbing or striking hub faces. Recessed designs still need separators and carton restraint appropriate to the ordered range. Require notice before changing the insert, metal finish, preparation, adhesive system, compound, mold, cure route, fastener or protective packaging, then decide which approvals must be repeated.
Build the RFQ around evidence and decisions
Send plate type, denominations, quantities, intended use, whether dropping is allowed, body material, hub description, finished bore, retention evidence, sampling plan, logo, color, packaging and destination. Ask the factory to list any differences by denomination and to identify which records will accompany the lot.
The quotation should keep product, tooling, sample, packaging and inspection scope visible. MOQ, price and timing remain project-specific. A useful acceptance plan states who checks what, with which method, on which samples and what happens when a result falls outside the agreed rule.
Ten-point buyer checklist
- Identify the exact hub construction for every denomination.
- Separate bore fit from insert-to-body retention.
- Approve light, middle and heavy production-equivalent samples.
- Record hub orientation, seating and both plate faces.
- Define relative-movement checks before inspection.
- Write the intended drop or handling review in full.
- Keep coupon and finished-product evidence in their proper scopes.
- Protect hub faces and plate bodies in packing.
- Control logo, compound, insert, mold and fastener changes.
- Link every result to SKU, lot and carton identity.
Continue the bumper-plate buying process
- Verify plate-to-bar fit
- Compare bounce and drop evidence
- Plan sleeve loading capacity
- Review coating and body separation
- Check weight tolerance
- Compare training and competition plates
- Plan pre-shipment inspection
- OEM and private-label options
- Send the bumper-plate specification
Frequently Asked Questions About Bumper Plate Hubs
Why do bumper plate inserts come loose?
Possible causes include contamination, weak or inconsistent bonding, insufficient mechanical retention, molding variation, impact at the hub or use outside the intended conditions. The cause must be investigated for the actual model.
Is a spinning center ring always normal?
No. First distinguish normal plate movement on the sleeve from metal moving relative to the plate body. Relative rotation, rocking or separation requires isolation and model-specific assessment.
Is a larger hub always stronger?
No. Visible size alone does not reveal material, internal geometry, bonding, fastener design or load path. Compare the complete construction and evidence.
Which plate weights should be sampled?
Use light, middle and heavy representatives and add every denomination where hub, thickness, compound, mold or fastener layout changes.
Does a drop count prove hub durability?
Only within the defined setup, load, platform, release, intervals and acceptance rules. A number copied without its method is not transferable evidence.
Can a loose bumper plate insert be repaired at the gym?
Do not improvise a repair and return the plate to drop use. Isolate it and follow the manufacturer's assessment and replacement instructions.
Can the hub carry a custom logo?
Sometimes, if the model and process allow it. Branding must not cover fasteners, inspection boundaries or required markings and should be approved on the finished sample.
Send a controlled bumper-plate RFQ
Share denominations, intended use, hub construction, bore requirements, retention evidence, sampling, branding, packaging, quantities and destination. ChinaFreeWeight can review OEM, ODM, Custom Logo, Private Label and Bulk Supply options without inventing a universal pass rule. Discuss your bumper plate program.
