Start with the plates, not the rack photograph
A commercial plate rack should be specified from the actual plate schedule: bore, finished outside diameter, thickness by denomination, piece count, material, grip profile and training zone. A rack advertised for Olympic plates may still have too little usable peg length, too little clearance between levels or the wrong layout for a mixed set of thin iron plates and thick bumpers.
Build a storage map before requesting quotations. Assign frequently used plates to accessible positions, keep heavy loads low where the approved rack design allows, and reserve a separate tray or short peg for change plates when large plates would hide them. The result must remain within the rack maker's stated use and installation instructions.
Choose a storage architecture for the operating zone

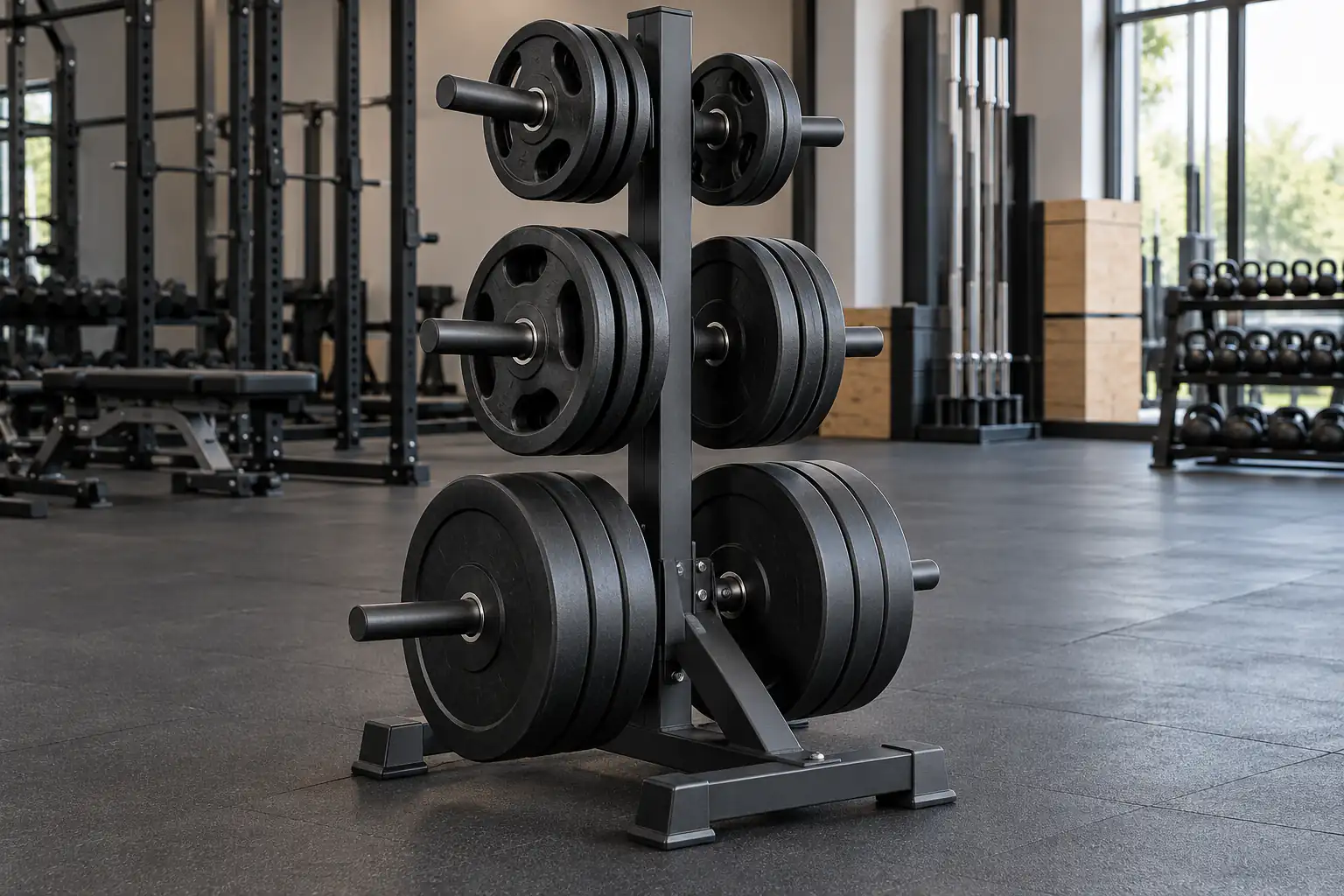

A freestanding tree uses little floor area and sorts plates across several horns. A low slot rack makes the faces of thick bumper plates visible and avoids sliding a full stack off one peg. Rack-mounted horns save a separate footprint but must match the exact upright, hole pattern, hardware and permitted mounting position. Wall storage transfers the load into the wall and fixings, so it needs a verified substrate and installation plan.
Do not treat these formats as interchangeable. A mobile rack is useful only when its wheels, brakes, route and loaded-movement instructions support the intended use. Storage integrated into a power rack can interfere with spotter arms, cable paths, benches or lifting clearance. Mock up the largest plate envelope and the user's hand path around the real station.
Check peg fit and usable length separately
Check peg fit and usable length separately
Nominal 50 mm or two-inch language identifies a product family, not the finished fit of every plate on every storage horn. Record the finished plate bore and the peg's outside diameter, protective sleeve, end shape and permitted clearance. A plate should load and unload without binding, excessive tilt or damage to its hub, while any stop or retaining feature must remain usable.
Usable length is the straight supported distance available to the plates, not the full metal projection or the dimension hidden inside a bracket. Add the accepted maximum thickness of every plate assigned to that position, then leave the access and retention margin required by the rack instructions. Repeat the calculation for each peg because the storage mix is rarely symmetrical.
Verify clearance, capacity and stability as one system
Verify clearance, capacity and stability as one system
Plate diameter and peg spacing decide whether neighbouring stacks overlap. Plate thickness decides how many pieces fit. Individual-peg and whole-rack ratings decide whether that geometry is allowed. Keep these three checks together; fitting six plates on a horn does not prove that the horn, frame, floor or mounting is rated for their combined mass.
Review the worst credible loading pattern, including an uneven condition while users remove plates from one side. Confirm base footprint, feet, anchoring or ballast requirements, floor condition and required levelness from the responsible equipment supplier. OSHA's general storage rule is a useful U.S. reference for keeping stored material stable and passageways clear, but it does not supply a gym-rack capacity.
Storage format decision matrix
| Format | Best fit | Verify before approval |
|---|---|---|
| Freestanding plate tree | Mixed iron or grip plates near one zone | Peg spacing, base, uneven loading, total rating |
| Low slot rack | Thick bumper plates and visible separation | Slot width, total length, wheels or feet, hand access |
| Rack-mounted horns | Plates assigned to one compatible rack | Upright and hole pattern, hardware, training clearance |
| Wall-mounted pegs | Fixed layout with verified structure | Wall substrate, fixings, cantilever load, installation |
| Mobile trolley | Shared zones with an approved movement plan | Loaded-movement permission, wheel rating, brakes, route |
| Change-plate tray | Small denominations that need quick visibility | Compartment width, labels, reach and piece count |
Design for handling and housekeeping
Design for handling and housekeeping
Place high-turnover denominations near the bar or machine they serve without narrowing the lifting lane. Check whether a user can see the weight marking, separate two plates, reach a grip opening and withdraw one piece without scraping a neighbour. Small plates should not be trapped behind large discs or placed where staff must lift them over shoulder height.
Plan the full route from rack to bar, including benches, platforms, columns, doors and cleaning equipment. The storage unit should not become a trip point or collect loose collars and accessories in an unapproved location. A clear return pattern supports faster re-racking, but labels and color coding should supplement a safe physical layout rather than compensate for poor access.
Write the RFQ around evidence and change control
Write the RFQ around evidence and change control
Send the supplier a plate-by-plate schedule, proposed allocation, bore and thickness data, maximum stored mass, facility layout and preferred storage format. Request dimensioned drawings, usable lengths, peg and total ratings, installation instructions, hardware list, finish, protective contact material, packaging and inspection points. Model-specific values belong in the quotation; do not copy a competitor's capacity into a new design.
For OEM or ODM development, define the controlled frame, welds, fasteners, peg sleeves, feet, wheels or anchors and coating. Custom Logo and Private Label changes must not cover rating, model or installation identification. For Bulk Supply, connect each rack revision to the compatible plate range and require notice before structural or mounting changes.
Inspect the delivered rack with the approved plate set
Inspect the delivered rack with the approved plate set
At receipt, reconcile model, revision, quantity, cartons and hardware before assembly. Inspect tubes, welds, fastener holes, pegs, sleeves, feet, wheels, coating and transit damage. Assemble on the intended level surface according to the supplied instructions, torque or secure fasteners as specified by the responsible manufacturer and keep the manual with the facility record.
Use representative thin and thick plates to confirm fit, full-face support, hand clearance and removal from every position. Load only within the declared configuration and rating. Quarantine a rack with deformation, cracked welds, loose structural joints, damaged anchors, uncontrolled movement or missing identification; appearance alone is not an acceptance test.
Buyer checklist for a plate-storage order
- List every plate model, denomination and piece count.
- Record finished bore, outside diameter and maximum thickness.
- Allocate plates to each peg, slot or tray.
- Confirm usable length rather than total projection.
- Check adjacent-plate and hand clearance.
- Obtain per-peg and whole-system ratings.
- Approve installation, anchoring and floor requirements.
- Keep aisles and lifting zones unobstructed.
- Freeze model, hardware, finish and protective sleeves.
- Inspect the assembled rack with representative plates.
Continue planning the plate system
- Browse commercial weight plates
- Compare weight plates and bumper plates
- Check plate outside diameter
- Check plate thickness and sleeve capacity
- Review plate grip openings
- Review plate edges and handling
- Plan export packaging
- Discuss a storage-ready plate program
Weight Plate Storage FAQ
Will every Olympic plate fit a 50 mm storage peg?
Not automatically. Compare the finished bore with the finished peg, sleeve and end geometry, then verify the actual plate on the identified rack.
How many bumper plates fit on one storage horn?
Divide usable supported length by the accepted plate thickness only after reserving the required access or retention margin, then confirm the peg and rack ratings.
Is a plate tree better than a slot rack?
Neither is universally better. Trees can be compact for thin plates; low slots often make thick bumpers easier to see and separate.
Can storage pegs from one power rack fit another?
Do not assume so. Upright size, hole diameter, spacing, bracket shape, hardware and approved mounting positions can differ.
Can ChinaFreeWeight supply matching plates and storage?
ChinaFreeWeight is a factory and can review OEM, ODM, Custom Logo, Private Label and Bulk Supply requirements by model. Final storage feasibility and values are confirmed from the selected configuration.
