Direct answer: treat every hand-contact edge as a controlled feature

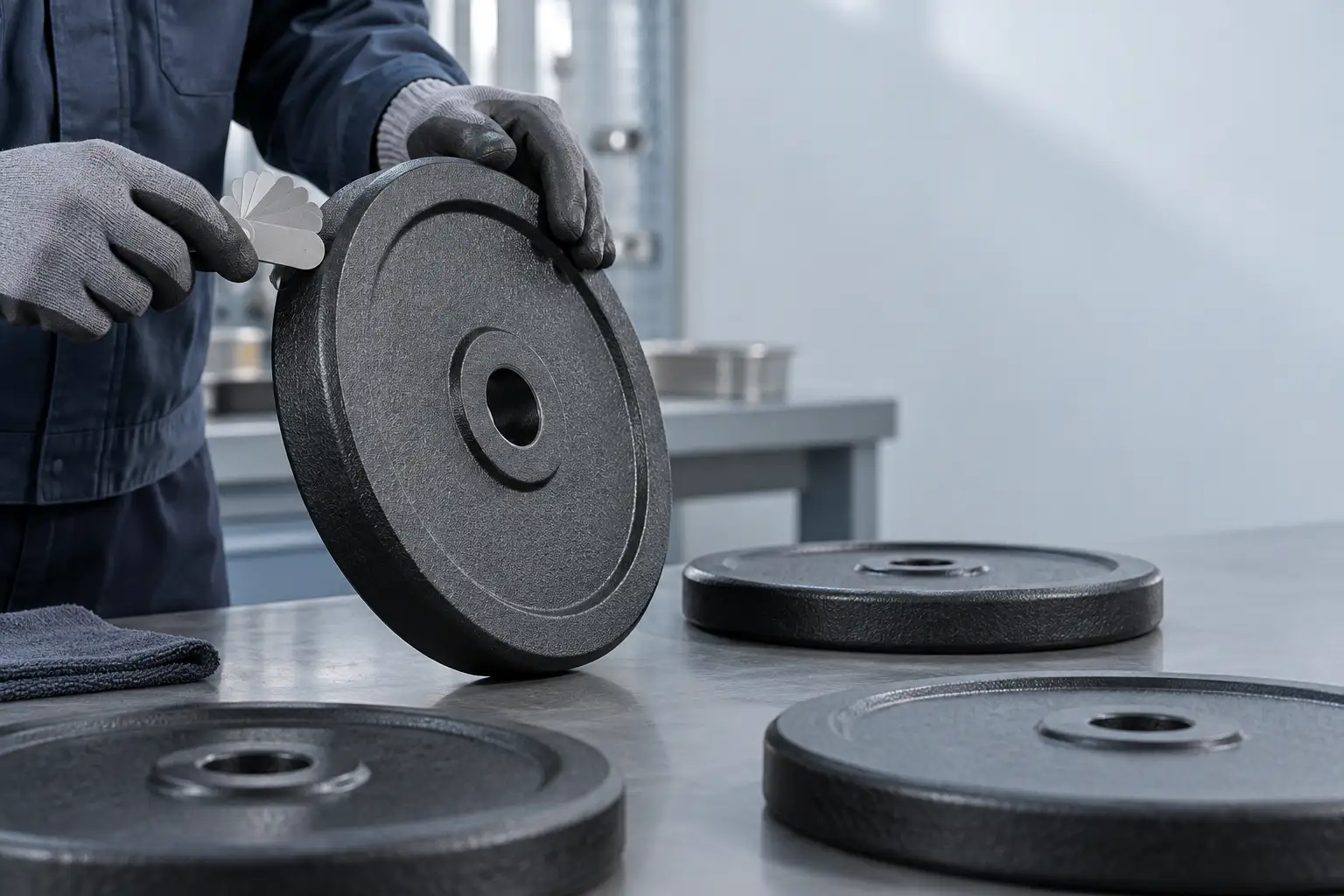

A weight plate should not be approved from diameter, mass and finish alone. The outer rim, lifting lip, grip openings, face transitions and entrance to the centre hole all need an agreed finished condition. Name where a radius, chamfer or smooth blend is required, where a crisp edge is functional, and how burrs, flash and coating build-up will be judged.
ChinaFreeWeight supports OEM, ODM, Custom Logo, Private Label and Bulk Supply programs as a factory partner. For a selected plate model, we can link the drawing, finished sample, edge references, packing method and receiving checklist without claiming that one edge profile suits every plate family.
Separate the lifting problem from the outside-diameter drawing
Outside diameter controls bar height, floor contact and equipment clearance. Edge geometry answers a different question: can a person reach, separate and control the plate in its actual storage position? A thin steel disc, a deep-dish casting, a rubber grip plate and a bumper plate can share a nominal diameter while presenting very different contact areas.
Map the expected handling moments before choosing a profile. Include lifting a plate from the floor, separating two nested faces, removing it from a loaded sleeve, carrying it to a storage peg and returning it between neighbouring plates. The drawing should identify the outer corner, face relief, usable lip depth and any grip opening rather than rely on a photograph labelled ergonomic.
Put radius, chamfer, burr direction and finish on the released specification
Put radius, chamfer, burr direction and finish on the released specification
ISO 13715 gives technical-product-documentation rules for edges of undefined shape, while a geometrically defined edge can be dimensioned under general drawing practice. It does not prescribe a universal gym-plate radius. The practical lesson is to stop using vague notes such as break all edges when a particular location affects handling or bar contact.
Define the finished feature after machining, moulding, grinding and coating. A metal edge can gain a burr from machining; a moulded part can retain flash; a coating can soften a corner or create a hard ridge at a parting line. State which side of a hole or rim is inspected, the permitted condition, the comparison method and whether appearance and touch are separate acceptance points.
Use contact-risk guidance without turning it into a product certification
Use contact-risk guidance without turning it into a product certification
OSHA material-handling guidance identifies sharp or rough edges as a reason for hand and forearm protection, and its ergonomics material lists contact with hard or sharp edges as a pressure risk. Those sources support careful product and work design; they do not certify a plate or set a universal pass value.
A receiving check should therefore combine visual inspection, controlled touch and the intended handling sequence. Inspectors should not drag an unprotected hand along an unknown edge. If an edge can snag a cloth, cut packaging, mark a sleeve or create concentrated hand pressure, isolate the sample and compare it with the released drawing and retained reference before deciding disposition.
Edge and handling decision matrix
| Feature | Buyer decision | Evidence to retain |
|---|---|---|
| Outer rim | Radius, chamfer or blend by SKU | Drawing callout and close-up reference |
| Grip lip | Reach, separation and usable contact zone | Finished sample in floor, stack and sleeve positions |
| Centre-hole entrance | Lead-in and burr condition without changing fit | Bore drawing and mating-bar check |
| Grip opening | Clearance and all finished contact edges | Opening profile and both-face photographs |
| Raised artwork | Keep hard features away from the hand path | Approved artwork and physical sample |
| Packing | Prevent edge impact, rubbing and carton breakthrough | Packing specification and arrival record |
Approve the whole weight ladder, not one display plate
Approve the whole weight ladder, not one display plate
A heavy denomination may have a deep lip that is easy to grasp, while a light plate from the same family can be nearly flat. Mould cavities, machining routes, core thickness and coating flow can also change by size. Review representative light, middle and heavy SKUs and record any intentional profile break in the range.
Custom artwork must stay outside the functional contact zone unless the design review proves otherwise. Raised lettering, colour inserts and metal badges can reduce finger space or create a new hard edge. Freeze the logo revision with the edge drawing and finished sample so a branding change does not silently alter handling or stacking.
Pack plates so the approved edge arrives unchanged
Pack plates so the approved edge arrives unchanged
Edges and lips are exposed during carton movement. Plate-to-plate rubbing can chip a painted rim, polish a rubber contact band or transfer debris into grip recesses. Agree separators, face orientation, carton restraint and pallet protection for the actual mass mix, then open samples from different pallet positions rather than inspecting only the top carton.
At receiving, compare edge condition before and after unpacking. Distinguish a manufacturing burr from transit impact, abrasion or coating damage. Record the model, denomination, carton and defect location on both faces; a generic photo of a stack is not enough to trace a repeated edge failure.
Turn the approved sample into a repeatable lot decision
Turn the approved sample into a repeatable lot decision
The release plan should cover identity, outer rim, lifting lip, centre-hole entrance, grip openings, face relief, stacking contact, finish continuity and transport damage. Sample across denominations, production periods or cavities and cartons. Keep any touch assessment tied to named people, a retained master and a defined handling step rather than an unsupported comfort score.
Send ChinaFreeWeight the plate family, weight ladder, use case, storage layout, edge drawing, logo files, finish and packing route. We can review an OEM or ODM quotation around the features that matter, prepare a finished-sample approval plan and align the Bulk Supply inspection record with the Private Label configuration.
Ten checks before bulk release
- Identify each denomination and the applicable drawing revision.
- Confirm the outer rim profile on both faces.
- Check that the lifting lip remains reachable in the real stack.
- Inspect the centre-hole entrance without confusing it with bore size.
- Review every grip-opening edge from both sides.
- Look for machining burrs, mould flash and hard coating ridges.
- Confirm raised marks and logos do not enter the agreed hand path.
- Repeat handling checks on light, middle and heavy SKUs.
- Open cartons from more than one pallet position for transit evidence.
- Record deviations by model, weight, carton, face and location.
Continue the plate specification
- View a cast-iron weight plate
- Browse commercial weight plates
- Control outside diameter and profile
- Check plate-to-sleeve fit
- Specify grip openings
- Plan pre-shipment inspection
- Send the plate brief
Frequently Asked Questions About Plate Edges and Grip Rims
Should every weight plate have a rounded outer edge?
No. The appropriate profile depends on construction, use, stacking and handling. The requirement is a defined, finished and repeatable edge without uncontrolled burrs or flash.
Is a deeper rim always easier to handle?
Not always. It may improve finger access, but plate thickness, neighbouring plates, rack spacing, hand size and the actual lifting direction also matter.
Can a chamfer at the centre hole solve a tight plate fit?
A lead-in can help loading, but tight fit must be diagnosed through bore size, sleeve size, roundness, alignment, coating and burr condition. Do not enlarge the hole informally.
How can an inspector check for sharp edges safely?
Start with visual and raking-light inspection, compare the released sample and use the agreed safe procedure. Do not run an unprotected hand along an unknown edge.
When should an edge change trigger a new sample?
Review changes to the pattern, mould, machining, grinding, coating, artwork, material or supplier route because each can alter a contact edge or lifting lip.
