Quick answer for buyers
A bar that flexes under load and returns is not the same as a permanently bent shaft. A sleeve that has a little assembly clearance is also not automatically evidence that the shaft is crooked. Buyers should separate four observations: shaft straightness, shaft runout while the bar rotates, sleeve radial or axial movement, and sleeve rotation quality. Each needs a defined support, measurement point and acceptance rule.
Rolling a bar on a clean flat surface is useful for triage, but it is not a complete bulk-acceptance method. Sleeves rotate independently, knurling changes contact, and an uneven floor can create a false impression. For an OEM, ODM, custom-logo, private-label or bulk order, approve a production-equivalent sample and write the actual measuring setup into the purchase specification before shipment.
Straightness, runout, play and spin are different
Static straightness describes the shaft axis when the bar is unloaded and supported in a defined way. Radial runout is the change shown at a measuring point during one complete rotation; the total indicated reading is the highest value minus the lowest. Sleeve face runout concerns a flange or end face, while sleeve play is movement between assembled parts. Spin describes how the sleeve rotates, including smoothness, noise and stopping behaviour.
These observations can interact without sharing one cause. A straight shaft can be paired with an eccentric sleeve component. A serviceable bushing bar can have a different feel from a bearing bar. Dirt, dried lubricant or moisture can affect rotation without bending the steel. Write each requirement separately so a supplier cannot substitute a spin video for a shaft measurement or a floor-roll video for assembly inspection.
Use a repeatable shaft runout setup

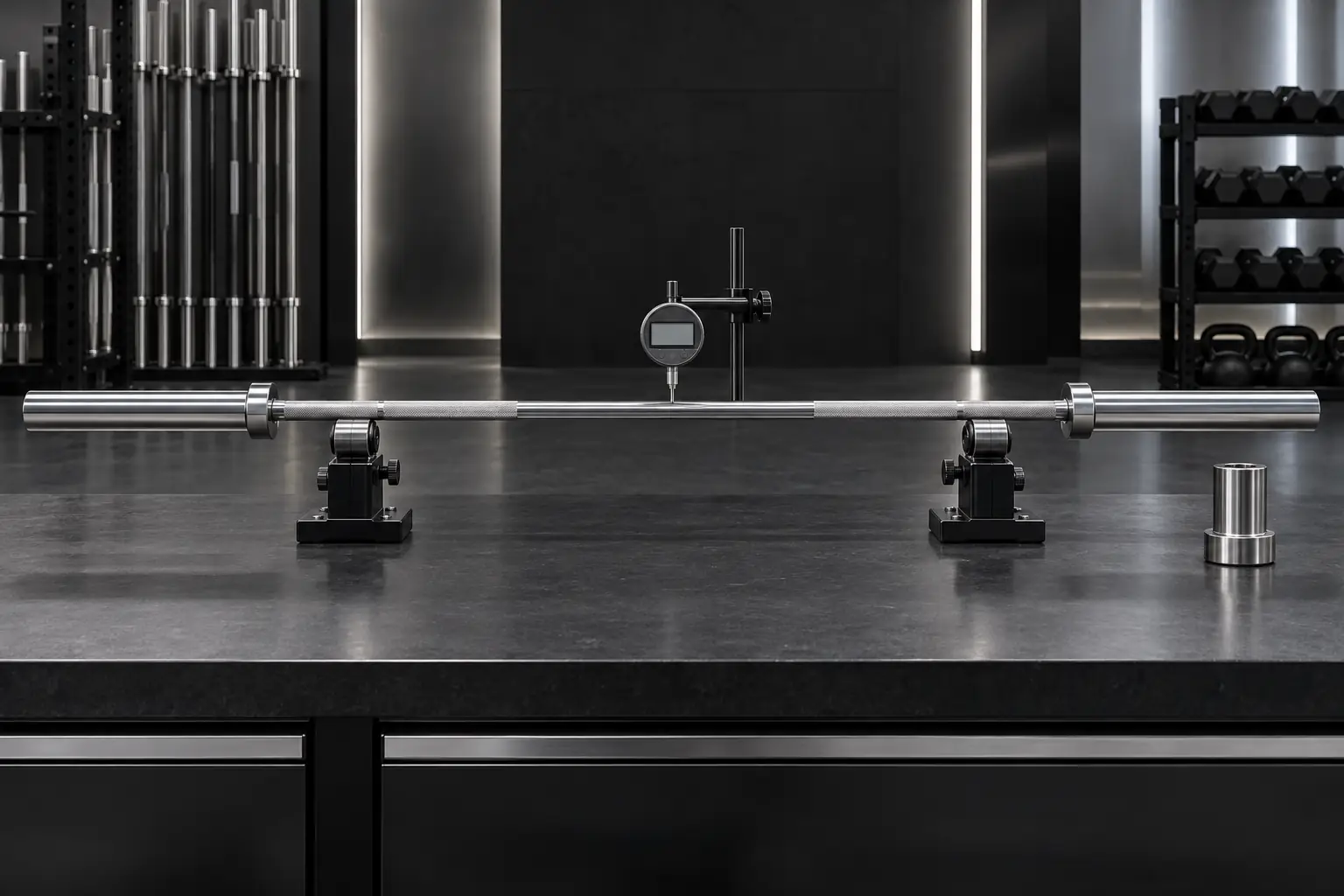

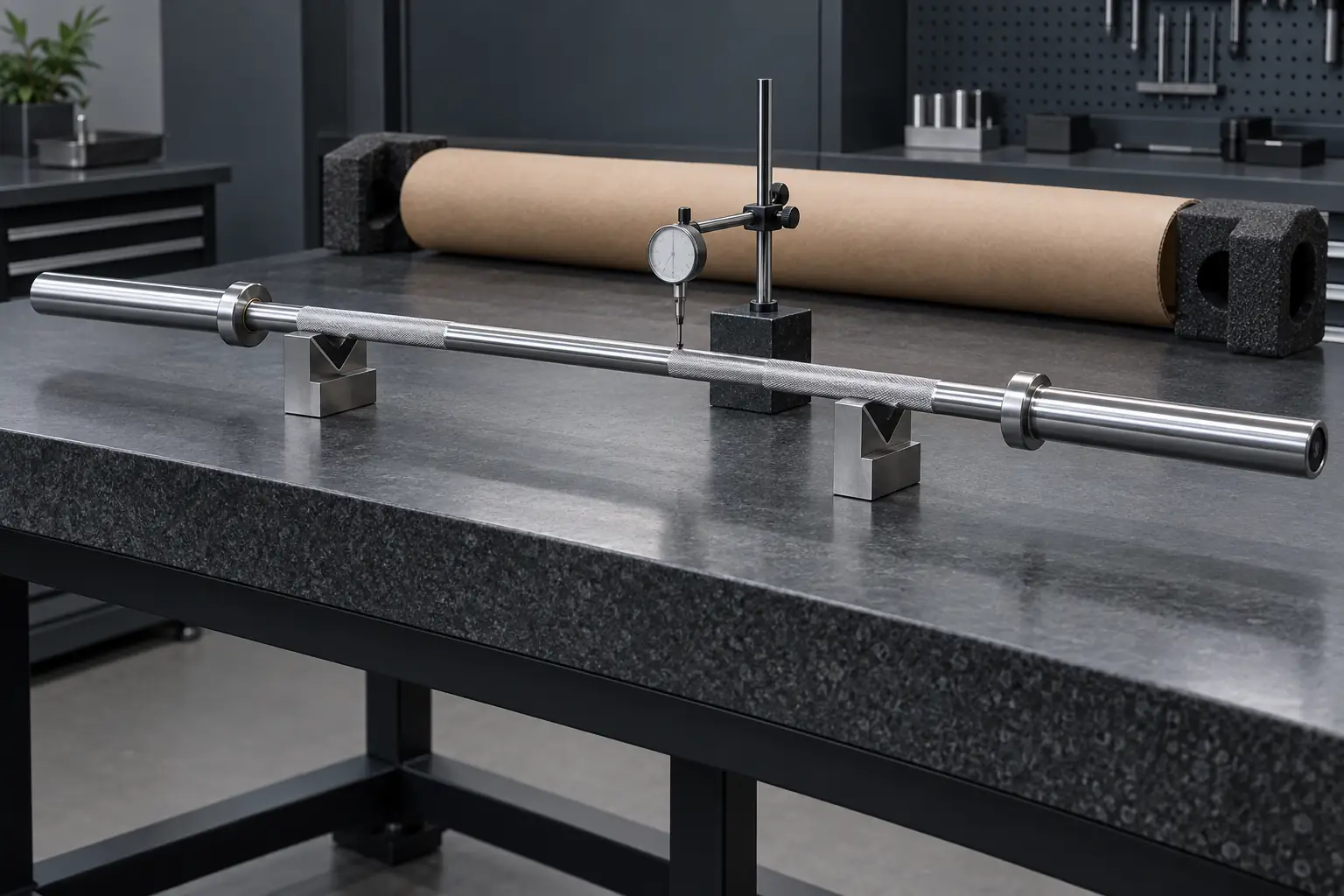

Begin with an identified, unloaded bar at stable room conditions. Clean the chosen support and contact zones. Support the bar on defined smooth cylindrical areas or on an agreed fixture that lets it rotate without sliding. Mount an indicator rigidly, place its contact point normal to the surface, apply suitable preload, zero it and rotate the bar slowly through a full turn. Record the maximum, minimum, total movement, measurement location, support location, instrument resolution and bar serial or batch reference.
Measure more than one shaft zone when the drawing requires it, and repeat a suspect result after cleaning and reseating the bar. The approved limit must come from the buyer-supplier drawing or purchase order; competition dimensions or a generic internet number do not create a universal straightness tolerance. A factory inspection record should make the result reproducible by the buyer or an independent inspector.
Barbell straightness and sleeve acceptance framework
| Check | Method to define | Decision evidence |
|---|---|---|
| Shaft straightness or runout | Support zones, indicator point, rotation and accepted total reading | Recorded high, low and result by identified bar |
| Sleeve radial movement | Reference surface, measurement zone and applied hand force | Left/right observation or measured comparison |
| Sleeve axial movement | Direction, force and end position | Assembly result against the approved construction |
| Sleeve rotation | Unloaded check plus maker-authorized functional check | Smoothness, friction, noise and retention condition |
| Visible delivery damage | Defined lighting, views and packaging sequence | Dated images tied to carton and bar identity |
| Corrective action | Isolation, recheck, supplier review and disposition | Traceable decision before release to use |
Use rolling and visual checks as receiving triage
At receiving, first photograph the tube, end protection, carton and impact marks. Inspect both sleeve ends, flanges, shaft, snap rings or end caps, finish and knurl transitions. A visibly displaced sleeve, damaged end, abrupt high spot or scraping sound is a reason to isolate the bar before use. Do not attempt to straighten a suspect commercial bar at the gym.
If the supplier authorizes a roll check, use a genuinely flat, clean reference surface and the same procedure for all bars. Observe the shaft and sleeve ends from a fixed point while rotating gently. Treat the result as screening: a high spot can locate a bar for instrumented follow-up, but a smooth roll does not prove every shaft and sleeve requirement. Keep packaging evidence because transit impact and production variation require different corrective actions.
Inspect sleeves without confusing clearance with a bend
Check each sleeve unloaded and then according to the maker's safe service instructions. Observe radial movement, axial movement, flange behaviour, rotation smoothness, unusual friction, noise and whether the retention parts are seated. Compare left and right using the same hand force and the same observation point. Never infer a load rating from how long a sleeve spins.
For production approval, identify the sleeve system, component revision, lubricant, retention method and service access. If a buyer reports wobble, capture a short fixed-camera video and a measured result at an agreed sleeve zone. This helps separate shaft runout, sleeve eccentricity, assembly clearance, retention problems and cosmetic end-cap movement. Any safety-related damage should stay out of service and follow the supplier's instructions.
Control sample approval, bulk inspection and reorders
The golden sample should use the quoted shaft steel route, heat treatment, machining, finish, sleeve construction and packaging. Record its straightness and sleeve results rather than approving appearance alone. During bulk production, sample across different machining periods, assembly stations and cartons. A buyer may request wider checks for a new design or after a process change, but the scope must be agreed before inspection.
Repeat orders should retain the drawing revision, fixture definition, indicator resolution, data sheet, component list, artwork and pack specification. Custom logo or private-label markings belong to traceability: connect the approved logo revision and SKU to the measured bar record. Branding must not cover service points or make left and right components hard to identify. As a factory, ChinaFreeWeight can review OEM or ODM requirements model by model, without promising one limit for every bar.
Prevent transport and use damage from obscuring the evidence
A long dense bar needs packaging that restrains the shaft, protects both ends and prevents the sleeves from becoming impact points. Specify tube or carton construction, internal supports, end clearance, moisture control, labels, pallet position and handling orientation for the actual route. Inspect a packed sample and record changes to foam, caps, board, tube or pallet pattern.
After delivery, store bars unloaded on suitable horizontal or vertical storage and follow the product maker's care instructions. Dropping an unloaded bar, striking a bench or rack, leaving it loaded for long periods, poor storage and unsuitable floors can damage a bar. Receiving evidence should therefore be captured before the equipment enters service, while routine inspection records should separate later wear or misuse from delivery condition.
Receiving checklist for a bulk Olympic bar order
- Match bar, carton, purchase order and approved revision.
- Photograph tube, carton, ends and any impact before unpacking.
- Check sleeves, flanges, shaft, retention parts, finish and markings.
- Keep the bar unloaded and clean the defined support and contact zones.
- Use the agreed fixture, indicator location and instrument resolution.
- Record maximum, minimum and total movement rather than a vague pass note.
- Compare both sleeves for radial play, axial play, rotation and noise.
- Retest suspect results after cleaning and reseating without forcing parts.
- Quarantine impact damage or abnormal movement before the bar enters service.
- Retain measurement, images, carton identity and supplier disposition for reorders.
Continue the Olympic bar purchasing review
- Choose the right commercial Olympic bar
- Specify barbell knurling
- Compare shaft and sleeve finishes
- Verify plate-hole and sleeve fit
- Control the OEM sample approval
- Plan pre-shipment inspection
- Review export packaging
- Send a barbell inquiry
Frequently Asked Questions: Olympic Barbell Inspection
How can I tell if an Olympic barbell is bent?
Use a roll or fixed-view observation only for screening, then confirm a suspect bar with the agreed supported indicator method. Compare the measured result with the purchase specification rather than an invented universal limit.
Is a little sleeve wobble always a defect?
No. Some movement can come from assembly clearance, sleeve components or a moving end cap. The buyer must define the observation point, force and accepted result for the exact construction.
Does a long sleeve spin prove good bearings?
No. Spin time alone does not prove alignment, lubrication, load performance, retention or durability. Check smoothness and condition using the manufacturer's instructions.
Can I check straightness by rolling the bar on the floor?
It can help identify an obvious high spot on a verified flat surface, but sleeves and knurling can mislead. Use it as triage, not the final purchase-order measurement.
What should an OEM barbell drawing state?
Identify support zones, measurement points, instrument resolution, rotation method, shaft and sleeve criteria, sampling, record format and corrective action.
Can a custom logo affect the inspection?
Branding should not change straightness, but it should be linked to the exact SKU and revision. Keep marks clear of service and measuring areas and approve them on the representative sample.
What should I do with a bar damaged in transit?
Keep it out of service, preserve packaging evidence, document the condition and follow the supplier's inspection and disposition process. Do not improvise a straightening repair at the facility.
