The short answer for buyers
Shore hardness and bumper-plate rebound are related observations, not interchangeable specifications. A Shore A reading measures resistance to indentation under a defined instrument method. It does not by itself prove bounce height, noise, floor protection, insert retention or service life. Compare finished plates with a controlled drop procedure that fixes the bar, load, collars, release, platform, temperature, camera position and acceptance rule.
For an OEM, ODM, custom-logo, private-label or bulk-supply order, state both controls separately. Define how the rubber compound is checked, preferably on a flat representative coupon when the chosen method requires one, and how assembled plates are compared in intended use. Approve representative light, middle and heavy models because thickness and construction can change across the range.
What Shore hardness measures—and what it does not

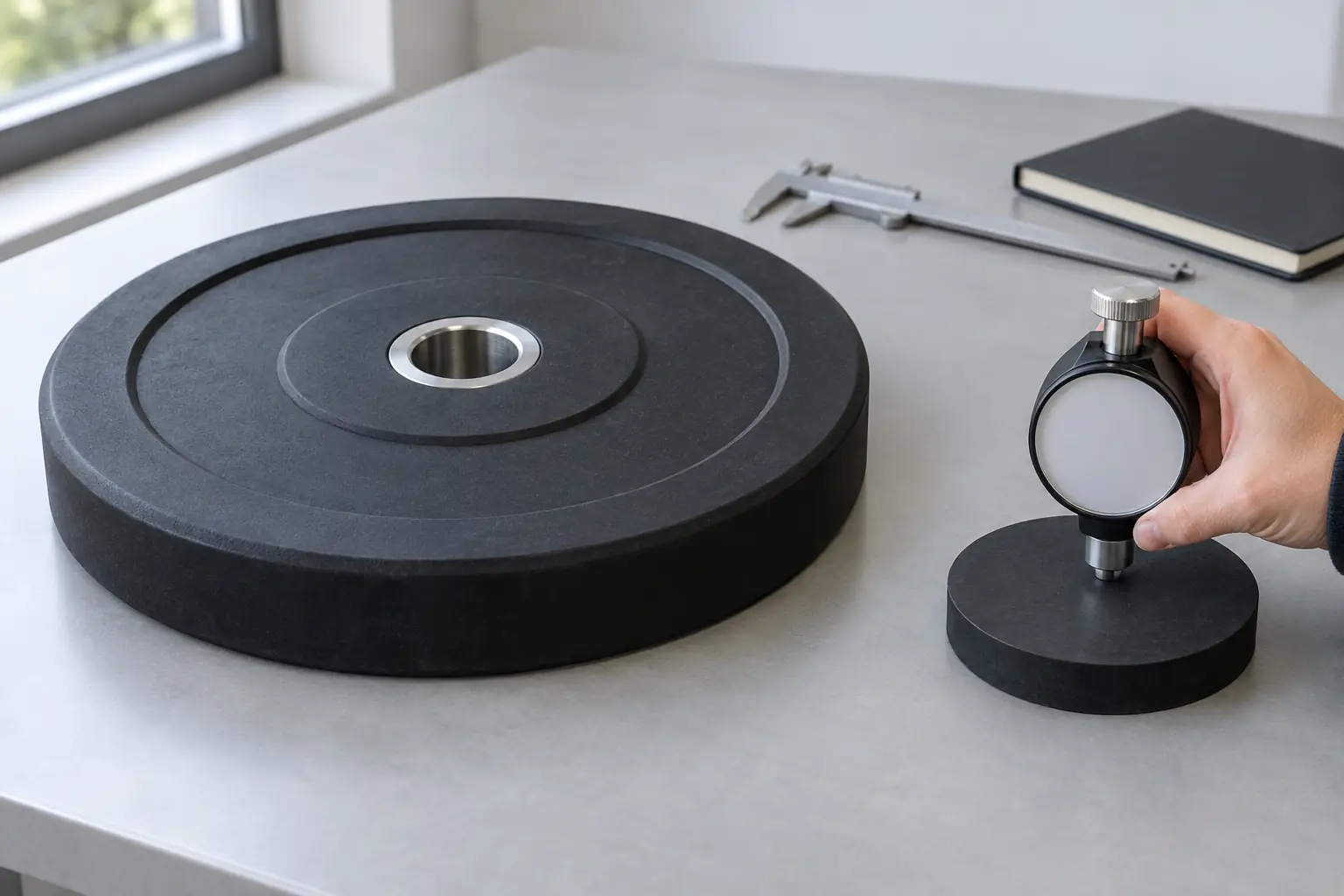

A durometer presses a specified indenter into rubber and reports an empirical indentation-hardness value. ASTM D2240 and ISO 48-4 describe controlled methods and multiple scales; a value is meaningful only with its scale, instrument, specimen, conditioning, contact location and timing. Readings from different scales or from a flat coupon and a curved textured plate should not be merged without a validated comparison.
Within one controlled material system, a higher Shore A result usually describes a firmer indentation response. It is still not a complete material identity. Formulation, density, damping, thickness, hub geometry, cure and temperature can change how a plate behaves after release. Use hardness for compound and process control, then use an assembled-product test for rebound and condition.
Build a rebound comparison that another inspector can repeat

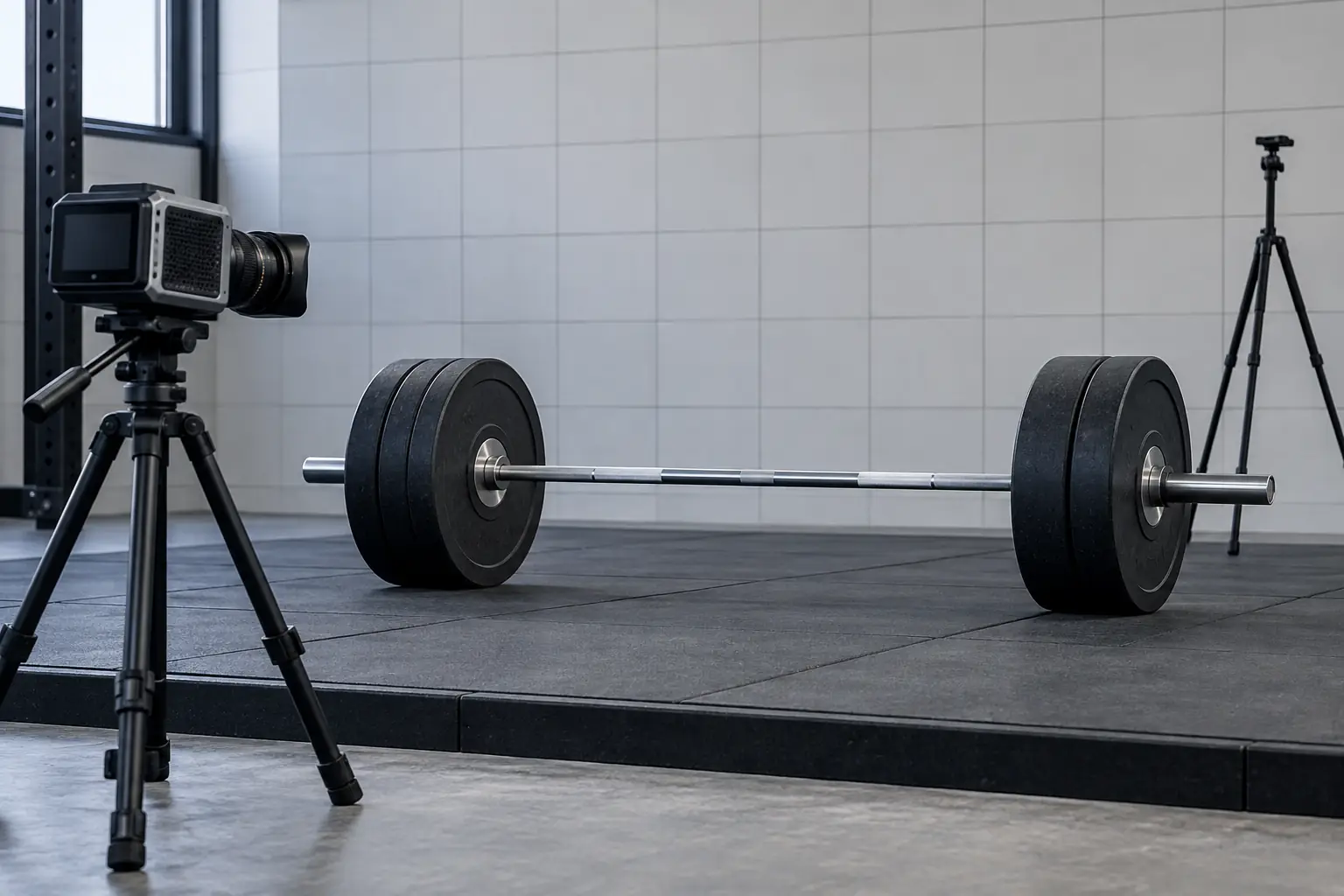

First define the intended event: controlled lowering, planned drops in weightlifting, or a product comparison. Select a platform and underfloor that represent the approved facility setup. Use one identified straight bar, matching collars and a symmetrical load. Record the plate models and weights on each side, total load, release height and release method. Keep the camera perpendicular to the plate edge with a fixed blank reference grid.
Measure the same event on every sample, such as the highest point of the first rebound and any lateral travel, using video reviewed frame by frame. Repeat enough times to reveal variation without presenting an arbitrary cycle count as universal. Stop if the platform, bar, collar, insert or plate shows an unsafe condition. The purchase specification must say whether results are compared with a numeric limit, an approved reference sample or both.
Control weight, temperature and surface before comparing models
A thin light plate dropped alone can bend and contact the floor differently from a heavier or supported plate. Some manufacturers restrict dropping their lightest models alone. Therefore the test schedule must say which denominations are evaluated separately and which are combined with supporting plates. Do not extrapolate one heavy sample across the entire series.
Rubber response can change with conditioning and temperature, while platforms vary in stiffness, joints and wear. Store samples under an agreed condition before testing and record room and product condition rather than comparing a cold delivery sample with a warm showroom reference. Clean the contact surface and keep platform location constant. Noise readings, if required, need their own microphone position and background-noise rule.
Bumper plate hardness and rebound test matrix
| Control | Define before testing | Evidence to retain |
|---|---|---|
| Shore hardness | Scale, instrument, specimen, conditioning, point and timing | Readings linked to compound and sample |
| First rebound | Bar, load, collars, platform, release and camera | Video and repeatable height reference |
| Lateral travel | Start position, camera frame and safe boundary | Path and variation across repeats |
| Post-test condition | Face, rim, insert boundary, flatness and markings | Matched before-and-after views |
| Lot acceptance | Sampling, witness pieces, functional check and disposition | Signed report tied to PO and carton IDs |
Inspect more than the height of the first rebound
A low first rebound is not an automatic pass. Review whether the bar travels sideways, whether both ends return evenly and whether the plate rocks because of dimensional or assembly variation. After the sequence, inspect the face, rim, centre insert, insert-to-body boundary, flatness, markings and any permitted cosmetic change. Photograph the same views before and after, tied to the sample identity.
Keep design validation separate from shipment inspection. A development drop programme may consume or damage samples and can include more severe conditions. Routine batch acceptance can instead verify compound records, hardness on agreed witness pieces, dimensions, mass, insert condition and a limited functional comparison defined by the buyer. Never sell a destructively tested unit unless the agreed disposition explicitly permits it.
Write the requirement into the RFQ and approval sample
Ask the supplier for the actual elastomer family, centre-insert construction, permitted use by denomination, hardness-control method and available product-test procedure. Write the Shore scale, target range or approved reference, specimen source, conditioning and measurement locations. For rebound, define the platform, bar, collars, load, release, recording method, repetitions and failure signs. Avoid copying a competitor's number without matching its construction and test basis.
The approved sample should carry the same product revision, compound control, insert, dimensions, weight marking, logo process and packaging intended for production. Retain the videos, measurement sheet and photographs with that revision. If material, cure, mold, insert, plate thickness or platform changes, decide whether re-approval is required before the next purchase.
Link factory control to gym operation
Manufacturing control can keep compound preparation, molding, curing, insert preparation, trimming and marking aligned with the approved model, but the gym still controls the floor, platform, bar, collars, loading and user behaviour. Product and operating instructions must agree. A plate described for controlled drops is not permission to use it on concrete, damaged flooring or an unsuitable bar.
ChinaFreeWeight reviews bumper-plate projects by model and intended market. Buyers can request OEM and ODM options, custom logos, private-label packaging and bulk supply, but hardness, rebound, allowable use and inspection evidence remain product-specific. Send the full weight list and facility context so the factory can confirm a measurable proposal rather than a generic adjective such as low bounce.
Buyer checklist for hardness and rebound
- Define the exercises, permitted drops, platform and floor.
- List every plate weight and identify construction changes.
- Name the Shore scale, specimen and conditioning method.
- Separate hardness control from assembled-product rebound.
- Fix the bar, load, collars, release height and release method.
- Fix camera positions and the rebound reference plane.
- Compare light, middle and heavy representative models.
- Record lateral travel and post-test condition as well as height.
- Define stop rules, failure signs and tested-sample disposition.
- Retain approved samples, records and change-control triggers.
Continue the bumper plate buying review
- Compare weight plate models
- Choose training or competition bumpers
- Understand bumper plate manufacturing
- Calculate plate thickness and sleeve capacity
- Check plate hole and bar sleeve fit
- Approve an OEM sample
- Plan pre-shipment inspection
- Send a bumper plate inquiry
Frequently Asked Questions About Bumper Plate Rebound
Does a higher Shore A number always mean less bounce?
Not as a universal rule. It indicates a firmer indentation response under the stated method, while finished-plate rebound also depends on formulation, geometry, weight, load, temperature and platform.
Can Shore hardness predict bumper plate durability?
No single reading proves durability. Use it as material or process control and combine it with dimensional, insert, surface and product-level validation under defined conditions.
Can a durometer be used directly on a bumper plate?
Only if the selected method and geometry support a valid reading. Curved, textured or thin areas can distort results, so a flat representative witness coupon is often easier to compare.
How should bumper plate bounce be measured?
Fix the bar, load, collars, release, platform, temperature and camera; then record the same rebound event and lateral movement for each identified sample.
Should the lightest plate be drop-tested alone?
Follow the model's permitted use. Some light plates are restricted from being dropped alone, so the schedule must define a safe representative loading condition.
Is a low-bounce plate always quieter?
No. Sound also depends on total load, compound, platform, room and microphone position. Measure noise separately if it matters to the facility.
What should an OEM bumper plate specification include?
Include material and insert construction, dimensions, mass, hardness method, rebound setup, permitted use, sampling, visual criteria, branding, packaging and change control.
Define a measurable bumper plate order
Send intended use, plate weights, quantities, bar and floor setup, hardness method, rebound requirement, logo, packaging and inspection plan for a model-specific factory review. Request a bumper plate quotation.
