Quick answer: approve the dumbbells and rack as one storage system
A rack is compatible only when every intended dumbbell can be placed, gripped, removed and returned without unstable support, trapped fingers or contact with the next tier. Record the exact dumbbell model, full weight range, head dimensions, handle window, total set mass, rack interface, bay count and approach space.
Do not approve a rack from a pair count or the words commercial and universal alone. ChinaFreeWeight can review OEM, ODM, Custom Logo, Private Label and Bulk Supply requirements after the actual dumbbell schedule and storage conditions are defined.

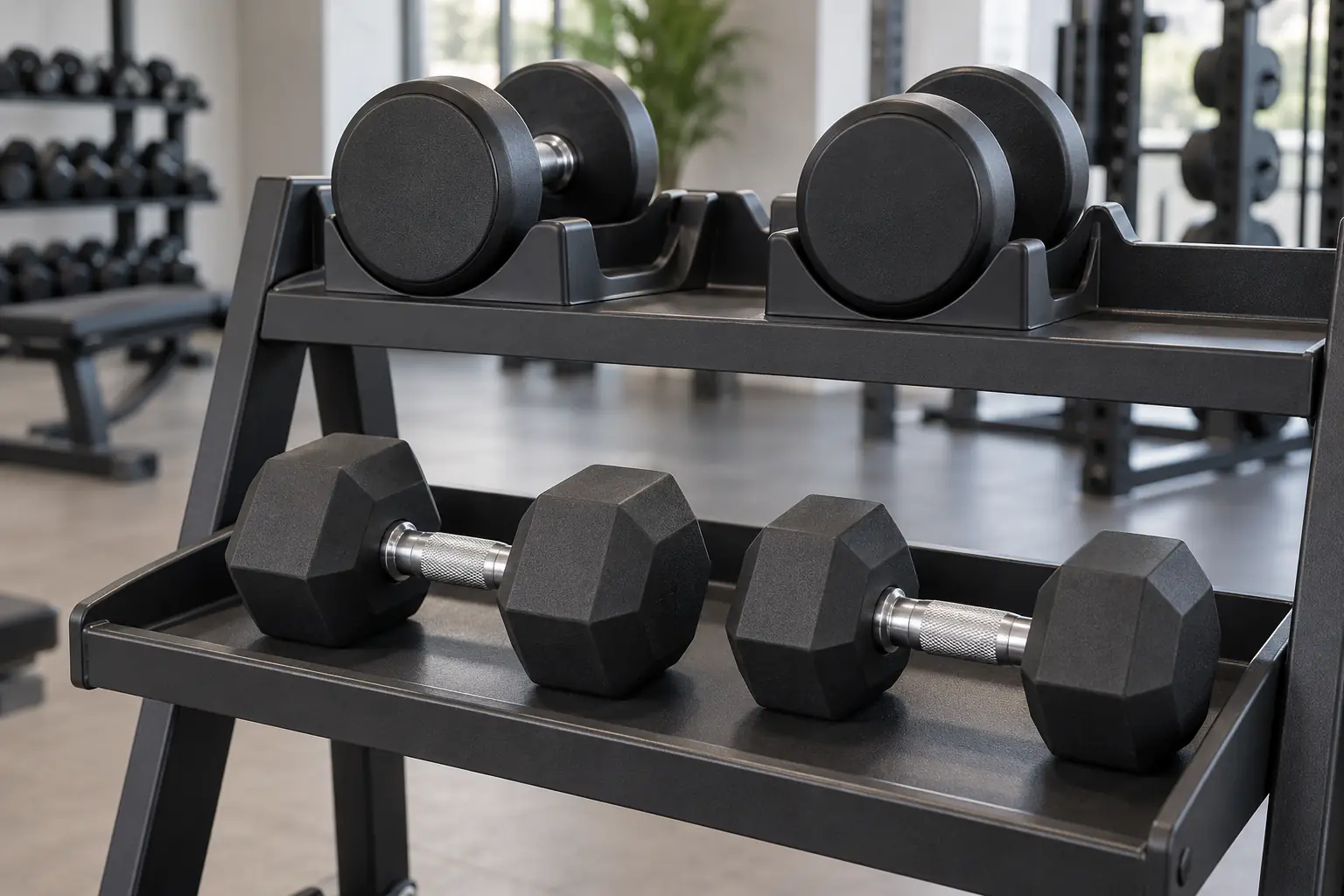

Tray, saddle and vertical racks solve different storage problems
An angled tray supports the heads along a shelf and often suits hex or mixed-size series. Paired saddles locate each dumbbell in a dedicated bay and are common for round heads, but saddle contour, spacing and head diameter still need a physical fit check. A vertical tower saves wall length while changing lift height, access angle and base-stability demands.
Choose the interface before comparing frame appearance. The same round dumbbell may sit correctly in one cradle and pinch the handle window in another; a hex head may bridge or rock on a saddle designed around a round profile. A product-family label is not a fit specification.
Map the entire dumbbell geometry, not only the marked weight
For each SKU, record head shape, maximum head width or diameter, head thickness, total length, clear handle length and the transitions beside the grip. Light and heavy sizes may use different head proportions even when the handle is shared. End caps, raised logos and molded seams can also change the contact envelope.
Overlay these dimensions with usable shelf depth, lip height, saddle contour, saddle centre spacing, tier clearance and frame intrusions. The smallest head may pass through an opening or sit too low; the largest may touch the upright or the tier above. Validate the extremes and intermediate change points, not one convenient pair.
Dumbbell rack compatibility decision table
| Decision field | Define before quotation | Approval evidence |
|---|---|---|
| Dumbbell family | Shape, material, unit and full SKU range | Identified light, middle and heavy samples |
| Head envelope | Width or diameter, thickness and protrusions | Drawing and physical fit review |
| Handle access | Clear grip length and neighbouring obstructions | Removal and return trial |
| Storage interface | Tray, saddle or vertical support points | Contact photos and stability review |
| Capacity | Positions, pair sequence and complete assigned mass | Loading map and model documents |
| Rack geometry | Usable shelf, tier, bay and frame dimensions | Measured assembled sample |
| Installation | Feet, leveling, anchoring provision and floor | Instructions and site review |
| Bulk control | Sampling, defects, hardware and packing | Receiving or pre-shipment record |
Count usable positions with the real loading order
Published pair capacity is model-specific. Build a rack plan using the ordered weight progression, the actual width occupied by each pair and any duplicated popular weights. Leave the agreed separation needed to reach the grip and return the dumbbell without striking its neighbour.
Calculate the assembled mass of every dumbbell assigned to each tier and the complete rack, then compare it with documented model information and the planned floor position. Do not invent a load rating from tube size, rack weight or visual similarity to another product.
Protect hand access and busy-gym circulation

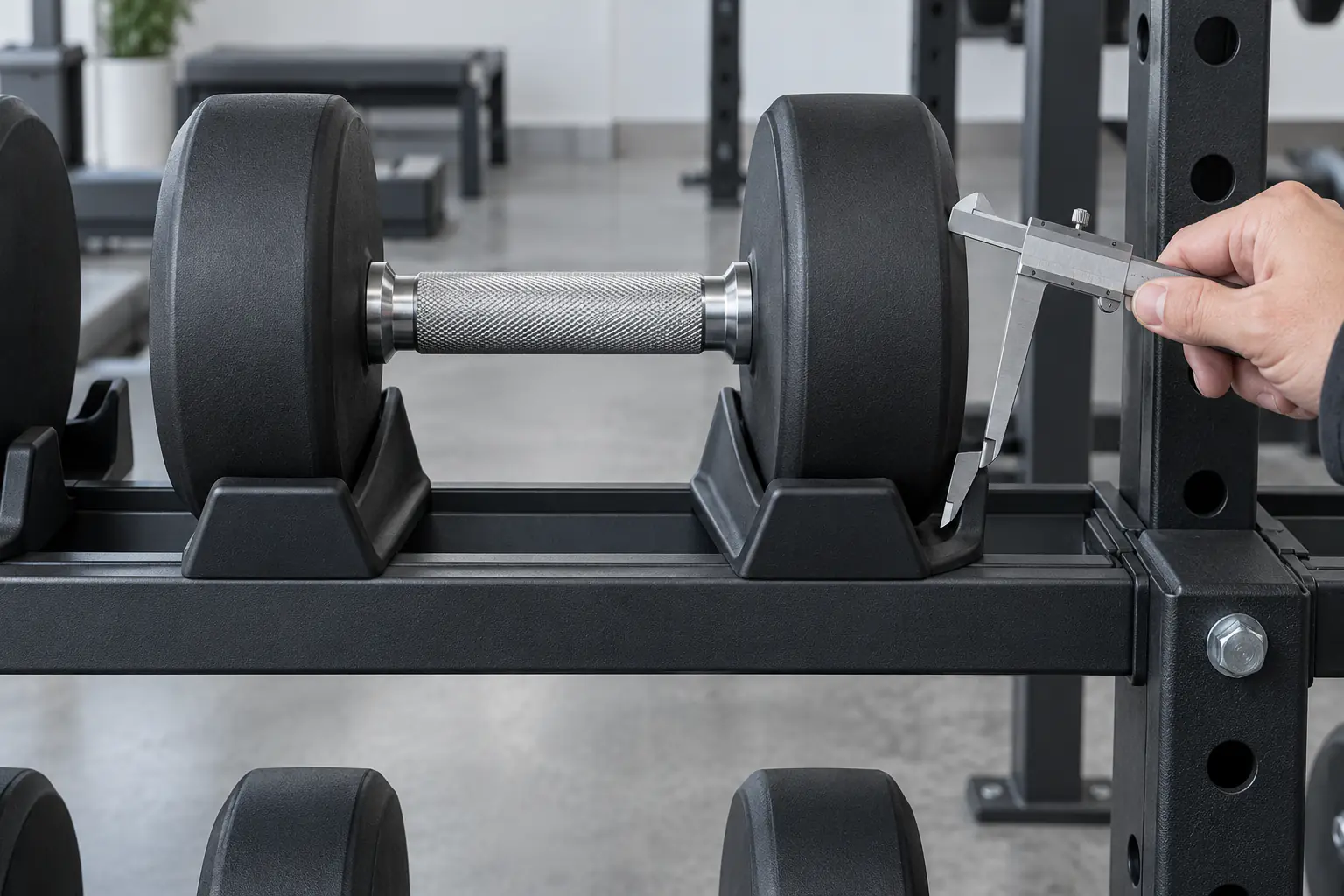

A user needs a clear path to the handle before the dumbbell moves. Check knuckle space against the lip, saddle, adjacent head and upper tier with light, middle and heavy sizes. Test the intended two-handed return for heavier pairs and confirm that a misplaced dumbbell does not create a new pinch point.
The rack footprint is only part of the layout. Allow an approach and return zone that stays separate from benches, exercise stations, doors and main circulation. Local facility planners remain responsible for site rules and the final layout; a product quotation cannot establish safe room clearance for every building.
Specify the frame, contact surfaces and assembly evidence
Request overall dimensions, usable shelf dimensions, material and section description, fastener list, feet or anchoring provisions, surface finish, replaceable contact parts and assembly instructions. Ask how the rack is intended to stand, level and be secured for the proposed installation.
Contact pads and saddles should support the intended head without cutting, concentrated edges or exposed fasteners. Review whether a worn insert can be replaced and whether its revision changes fit. Structural or anchoring claims require model-specific documentation; they cannot be inferred from a photograph.
Approve a production-equivalent rack and representative dumbbells
The approval set should use the final rack geometry and at least the smallest, largest and any transition sizes from the intended dumbbell family. Load the positions in the planned sequence, observe support and contact, remove and return each pair, then review access from realistic standing positions.
Record the rack revision, dumbbell revision, photos, measured fields, assembly hardware and any permitted adjustment. If shelves, saddles, head molds, handles or range length change, repeat the affected fit checks instead of assuming the original approval still applies.
Inspect bulk supply as a rack-and-dumbbell system
Receiving inspection should identify every frame, shelf, saddle, pad, fastener and instruction item before assembly. Check quantity, geometry, finish, weld appearance, hardware engagement, feet, wobble on the agreed surface and damage from packing. Then fit representative dumbbells from across the supplied range.
Separate product condition from installation conditions. A rack assembled with missing hardware or on an unsuitable floor cannot validate the product; equally, correct assembly does not excuse wrong bay spacing or damaged contact parts. Record exceptions by rack and carton so corrective action remains traceable.
Send a model-specific factory brief
A useful request lists the dumbbell construction, unit system, complete SKU schedule, pairs per SKU, head and handle drawings, preferred rack format, bay sequence, floor constraints, finish, logo zones, packaging, destination and required evidence. State which party supplies the dumbbells used for the fit review.
As a free-weight factory, ChinaFreeWeight can coordinate dumbbell and storage requirements for an OEM or private-label programme, but feasibility, custom artwork, order minimum and schedule depend on the selected models and approved scope. Ask for a written configuration rather than relying on a showroom image.
RFQ and sample-approval checklist
- Exact dumbbell models and revisions
- Complete weight and pair schedule
- Head and handle dimensions by change point
- Rack format and position sequence
- Usable shelf, saddle and tier dimensions
- Complete assigned mass by tier and rack
- Grip access and return trial
- Frame, feet, hardware and installation documents
- Contact pads, finish and replacement parts
- Packaging, inspection and change-control plan
Related dumbbell and purchasing guides
- Browse commercial dumbbells
- Plan a commercial dumbbell set
- Specify fixed-dumbbell handles
- Check dumbbell head retention
- Compare hex and round dumbbells
- Compare fixed and adjustable dumbbells
- Approve an OEM sample
- Plan pre-shipment inspection
- Design export packaging
- Send the rack and dumbbell brief
Commercial dumbbell rack compatibility FAQ
Do all commercial dumbbells fit a commercial rack?
No. Head shape, dimensions, handle spacing, shelf or saddle geometry and tier clearance vary by model.
Is a tray rack better than a saddle rack?
Neither is universally better. Trays often suit hex or mixed dimensions; dedicated saddles can organize round heads when contour and spacing match.
How is rack capacity calculated?
Use the exact pair sequence, occupied width and complete mass assigned to each tier and the rack, then check the model documentation.
Which dumbbell sizes should be tested?
Test the smallest, largest and sizes where head or handle geometry changes, plus any duplicated weights that affect spacing.
Can rack dimensions alone prove safe access?
No. Perform removal and return trials, review pinch points and confirm the facility approach space.
Can the rack carry a custom logo?
A suitable frame may accept an agreed logo plate, marking or color after artwork, location, edge and assembly effects are approved.
What belongs in a wholesale request?
Include dumbbell schedule, dimensions, rack format, capacity map, installation context, finish, logo, packaging, destination and inspection evidence.
Specify the dumbbells and rack together
Send the complete dumbbell schedule, dimensions, storage preference, site constraints, branding and evidence needs for a model-specific factory review. Request a rack-and-dumbbell review.
