Quick answer
There is no credible universal load rating for every cable-machine handle. A buyer needs a declared limit for the exact finished attachment, a defined test basis, and evidence that covers the complete load path: connector, eye or ring, weld or stitching, fastener, swivel, frame and grip retention. The rating must also fit the machine, pulley arrangement, intended exercise and direction of pull.
Do not copy the number printed on a weight stack, a carabiner or a competing product into an RFQ. Ask the supplier to identify what its number means, which revision it covers and how it was verified. For an OEM, ODM, custom-logo, private-label or bulk order, treat load evidence as a controlled specification rather than a sales adjective.
Working limit, proof load, break result and endurance are different
A declared working limit is the boundary the responsible manufacturer permits under stated use conditions. A proof or verification load is a defined non-service check intended to demonstrate a requirement without assuming the sample has reached failure. A breaking result records where a specimen failed under one method; it is not automatically a working limit. Endurance evidence asks whether the assembly remains acceptable after repeated loading under a written cycle.
Those terms are not interchangeable. The report should state fixture, direction, rate, load profile, duration or cycles, specimen count, product revision and acceptance criteria. If a supplier gives only a large number with no unit, method or meaning, the buyer still has no usable rating. Applicable standards and legal requirements must be confirmed for the destination and the complete training system.
Map the complete load path before comparing numbers
For a rigid handle, trace the force from machine connector through eye, clevis or D-ring, weld or fastener, swivel or bearing, frame and handle-retention feature. For a textile D-handle, include the metal ring, webbing width and layers, stitch pattern, thread, edge treatment and grip core. A triceps rope adds its eye or swivel, rope splice or retention method and end stops.
The usable assembly cannot exceed its weakest verified element. Even that principle requires care: two component values produced with different fixtures, directions or definitions may not be directly comparable. Ask for an assembly decision from the responsible supplier, not a spreadsheet built from unrelated catalogue numbers. A carabiner supplied by the machine maker, one added by the importer and one packed with the handle create three different assembly boundaries.
Start with the actual machine and exercise application
Record the machine model, cable-end geometry, stated maximum resistance, pulley ratio or routing, one- or two-cable configuration, and instructions for approved accessories. The stack label may not equal force at the hand. Pulley ratio, attachment mass, friction, acceleration, cable angle and whether two trolleys are joined can change the application. Do not calculate a safe handle limit from stack mass alone.
List the intended movements and foreseeable pull directions. A straight axial pull, an angled row, a two-point fly and a slack connector that can rotate sideways do not load hardware in the same way. Compatibility still matters, so first use the cable attachment fit guide; then write the load and evidence requirement for the chosen machine family.
Evidence matrix for cable attachment procurement
| Item | Question to resolve | Acceptable record |
|---|---|---|
| Declared limit | What use, direction and assembly does it cover? | Signed specification tied to SKU and revision |
| Proof or verification | What load sequence and acceptance rule apply? | Method, equipment, specimen and result |
| Breaking result | Where and how did the specimen fail? | Destructive report kept separate from working limit |
| Endurance | What repeated load and post-check were used? | Cycle profile and before/after inspection |
| Connector | Is maker, model, axis and gate state known? | Traceable component data and assembly drawing |
| Weld or fastener | Which joint carries force and how is it controlled? | Drawing, process control and inspection rule |
| Textile | Which webbing, thread, overlap and stitch are approved? | Material and construction reference sample |
| Lot acceptance | How is production matched to the approved design? | Sampling plan, records and change notification |
Build sample verification around a controlled product revision
The sample record should identify the drawing revision, dimensions, material for every load-bearing part, section thickness, weld location, fastener grade and retention, bearing or bushing arrangement, coating, textile construction and supplied connector. Photograph the untested sample and inspect alignment, gate closure, burrs, cracks, incomplete welds, abnormal swivel play and stitching before loading.
The validation plan then fixes the representative fixture, direction, preconditioning, load sequence, measurement equipment and stop rule. After the defined check, compare deformation, crack indications, fastener movement, free rotation, grip retention and textile condition against written criteria. A photograph of a hanging weight does not replace a report. ChinaFreeWeight can discuss manufacturable inspection points, but a claim of compliance requires current evidence for the exact SKU and scope.
Why a marked carabiner does not rate the whole attachment
A connector marking can be useful only when its maker, standard, unit, direction, gate state and traceable model are known. Ratings for climbing, fall protection or industrial lifting belong to their own applications. Installing such a connector on gym equipment does not transfer that rating to the welded eye, swivel, bolt, strap, handle or machine, and it does not authorize a new exercise.
Connector geometry also controls behaviour. Confirm gate opening, internal clearance, major-axis alignment and whether slack lets the connector turn across its gate or nose. Follow the machine and connector instructions; do not rely on an unmarked commodity clip or an online claim. Where the machine manufacturer specifies a particular connecting link, substitutions need responsible technical review rather than a visual match.
Separate design validation from routine lot acceptance
Design validation asks whether a defined construction is suitable for its intended application. It may include static, retention, loading, deflection or endurance work under the applicable product standard and risk assessment. Lot acceptance asks whether production matches that approved construction. It normally combines identity, dimensions, materials, weld and assembly checks, functional movement, finish, quantity and packaging, plus any agreed sampling test.
A destructive break test on every shipped item would destroy the order; a light visual check cannot establish design strength. State which controls apply to first articles, periodic validation, each production lot and individual pieces. Also define revalidation triggers: material or supplier change, thinner section, weld change, fastener change, new swivel, relocated hole, altered textile or stitch, structural machining, or a new intended machine and direction.
Inspect rigid, rotating and textile attachments differently

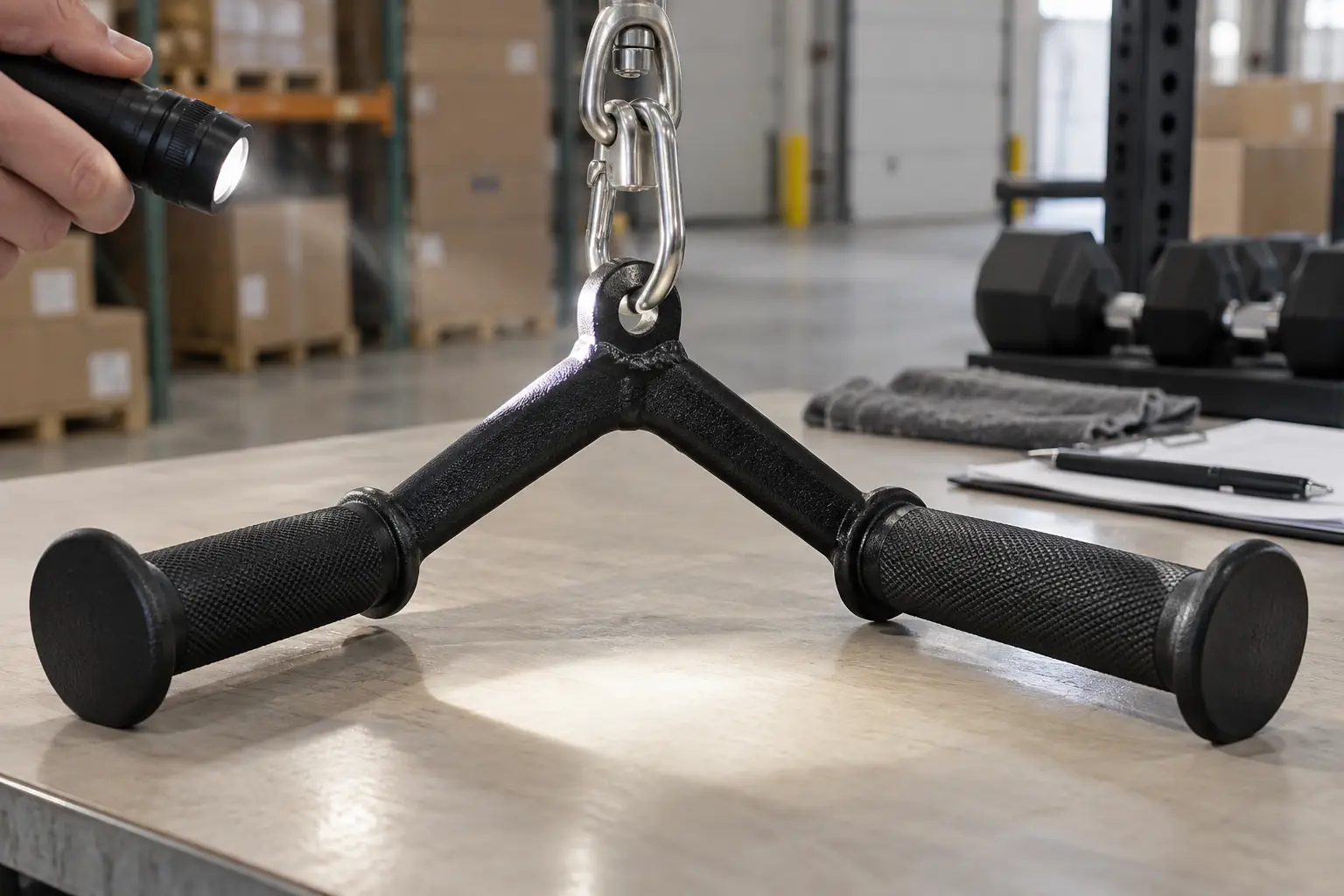

On steel and aluminum handles, inspect eye shape, weld continuity, heat-affected appearance where relevant, frame symmetry, sharp edges, corrosion, cracks, loose fasteners and grip retention. A rotating handle needs an agreed normal-play reference and a check that it turns without binding; free rotation alone does not prove load capacity. Keep approved samples or measured references so inspectors do not invent limits at the receiving dock.

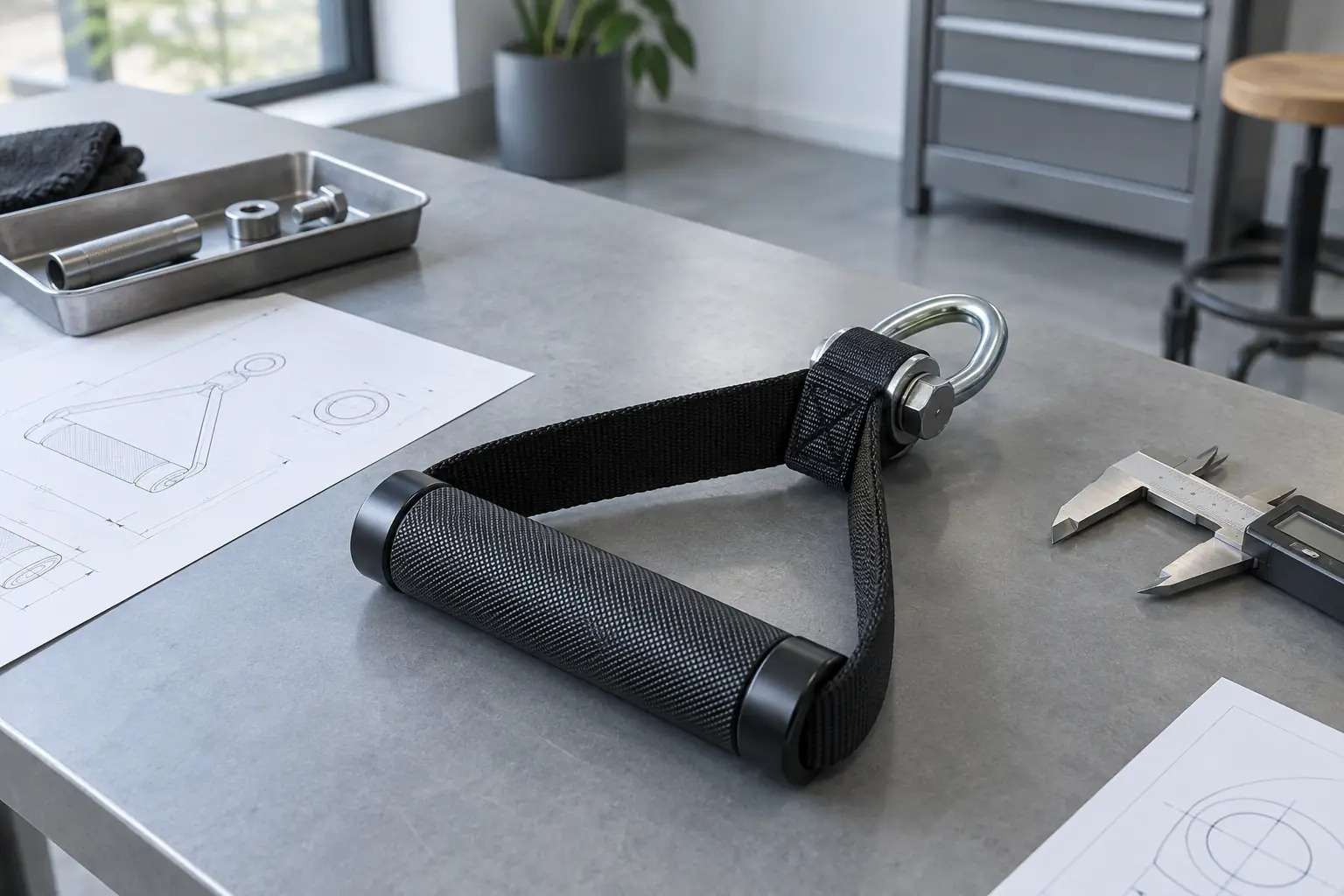

For webbing, straps and rope, look for cuts, abrasion, glazing, pulled threads, damaged seams, chemical exposure, deformed rings and loose stops. The hidden overlap and stitching construction matter, so colour and hand feel are insufficient. Life Fitness and Precor maintenance guidance both emphasize inspection around connections, accessories and hardware. A facility should follow the relevant maker's schedule and remove questionable items from use rather than field overload-testing them.
Keep branding changes away from structural ambiguity
Custom logo work can use a nonstructural plate, end cap, grip accent, packaging, hang tag or approved surface area. Laser marking, engraving, new holes, deep stamping or machining on a load-bearing eye, plate, tube or fastener may change geometry or local stress and therefore needs design review. A finish change can also affect fit, threads, bearing surfaces, weld inspection or corrosion behaviour.
For private label and bulk supply, link the artwork revision to the product drawing, finish reference, carton code and approved sample. OEM customization usually starts from a verified platform; ODM geometry changes require new evaluation. Never market an old report as evidence for a revised construction merely because the product name and logo stayed the same.
Write the RFQ so every supplier answers the same question
Send machine models, connection photos and dimensions, pulley configuration, intended movements, market, facility class, quantity by SKU and the requested delivered assembly. Ask for the declared working limit and its definition, applicable standards, validation method, report identity, specimen revision, component traceability, lot controls, change-notification rule, operating inspection and retirement guidance. Separate mandatory requirements from supplier proposals.
Also define finish, grip, rotation, OEM or ODM scope, custom-logo artwork, private-label packaging, labels and bulk inspection. If a number cannot be supported, leave it open for engineering agreement instead of inserting a familiar value. A good quotation states what is included, what remains conditional and which evidence will be supplied before production release.
Ten-point buyer checklist
- Name the exact machine, cable end and pulley arrangement.
- Define the intended exercise, pull direction and commercial environment.
- State the delivered assembly boundary, including or excluding connectors.
- Request a declared working limit with definition and responsible owner.
- Keep proof, breaking and endurance evidence clearly separated.
- Map eyes, welds, fasteners, swivels, grips, webbing and stitching.
- Approve a drawing, sample and inspection method under one revision.
- Define first-article, lot, individual and periodic controls.
- List revalidation triggers for material, geometry or process changes.
- Provide operating inspection, quarantine and retirement instructions.
Products and buyer guides
- Browse gym accessories
- View cable attachment sets
- Compare aluminum gym handles
- Compare solid steel handles
- Check cable attachment compatibility
- Plan OEM sample approval
- Prepare pre-shipment inspection
- Discuss the requirement
Frequently Asked Questions
How much weight can a cable attachment hold?
There is no universal answer. Use the declared limit and test basis for the exact finished attachment, connector arrangement, machine and direction of use.
Is a cable machine's stack weight the handle load?
Not necessarily. Pulley ratio, routing, friction, attachment mass, acceleration and joined trolleys can change the force seen at the handle.
Is breaking load the same as safe working load?
No. A break result describes failure in one destructive method. A working limit is a declared service boundary under stated conditions.
Does a rated carabiner rate the whole handle?
No. It covers only that connector under its stated conditions. The eye, weld, swivel, fastener, strap, grip and machine still need compatible evidence.
Should the factory load-test every attachment?
The control plan depends on risk, standard and construction. Design validation, sampled lot checks and individual inspection have different purposes; destructive checks cannot be applied to shipped pieces.
Can a custom logo change load performance?
It can if marking, machining, holes, heat or finish changes a load-bearing area. Keep branding nonstructural or re-evaluate the revised design.
When should a gym retire a cable handle?
Follow the maker's instructions and remove it from service when there is deformation, cracking, sharp damage, abnormal looseness, binding, corrosion, damaged stitching, fraying or undocumented service history.
