How to Specify Cable Attachment Handle Diameter and Grip

Quick answer: there is no universal cable-handle diameter

A commercial cable attachment should not be approved from the word ergonomic or from one catalogue diameter. Define the exercises, users and station first; then specify finished grip diameter, usable length, profile, texture, material, end clearance and whether the grip or attachment must rotate. Approve a production-equivalent sample and inspect the delivered set against the same reference.

Current first-party products publish substantially different grip diameters and constructions, which is useful evidence that one number does not fit every movement or facility. ChinaFreeWeight can review OEM, ODM, Custom Logo, Private Label and Bulk Supply programs, but the final dimensions and acceptance method belong to the controlled order specification.

Define the finished grip, not a marketing label

Grip diameter means the outside size the user actually holds after knurling, coating or molding. Usable length excludes end caps, shoulders and transitions. A straight, tapered, contoured or angled handle also needs named measurement points because one reading cannot describe the whole shape.

Record the attachment type, overall mass, grip centerline, handle spacing, angle, end geometry, surface and rotation interface. Keep compatibility and load evidence in their own documents: a comfortable grip does not prove carabiner fit or structural capacity.

Start with movements and the user mix

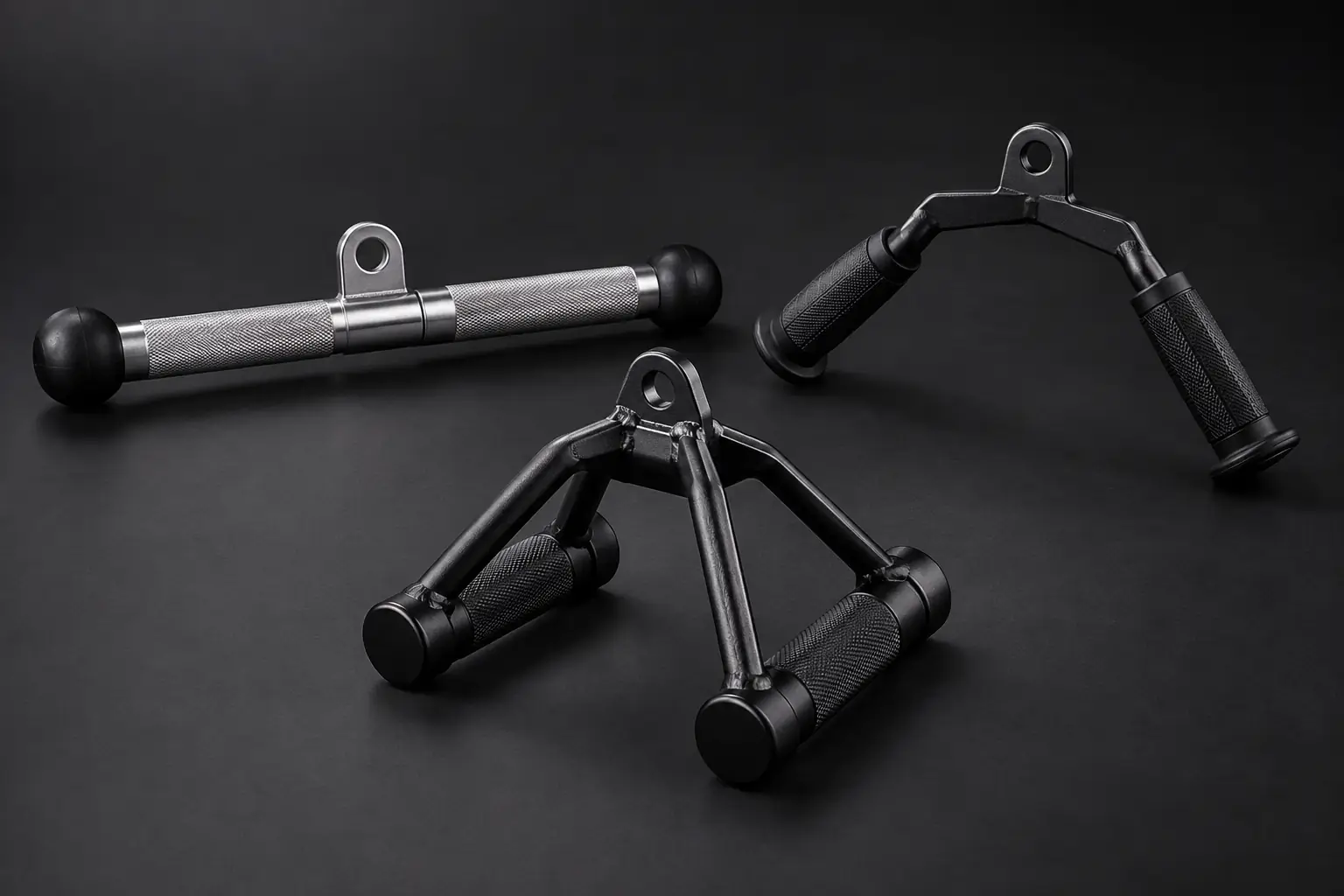

Cable flyes, lateral raises and rehabilitation-style work often reward a light attachment and free wrist alignment. Rows and pulldowns may prioritize a stable neutral or angled grip. Curls and pressdowns place different demands on rotation, end clearance and texture. A thick grip can be deliberate for grip work but should not silently become the default for every member.

Map each attachment to its intended station, exercise family and likely users. For a public gym, include smaller and larger hands, gloves, sweaty use and repeated cleaning. For a distributor, decide which dimensions form the core line and which are clearly identified specialty options.

Measure diameter, length, angle and clearance consistently

State whether diameter is measured across a smooth land, across knurl crests or over a molded cover. On a contoured grip, name every location and orientation. Measure usable length between the inner shoulders and confirm that fingers cannot be trapped by end plates, pivots or adjacent frames during the intended movement.

Pairs need more than two similar-looking parts. Compare left and right grip diameter, length, rotation direction, strap length or frame geometry. Retain the raw readings with model, revision and sample identity so a reorder can be compared without relying on memory.

Cable attachment grip specification table

Choose texture and material as one user interface

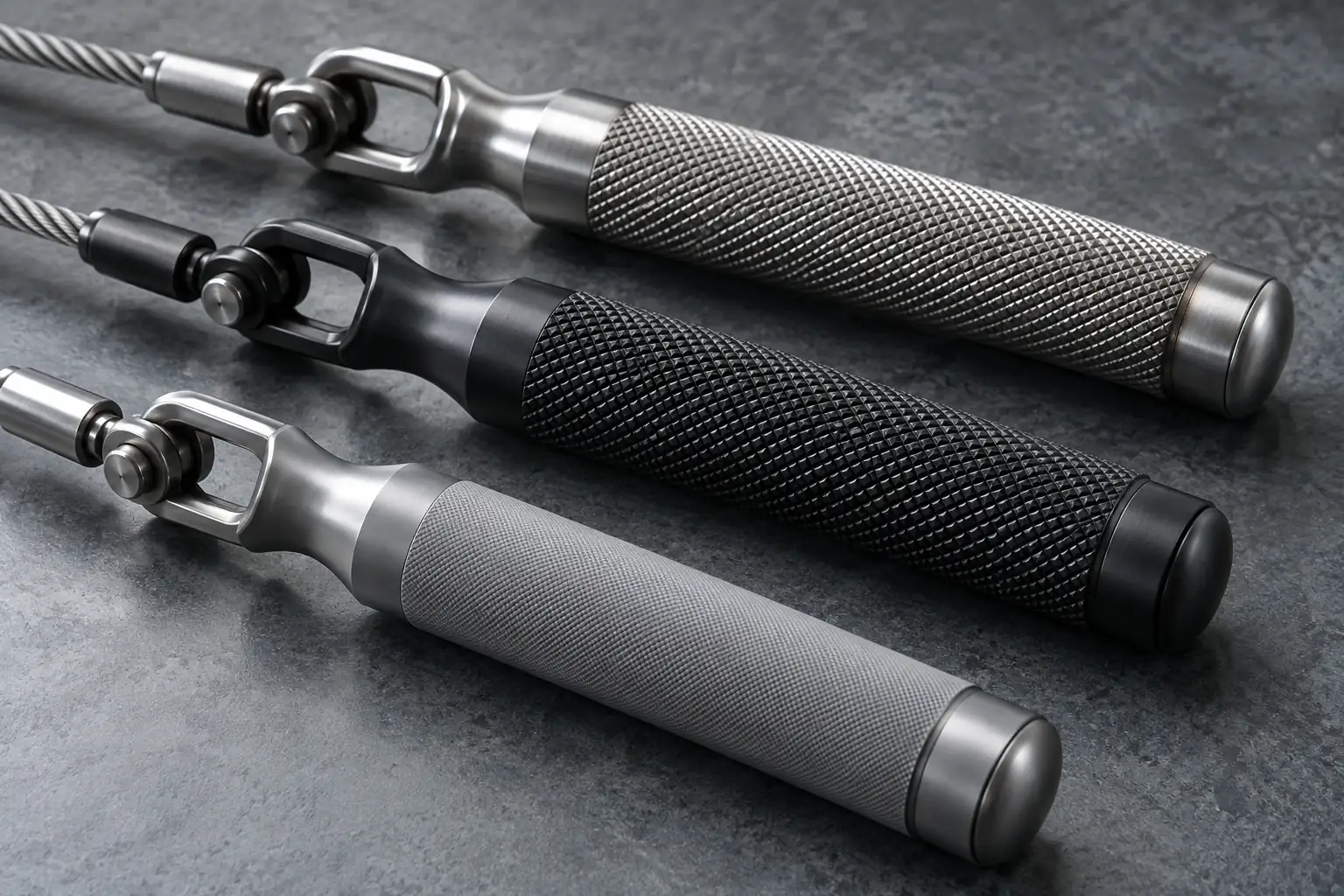

Knurled metal gives a direct, cleanable surface but needs controlled crest condition, complete coverage and burr inspection. Molded polymer or elastomer can change comfort, insulation and appearance; its compound, bond, seam, texture and cleaner compatibility must be approved for the actual model. A material name alone does not prove durability.

Test the intended cleaning product on the finished sample and document any limits. Inspect whether custom colour or logo placement reduces weight-mark visibility, creates an edge under the palm or interrupts the functional grip zone.

Inspect rotation without using free-spin time as a score

A rotating handle should move smoothly through the required range without binding, grinding or exposing a pinch point. Check axial and radial play, fastener retention, end-cap security and left-right consistency under an agreed safe setup. Lubricant, seals, clearance and load can change unloaded spin, so seconds of free rotation are not a universal quality grade.

Identify whether rotation is at the grip, joint, eye or machine connector. The maintenance instruction should match that construction. Do not disassemble a sealed or proprietary assembly during receiving inspection unless the approved procedure allows it.

Approve a representative set and control changes

Sample the smallest and largest grip options, at least one rotating design, each material family and every construction change. Record dimensions, feel reference, finish, movement, noise, play, attachment interface and packaging. A photo approval cannot freeze texture or rotation behaviour.

For OEM or ODM work, require notice before changing handle stock, molding compound, knurl tool, coating, bearing or bushing, fastener, strap, weld route or sub-supplier. Custom Logo and Private Label artwork should stay linked to the same product revision.

Build the RFQ and lot inspection around decisions

Send quantities by exact attachment, intended movements, target users, finished dimensions, material, finish, texture reference, rotation requirement, connector interface, logo, packaging and destination. Ask the supplier to list exceptions instead of silently substituting a standard handle. MOQ, tooling, price and timing remain quotation-specific.

For production, inspect identity, dimensions, paired symmetry, surface, burrs, molding seams, loose grips, rotation, noise, fasteners, closed attachment points and packaging across the agreed sample. Link every result to SKU and carton so approve, hold, sort or rework decisions are reproducible.

Ten-point buyer checklist

• Name each attachment and intended movement group.
• Define finished diameter at stated measurement points.
• Record usable grip length, profile, angle and spacing.
• Approve knurl or molded texture on the finished sample.
• Confirm material, finish and cleaner compatibility.
• Define rotation location, range, play, noise and retention checks.
• Verify the closed attachment interface on the intended station.
• Compare paired handles and construction-change samples.
• Control logo, colour, packaging and every revision change.
• Link inspection results to SKU, lot and carton identity.

Continue the cable-attachment buying process

• Check cable attachment compatibility
• Verify cable attachment load evidence
• Prepare a commercial free-weight RFQ
• Approve an OEM sample
• Plan pre-shipment inspection
• Evaluate the manufacturing workflow
• Review OEM and private-label options
• Browse gym accessories
• Send the attachment specification

Frequently Asked Questions About Cable Attachment Grips

What is the standard diameter for a cable attachment handle?

There is no single diameter for every attachment or user group. Specify the finished size, measurement point, intended movements and sample reference for the actual model.

Is a thicker cable handle better?

Not universally. A thick grip can serve grip-focused work, while lighter or smaller grips may suit flyes, raises and a broader user mix. Treat it as a deliberate option.

Should cable handles rotate?

Rotation can help wrist alignment for some movements, but it must be located, retained and inspected correctly. Fixed handles can also be appropriate for defined uses.

Is metal knurling better than a molded grip?

Each has tradeoffs in feel, cleaning, wear, weight and customization. Compare finished samples and the actual maintenance environment rather than material names alone.

How should knurling be specified?

Define the functional zone, geometry or retained texture reference, crest condition, transitions and burr limits. Words such as medium are insufficient by themselves.

What should be checked on a rotating handle?

Check smooth movement, agreed play, noise, fastener and end-cap retention, pinch points and left-right consistency under a written safe setup.

Can cable handles carry a custom logo?

Often yes, subject to the construction and sample approval. Branding must not interfere with the grip zone, identity, movement, inspection or cleaning.
