Short answer: approve the complete rope
A triceps rope is a small assembly with several distinct decisions: the braided or twisted cord, the way it passes through the center eye, the end-stop retention, and the fit of that eye to the intended machine connector. A product photograph cannot establish how any of these will behave in use.
For a bulk order, name the intended exercises and machines, then approve a production-equivalent sample. ChinaFreeWeight is a free-weight and gym-accessory factory that can review OEM, ODM, custom logo, private label and bulk supply against an agreed model and acceptance plan.
Specify the rope that users actually hold
State whether length is measured end to end, from eye to stop, or as usable hand span. Those are different figures. Let staff try pushdowns, face pulls and overhead work on the intended station before choosing a length; a longer rope is not automatically better for every exercise.

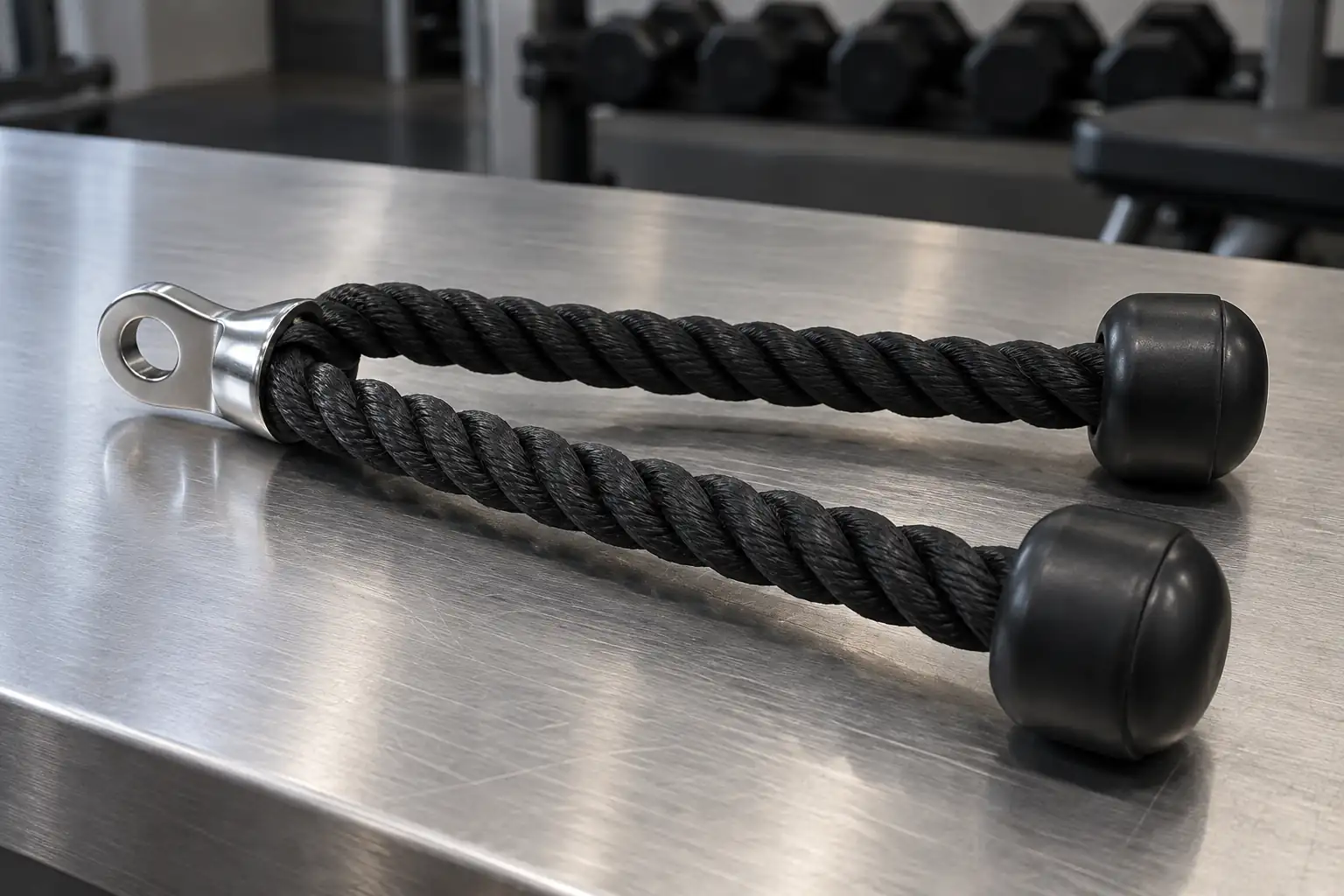

Record cord material, braid or twist, finished diameter, flexibility, surface feel and color on the approved sample. Check that the two legs are matched and that the surface does not show cut fibers, hard melted areas or loose ends where hands slide.
Trace the center connection
Inspect the rope-to-eye contact

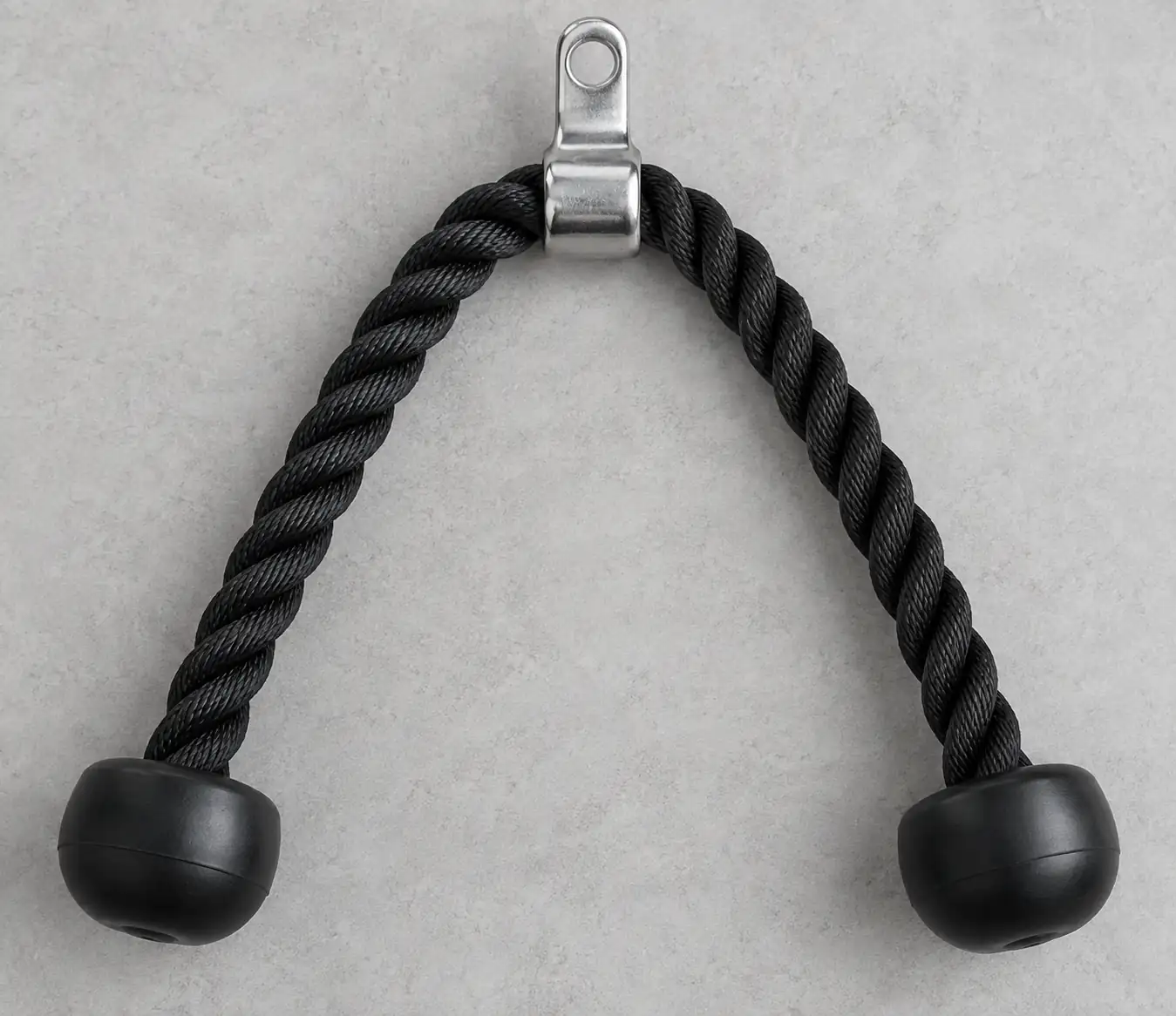

The center eye or clevis needs enough clearance for the actual clip to close and align in the intended pulling direction. Its inner edge should not saw into the rope. Examine the rope bend, any protective sleeve, seam, fastener and accessible wear point on the finished sample.
A ring that spins, a free-moving rope and a swiveling machine connector solve different movement problems. Confirm which part moves; do not assume that a rotating eye proves the complete attachment's load limit or cures a twisted machine cable.
Treat each end stop as a retained component
Check grip and separation risk
A rounded end can give the hand a stop, yet shape and surface affect comfort. Try the finished rope with the grip pattern and gloves used by members. Check that each stop is seated, aligned and free of sharp molding flash or exposed rope termination.
Ask the supplier how the stop is secured and what evidence covers the finished assembly. A tight-looking cap in a photograph does not prove retention. Establish the approved construction and inspection method before accepting a substitute material or molding process.
Separate fit, strength and upkeep
Use the machine maker's limits
The machine clip, rope eye, rope, stop and machine each have their own scope. A number on one component cannot be copied to the full assembly. Put overall load evidence, connector compatibility and exercise direction in the separate attachment specification.
For shared facilities, set an inspection routine around abrasion at the center, fuzzing, cuts, loose stops, corrosion and damaged clips. Remove a questionable attachment from use and follow the equipment maker's service instructions; do not improvise a field repair.
Approve OEM details without hiding wear
Logo, color and replenishment
Custom logos or private-label colors belong on a suitable non-contact surface or packaging. Keep markings away from the rope bend, eye edge and hand-contact zone. Approve artwork on the actual chosen material, since a drawing cannot show wear or grip feel.
Identify the model, cord specification, eye, end stop, artwork revision and carton count on the purchase order. If an ODM change alters a rope, eye or stop, repeat the affected checks. Keep an approved sample so a later replenishment can be compared to the same construction.
Write receiving checks before shipment
Compare several cartons, not one photograph
Agree how a lot will be identified and sampled. At receipt, compare length definition, rope surface, leg symmetry, eye finish, stop seating, logo, packaging and quantity against the approved sample. Photograph defects at the exact location and record which cartons were opened.
Isolate attachments with a cut rope, exposed core, detached stop, damaged eye or incompatible connector. Ask the factory for disposition against the written criteria. The goal is a consistent usable accessory, not a cosmetic pass achieved by trimming a defective rope.
Rope buying decision table
| Control | Buyer action |
|---|---|
| Trace the center connection | Define finished rope length, diameter, material and feel. |
| Treat each end stop as a retained component | Approve the eye and end-stop assembly on a physical sample. |
| Separate fit, strength and upkeep | Keep load evidence and clip fit in the complete-assembly file. |
| Approve OEM details without hiding wear | Sample rope, eye and both stops across cartons at receipt. |
| Write receiving checks before shipment | Record model, artwork revision, packaging and replacement rule. |
Buying brief
- List each machine, exercise and piece quantity.
- Define finished rope length, diameter, material and feel.
- Approve the eye and end-stop assembly on a physical sample.
Receiving checks
- Keep load evidence and clip fit in the complete-assembly file.
- Sample rope, eye and both stops across cartons at receipt.
- Record model, artwork revision, packaging and replacement rule.
Continue the cable attachment specification
- Explore cable attachments
- Check machine connector fit
- Review complete-assembly load evidence
- Compare metal handle grips
- Plan pre-shipment inspection
- Approve an OEM sample
- Discuss private-label supply
- Send the rope enquiry
Frequently Asked Questions About Triceps Ropes
What length should a commercial triceps rope be?
There is no universal length. Define the measurement points and try the proposed sample on the intended machines and exercises.
Are rubber end stops enough to prove safety?
No. Their attachment, rope condition, center eye and complete assembly need agreed evidence and inspection.
Does a swivel prevent every cable twist?
No. First identify whether movement occurs at the eye, rope or machine connector, then assess the actual setup.
Can a rope use a custom logo or private-label color?
Often this can be reviewed on the selected construction. Keep marking away from wear and hand-contact zones and approve a finished sample.
What should the receiving team reject?
Quarantine cuts, exposed fibers, loose or detached stops, damaged eyes and connector mismatch for documented supplier review.
