Quick answer: approve the complete pack, not just the tube
A shipping tube is only one part of Olympic barbell export packaging. A purchase specification should define the approved bar revision, clean inner wrap, axial restraint, end protection, outer tube or carton, closure method, moisture controls, identification and the way long packages are supported as a unit load.
The pack should prevent the bar from sliding into the ends, rubbing against abrasive surfaces or sitting across unsupported pallet gaps. Packaging cannot make a bar straight. Record straightness and sleeve condition before packing, then inspect them again after a representative distribution trial and at receiving.
Start with the bar and the distribution route
Give the factory the actual overall length, shaft and sleeve geometry, surface finish, end-cap design and packed quantity. A zinc sleeve, black shaft or decorative coating may need different contact materials. The package also changes when one bar travels by parcel network versus many bars moving on a pallet or in an export container.
Do not approve wording such as “strong tube” without a sample or drawing. Identify where the bar is supported, what stops axial movement and how the closure remains attached. Carrier limits, warehouse handling and container loading should be considered before freezing the pack.
Control axial movement and protect both ends
Control axial movement and protect both ends

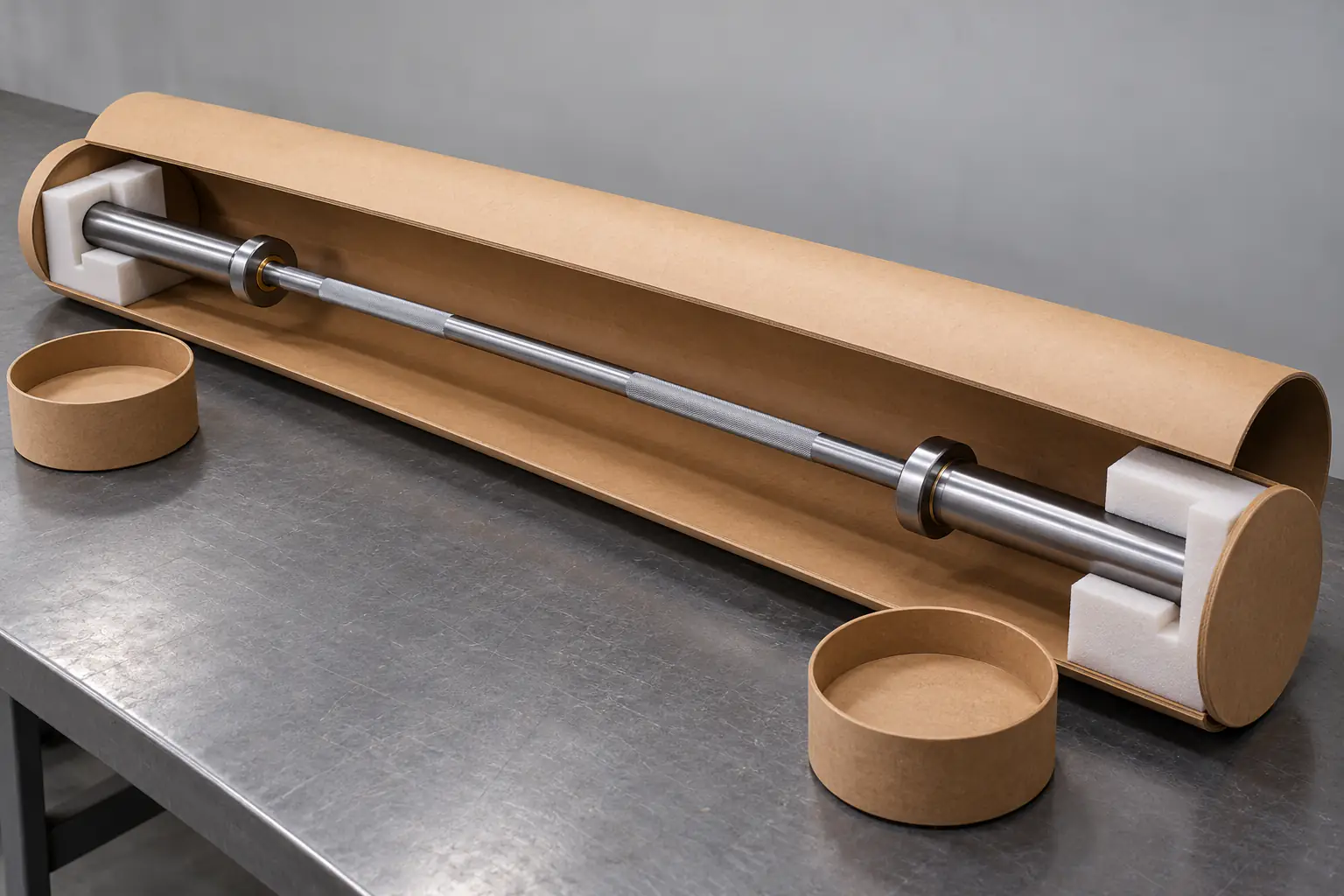

Long bars can build momentum inside a loose package. End blocks or retainers should locate the product without pressing on a removable end cap, bearing shield or other sensitive feature. The closure must resist the expected handling without metal parts breaking through it.
Foam alone is not automatically adequate. Its density, contact area, recovery and position matter, as does the clearance around each sleeve. Ask for a section view or opened sample so the team can see which surface carries the load. There is no universal end-block material or thickness for every bar and route.
Support the full length as a unit load
Support the full length as a unit load
Individual tubes can still fail when they overhang a pallet, bridge a large gap or receive a point load from straps and forks. The pallet or frame, tubes, separators, straps and stretch wrap work as one system. Long packages should be prevented from rolling while fork-entry and lifting points remain clear.
Agree how mixed models are separated and how bundle labels remain visible. A rigid outer pack is useful only when it is supported and closed correctly. For Bulk Supply orders, the factory packing instruction should show the bundle pattern as well as the single-bar pack.
Packaging decision table
| Control point | What the buyer should specify | Evidence to retain |
|---|---|---|
| Bar boundary | Approved model, dimensions, finish and end construction | Drawing or golden-sample revision |
| Inner protection | Clean contact materials and protected knurl and sleeves | Material note and opened-pack photos |
| Axial restraint | End blocks or stops that avoid sensitive components | Section view and movement check |
| Outer package | Tube or carton, closure and end protection | Pack drawing and sealed-sample photos |
| Unit load | Support, anti-roll method, straps and fork access | Pallet pattern and loading photos |
| Receiving | Package evidence and product checks | Carton or pallet ID with inspection record |
Separate surface protection from moisture control
Separate surface protection from moisture control
Inner materials should be clean, non-abrasive and compatible with the shaft and sleeve finish. Protect knurling from rubbing through thin film, but avoid loose material that can catch in collars or closures. Pack only dry products; wet paper, trapped condensation or incompatible adhesive can mark a finish even when the carton looks intact.
Desiccant or barrier film should be used only as part of a defined pack with suitable sealing and storage conditions. It is not a substitute for a dry product, clean handling or route control. Link the approved inner wrap to the same product revision used for the Custom Logo sample.
Validate a representative shipping unit
Validate a representative shipping unit
A useful trial uses the production-equivalent bar, inner pack, closures, outer pack and unit-load configuration. ASTM D4169 provides a framework for distribution-cycle testing, while ISO 12048 covers compression and stacking tests on complete filled transport packages. The buyer and supplier still need to choose a route-appropriate sequence and acceptance criteria.
Do not describe a generic test as product certification or invent one drop height for every shipment. Record the packed configuration, conditioning, test sequence and before-and-after observations. If raw wood packaging or dunnage is used internationally, confirm applicable ISPM 15 treatment and marking separately; that phytosanitary requirement does not prove mechanical strength.
Inspect and preserve evidence at receiving
Inspect and preserve evidence at receiving
Before opening, photograph the shipping label, full package, both ends, wet areas, punctures, crushed zones and any bend in the outer pack. Open carefully and keep the closures and internal supports until product inspection is complete. This evidence helps separate packaging damage, handling damage and a product issue.
Verify model identity, visible finish, end-cap condition, sleeve rotation and straightness using the agreed methods. Quarantine suspect bars instead of attempting to straighten them or polish away marks. A receiving checklist should state who records the finding and how it is linked to the carton or pallet ID.
Freeze the pack for OEM and Private Label reorders
Freeze the pack for OEM and Private Label reorders
For OEM and ODM programs, include the packaging bill of materials, assembly photos or drawings, label fields and approval revision in the golden sample record. Custom Logo artwork on cartons or end labels must stay readable without covering handling or regulatory marks. Private Label presentation should never weaken end protection.
Recheck the pack when the bar geometry, finish, end cap, tube, end block, pallet pattern, route or carrier changes. ChinaFreeWeight can review the product and packaging specification together for distributors, importers, brands and gym projects, then keep the approved configuration attached to Bulk Supply reorder documents.
Ten points to approve before release
- Confirm the exact bar revision and packed orientation.
- Check that all product-contact materials are clean and compatible.
- Verify that the bar cannot gain damaging axial movement.
- Keep closures away from removable or sensitive end parts.
- Protect shaft, knurl, sleeves and finish from rubbing.
- Support long packages without overhang or concentrated loads.
- Define the bundle, strap and fork-entry arrangement.
- Approve readable SKU, quantity and handling identification.
- Record the representative validation plan and acceptance criteria.
- Give receiving teams a photo and quarantine procedure.
Continue your barbell sourcing review
- Commercial Olympic barbell buying guide
- Bar straightness and sleeve runout
- Sleeve retention and end-cap inspection
- Barbell finish and coating guide
- OEM sample approval process
- Pre-shipment inspection guide
- Discuss your packaging specification
Frequently asked questions
Is a heavy cardboard tube enough for an Olympic barbell?
Not by itself. Tube grade matters, but so do axial restraint, end closures, inner contact materials, full-length support and the distribution route. Approve the assembled shipping unit.
Should foam be placed at both ends?
End protection is often useful, but its material and location must suit the bar. It should locate the product without loading a removable end cap or other sensitive component.
Can a packaging trial prove that the bar is straight?
No. The trial evaluates the packed shipping unit under an agreed sequence. Straightness is a separate product characteristic that should be recorded before and after with a defined inspection method.
Does an export order need a wooden crate?
Not automatically. The decision depends on route, handling, quantity and the complete unit-load design. When raw wood is used internationally, applicable ISPM 15 requirements must be handled separately.
What should I send a manufacturer for a packaging quotation?
Send the bar models, quantities, dimensions, finishes, logo and label needs, destination route, single-pack or pallet preference, and the acceptance checks you expect.
