Quick answer: identify the moving part before judging the bar
A loose or rotating logo disc is not automatically the same failure as a sleeve moving off the shaft. Stop using a suspect bar, keep its carton identity, and observe the end cap, visible retaining feature, sleeve, flange and shaft separately. Record axial movement, radial play, rubbing, noise, impact marks and whether the outer ring appears fully seated. Do not pry the end open to diagnose a saleable unit.
For a bulk order, require the retention architecture for the exact model, an assembly revision, production-equivalent samples and a written incoming check. ChinaFreeWeight can review OEM, ODM, Custom Logo, Private Label and Bulk Supply requirements by model; no universal ring, bolt or end-cap design proves every bar.

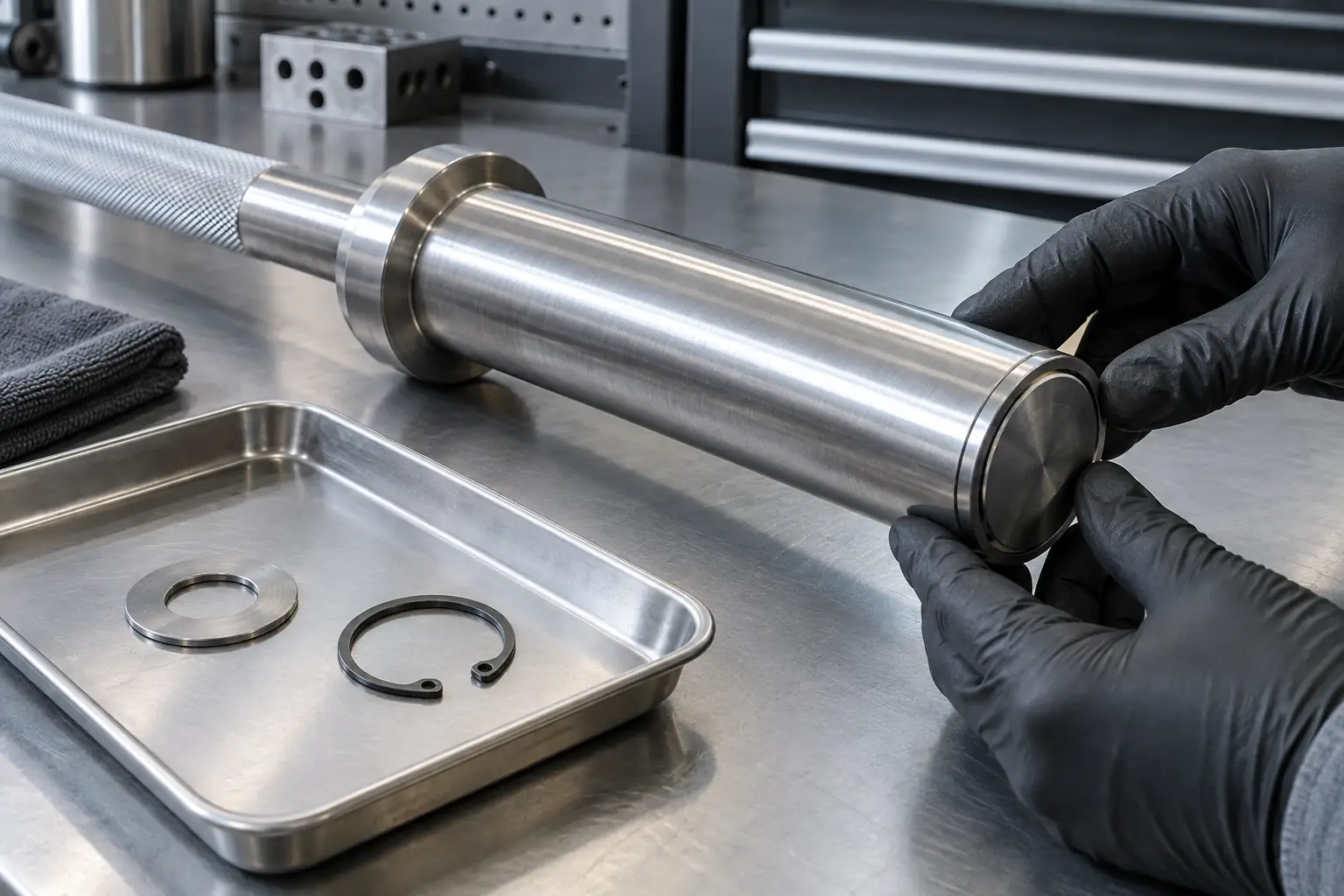

Separate the end cap, retainer and rotating sleeve
The sleeve carries plates and rotates around the shaft. Washers, bushings or bearings manage spacing and movement. A retaining ring, shoulder bolt or another engineered feature may control axial retention. The visible end cap may close the opening, carry identification or help exclude debris, but its role depends on the model.
Write each component and function on the approved assembly record. If the buyer calls every circular part an end cap, a supplier can answer a retention concern with a cosmetic replacement while the actual retaining feature remains unverified.
Use model-specific construction evidence
Current manufacturer instructions demonstrate variation. One Ivanko sleeve instruction shows washers, internal and external snap rings and a press-fit plug, while noting that other named models use a shoulder bolt. Rogue's assembly guide shows its own washer, snap-ring and end-cap sequence. These documents explain those models only.
Ask the quoted factory for the actual assembly drawing, bill of materials, groove or thread definition, retainer identity, washer stack, sleeve interface and service policy. Never copy a competitor sequence into a different bar or assume that two similar-looking ends share the same load path.
Approve samples that represent every assembly family
Choose samples across every shaft diameter, sleeve system, bushing or bearing family, finish, end treatment and supplier change in the order. Record bar identity, mass, revision, sleeve length, visible end geometry, axial observation method, spin behaviour, sound and packaging condition. Compare both ends rather than approving the better side.
Keep an intact reference bar and controlled photographs. If a separate engineering sample is authorized for disassembly, label it clearly and retain the component order and inspection record. A disassembled sample cannot by itself prove that production units were assembled the same way.
Barbell sleeve retention specification table
| Control line | What to define | Evidence to retain |
|---|---|---|
| Assembly architecture | Sleeve, interface, spacers and retaining route | Assembly drawing and revision |
| Retaining feature | Ring, bolt or model-specific alternative | Part identity and approved sample |
| Groove or thread | Location, condition and inspection access | Drawing and first-piece record |
| End cap | Function, fit, material, artwork and orientation | Finished sample and artwork record |
| Axial observation | Point, method, force and accepted result | Paired-end inspection record |
| Rotation and sound | Separate method for spin, rubbing and noise | Comparison record |
| Change control | Components, machining, lubricant and supplier | Written notification and approval |
| Packing and trace | End protection, SKU, lot and carton link | Pack sample and loading record |

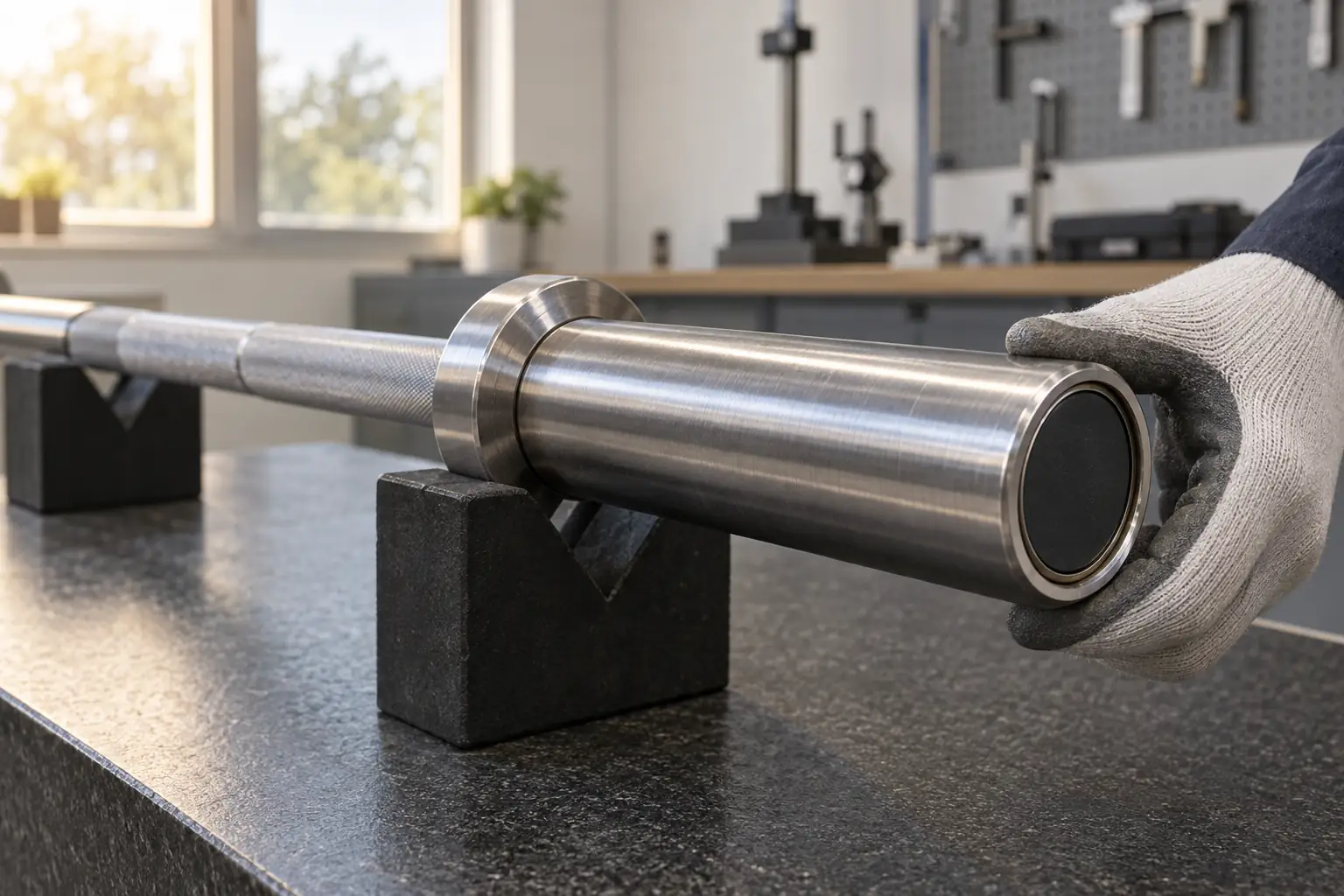

Inspect receiving condition without dismantling saleable bars
Before removing protective material, photograph the tube, end blocks, impact marks and carton label. After unpacking, verify identity and look for a displaced end cap, an exposed or uneven ring, a changed end gap, sleeve travel, scraping, metal fragments or different behaviour between left and right. Use only the handling method agreed with the supplier.
Quarantine a suspect bar and nearby carton samples. Do not hammer a cap back, substitute a hardware-store ring, add adhesive or continue loading the bar while asking for advice. Send fixed-angle photographs and video with the SKU, lot, carton and observed movement so the manufacturer can decide the next controlled step.
Keep retention checks separate from spin and straightness
Long free spin does not prove secure axial retention, and short spin does not prove a loose retainer. Lubricant, seals, bushing or bearing design, preload, contamination and temperature can change rotation. Shaft runout, sleeve eccentricity, axial play and end-cap movement are different observations.
The inspection plan should name the observation point, hand force or fixture, bar orientation, conditioning and comparison reference. Record actual findings rather than using one word such as wobble. That distinction prevents a spin video from replacing a retention inspection or a floor-roll check from releasing an assembly concern.
Control branded end caps and assembly changes
A custom end cap can carry a logo or model identity, but decorative artwork must not hide the retaining-ring groove, required access or traceability. Approve material, thickness, fit, orientation, print or engraving method and replacement policy together with the complete sleeve assembly.
Require written notice before changing the retainer, groove, shoulder bolt, washer stack, bushing, bearing, lubricant, sleeve machining, end cap, subcontractor or end protection. An ODM geometry change needs a fresh review. Private-label packaging should protect both sleeve ends and preserve the bar-to-carton record.
Turn the requirement into an RFQ and acceptance decision
Send intended lifts, user environment, bar models, quantities, sleeve architecture, service expectations, logo scope, packaging and destination. Ask which drawings, component records, first-piece checks and final inspection evidence will be supplied. Price, MOQ and timing remain specific to the approved configuration.
The purchase record should state what triggers hold, sort, supplier review or replacement. It should also identify who may authorize service and which spare parts are model-specific. A clear decision route protects users and keeps a cosmetic issue from being confused with a retention fault.
Ten-point buyer checklist
- Identify the retention architecture for each bar model.
- Separate the end cap from the load-retaining feature.
- Approve both sleeve ends on production-equivalent samples.
- Keep an intact signed reference bar.
- Define axial, radial, spin and sound observations separately.
- Photograph tube and end protection before unpacking.
- Quarantine movement, exposed rings or impact damage.
- Use only manufacturer-authorized service procedures.
- Control logo end caps and every assembly change.
- Link inspection results to SKU, lot and carton.
Continue the Olympic barbell buying process
- Choose the complete commercial bar
- Check straightness and sleeve movement
- Compare shaft and sleeve finishes
- Review shaft-strength evidence
- Specify knurling
- Verify plate and sleeve fit
- Plan pre-shipment inspection
- Review OEM and private-label options
- Send the barbell specification
Frequently Asked Questions About Barbell Sleeve Retention
Is a loose barbell end cap always dangerous?
Not every cap retains the sleeve, but its role is model-specific. Stop use, identify what moved and obtain the manufacturer's assessment before returning the bar to service.
Can a gym push a loose end cap back in?
Do not improvise. A cap can hide a retaining feature, and an impact may involve more than the visible disc. Follow the exact model's authorized procedure.
How much sleeve movement is acceptable?
There is no transferable number for every construction. Define the point, direction, force, condition and acceptance rule for the quoted model.
Are snap rings better than bolts?
Neither name proves quality. Groove design, material, fit, assembly, protection and model evidence determine performance.
What should be checked before loading a new bar?
Confirm identity, packaging condition, both sleeve ends, visible retainers, unexpected travel, rubbing, noise, finish and any transit impact.
Can the end cap carry a custom logo?
Often yes when the design allows it, but artwork must preserve access, identification and the approved fit of the complete end assembly.
Should buyers order spare retainers?
Only model-specific parts and service instructions should be used. Agree availability, ownership and authorized service before the bulk order.
