Quick answer: approve the attachment system, not only the artwork
A custom dumbbell end cap is successful only when the buyer approves the complete interface: cap or badge material, dumbbell substrate, recess geometry, retention method, finished height, artwork, weight marking and cleaning exposure. A polished logo proof cannot show whether an insert will lift, rotate, rattle or hide a service fastener.
For OEM, custom-logo, private-label and bulk-supply projects, ask the factory to name the construction on the drawing and sample. ODM changes to the cap pocket, fixing feature or head shape need a fresh fit review. ChinaFreeWeight can evaluate these variables model by model rather than presenting one fixing method as universal.
Classify the end face before choosing a retention method
An end face may use molded-in graphics, direct laser marking, a printed or engraved plaque, an adhesive-backed badge, a press or snap-fit cover, a threaded cap, or a mechanically retained plate. Some parts are purely decorative; others cover a head fastener or form part of a service assembly. The same visual result can therefore require very different controls.
Record whether the part is intended to remain fixed, rotate for logo orientation or be replaceable. Confirm whether removal is permitted and what sits behind it. A buyer should never assume that a decorative-looking disc can be pried off safely, or that an adhesive badge is interchangeable with a structural cap.
Make the interface measurable on the drawing
Make the interface measurable on the drawing
Define cap outside diameter and thickness, pocket diameter and depth, edge clearance, seating face, concentricity reference and allowed projection or recess. For a snap, press or interference fit, identify the engaging ribs, groove or retention feature. For a screw or thread, identify the fastener and locking approach without borrowing a torque from another model.
Adhesive versions also need a controlled bill of materials: badge substrate and finish, adhesive family or part reference, carrier thickness where relevant, surface preparation, application pressure and conditioning instruction. These details prevent a reorder from silently changing from metal-to-painted metal to plastic-to-urethane while keeping the same visual proof.
Treat surface preparation as part of the joint
Treat surface preparation as part of the joint
Adhesion depends on the actual surfaces, not the adhesive name alone. Mold-release residue, oil, dust, bloom, texture, low-surface-energy plastic, paint weakness or a curved pocket can prevent full contact. ISO 17212 describes surface-preparation principles for metals and plastics, while material suppliers publish product-specific cleaning and application guidance.
Write the approved process for the exact cap and head materials, including safe cleaner, drying, contamination control and time limits defined by the chosen system. Do not add an aggressive solvent or abrasion step without confirming compatibility with urethane, rubber, paint, printing and worker-safety instructions. The production-equivalent sample must use the same preparation as the order.
End-cap decision record
| Decision | What to define | Release evidence |
|---|---|---|
| Cap role | Decorative, service cover, rotating or fixed | Assembly drawing and removal rule |
| Materials | Head surface, cap, coating and adhesive | Controlled bill of materials |
| Fit | Pocket, engagement, edge gap and finished height | Measured production-equivalent sample |
| Artwork | Logo, weight, unit, color and orientation | SKU-level signed proof |
| Exposure | Cleaning, handling, rack and packing contact | Agreed representative checks |
| Reorder | Revision, spares and change notification | Retained sample and change record |
Use evidence that represents the finished joint
Use evidence that represents the finished joint
ISO 29862 covers peel-adhesion methods for self-adhesive tapes, and ISO 29863 covers static shear adhesion under defined arrangements. Those standards are useful method references, but a result on standard steel is not an automatic pass rule for a curved dumbbell cap bonded to coated metal, rubber or urethane. The buyer and supplier still need a representative specimen, conditioning and acceptance decision.
Validate what matters in use: initial seating, edge lift, rotation or movement, cleaning compatibility, contact with racks and packaging, and condition after agreed handling or environmental exposure. State sample count, product revision, setup and observations. Avoid universal pull forces, dwell times or cycle counts unless a responsible specification for that exact design establishes them.
Control artwork and weight identification as separate functions
Control artwork and weight identification as separate functions
The brand mark and the weight value do not have the same job. Approve the correct kg, lb or dual-unit designation for every SKU, plus reading direction, contrast, safe area, color reference and minimum clear space. Small heads may require a different layout rather than shrinking one master artwork until the value becomes unreadable.
Link the approved art file to the cap drawing and product SKU. Check both ends when the design is meant to match, and define whether logo orientation matters on a fixed or rotating plate. A beautiful cap with the wrong weight, unit or revision is a receiving failure even when its adhesion is sound.
Inspect without turning the receiving check into a pry test
Inspect without turning the receiving check into a pry test

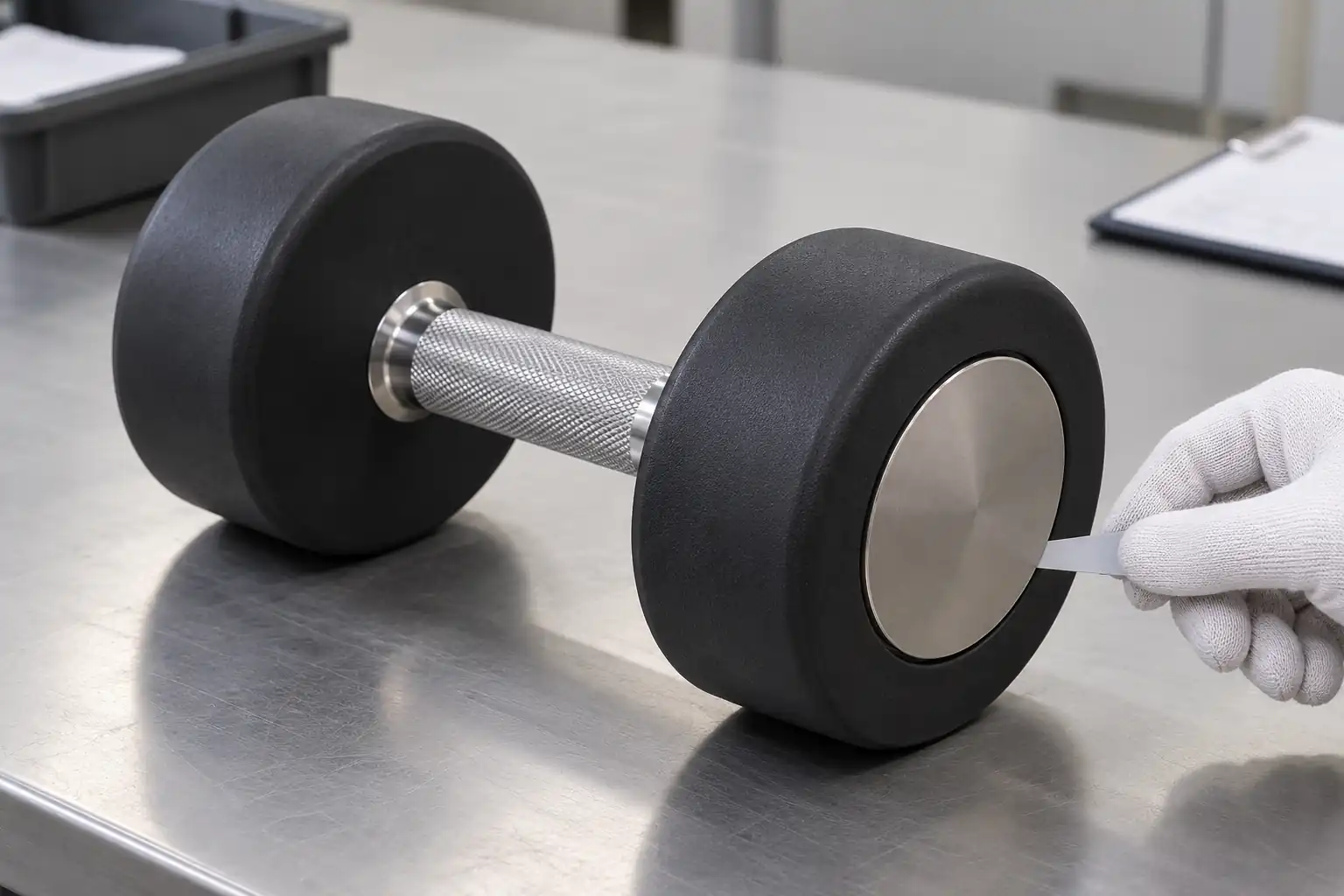

At receiving, compare identity, material, finish, position, flushness, perimeter gap and artwork with the approved sample. Look for lifted edges, bubbles, trapped residue, rocking, free rotation where it is not intended, cracks, scratches and covered markings. Use light, a straightedge or a non-damaging feeler only when the agreed method permits it.
Do not improvise with knives, solvents or destructive pulling on saleable goods. Define lot coverage across weights, cartons, production periods and both dumbbell ends; then quarantine affected units and trace the pattern. A single loose badge may be handling damage, while repeated lift at the same edge can point to fit, preparation, application or packing.
Plan packing, spares and reorders before production release
Plan packing, spares and reorders before production release
The cap face can rub against a carton, rack cradle, neighboring dumbbell or protective insert. Approve the orientation and contact points of bags, separators and cartons on a packed production-equivalent sample. Packaging should protect the badge without transferring adhesive residue, trapping an incompatible chemical or loading one edge during transport.
For distributors and fitness brands, decide whether replacement badges or caps will be supplied, how they are identified and whether field replacement is authorized. Keep the artwork, material, retention method, packing and approved sample under one revision. Send ChinaFreeWeight the model, weight range, quantities, market units, logo files and use environment so the factory can review an OEM, ODM or private-label bulk program honestly.
Ten items to place in the purchase file
- Identify the dumbbell model and every weight SKU.
- State whether the cap is decorative, fixed, rotating or serviceable.
- Approve cap, head-surface and adhesive materials by reference.
- Dimension the pocket, edge gap and finished seating height.
- Define cleaning, preparation, application and conditioning steps.
- Approve logo and weight artwork separately for each layout.
- Use a production-equivalent sample for fit and exposure review.
- Write a non-damaging receiving-inspection method and coverage plan.
- Approve carton and separator contact around the end face.
- Control spares, reorders and material or process changes.
Dumbbell products and procurement guides
- Browse commercial dumbbells
- Compare PU dumbbells
- Choose a logo method
- Approve an OEM sample
- Check dumbbell construction
- Plan private-label packaging
- Discuss the end-cap specification
Frequently Asked Questions
What is the best way to attach a custom dumbbell logo cap?
There is no universal best method. The answer depends on the model, substrate, cap role, geometry, environment, service plan and approved evidence.
Is an adhesive-backed badge suitable for a commercial dumbbell?
It can be suitable when the adhesive, surfaces, preparation, geometry and exposure are validated together. An adhesive name alone is not enough.
Does an ISO peel result prove the cap will never lift?
No. A standard method describes a test arrangement. The finished curved joint, its materials, conditioning and acceptance criteria still need project-specific review.
Can a loose end cap be replaced at the gym?
Only when the product owner provides an authorized replacement part and procedure. Do not pry off a cap that may cover a structural fastener or service assembly.
What should a buyer send for an OEM quotation?
Send the dumbbell model, weight list, quantities, market units, cap concept, materials, logo files, cleaning environment, packing needs and inspection expectations.
