Short answer: define the contact behavior, not only the label
A smooth sleeve usually gives easier, quieter loading, while a deliberately grooved sleeve can create more contact texture for plates and collars. Neither description is a complete purchasing specification. Groove depth and spacing, coating, sleeve diameter, plate-insert finish, collar design and contamination all change what a buyer actually feels and hears.
Choose the surface with the real plate and collar families used by the market, then approve a production-equivalent bar. ChinaFreeWeight is a factory and can review OEM, ODM, Custom Logo, Private Label and Bulk Supply programs, but the quoted surface must be tied to the exact bar revision rather than a generic promise that one style is better.

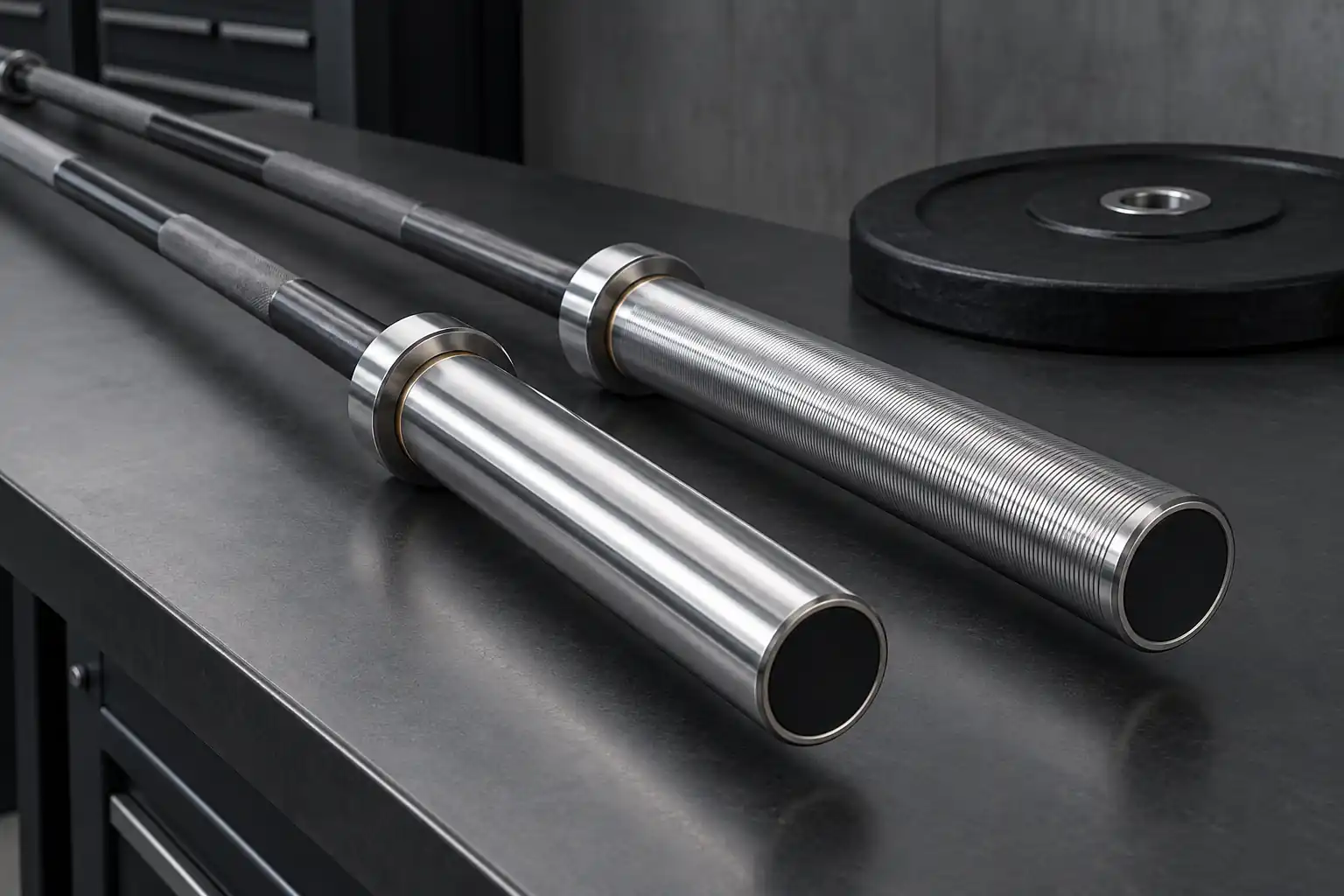

Separate smooth machining, fine tool marks and intentional grooves
A machined sleeve is never described responsibly by a photograph alone. A surface sold as smooth may still show fine circumferential tool marks that do not noticeably catch a compatible plate insert. A grooved or ribbed sleeve has an intentional repeating profile. Deep thread-like forms are a different buyer experience from a low-profile texture.
Write the approved condition with close photographs, a retained sample and, when function requires it, a controlled surface-texture or profile requirement. ISO 21920 provides terms and parameters for profile-based surface texture, but it does not set a universal barbell-sleeve value. The buyer and factory must define the feature and acceptance rule for the actual product.

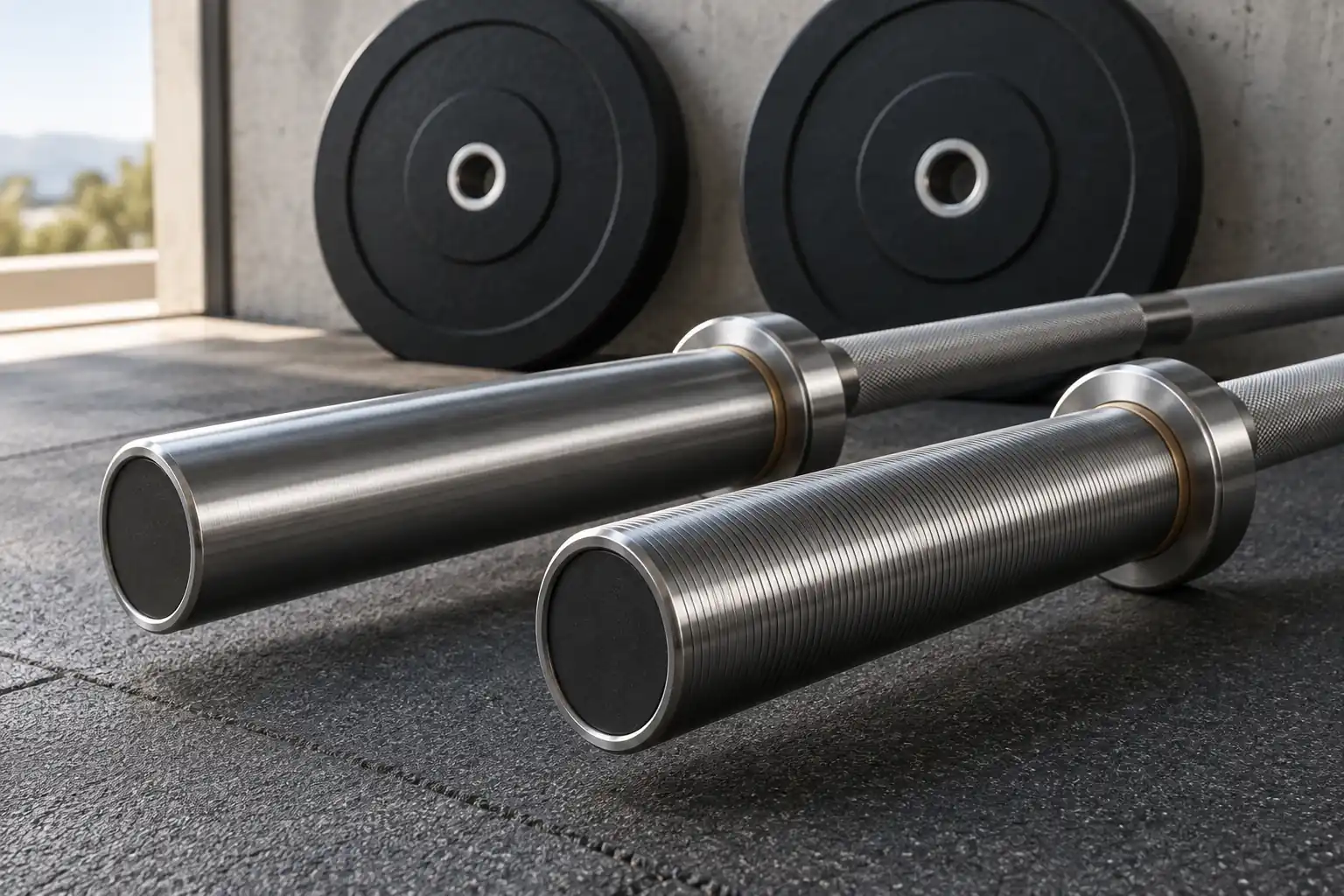

Start with the plate insert and collar combination
A sleeve does not work alone. A machined steel hub, a formed insert, a coated iron bore and a polymer-lined collar contact it differently. Burrs, coating build, insert shape and dirt can create drag or noise even on a visually smooth sleeve. Conversely, a fine grooved surface may load acceptably with a well-finished hub.
Select representative light, middle and heavy plates from the intended range. Include the collar model in the trial because its pad or clamp geometry may respond differently to texture. Confirm fit first; perceived grip is not a substitute for using collars where the exercise, facility rule or equipment instruction requires them.
Compare loading effort, sound and residue under one method
Clean the sleeve and plate inserts, identify every sample and use the same orientation and travel distance. Load and remove each plate slowly before repeating the normal handling pattern. Record catches, scraping, audible character, visible transfer, coating dust and any point where the insert stops. Do not turn a subjective sound preference into an unsupported decibel claim.
Repeat after an agreed service simulation only if its purpose and limits are written. A short bench trial can compare candidates; it cannot prove lifetime wear. If metal or coating residue appears, isolate which interface produced it before changing the sleeve. Abrasion can originate from the plate insert, the sleeve finish or debris between them.
Sleeve-surface decision and evidence matrix
| Decision point | What to define | Evidence to retain |
|---|---|---|
| Market use | Training style, plate changes, noise sensitivity and cleaning | Buyer brief |
| Plate interface | Insert material, bore finish and representative sizes | Named plate set |
| Collar interface | Approved collar model and contact material | Matched collar pair |
| Surface family | Smooth, fine-machined or intentionally grooved | Drawing and close photographs |
| Groove profile | Controlled zone, spacing, depth or signed reference | Profile record or retained sample |
| Finished geometry | Diameter, length, chamfer and coated condition | Inspection method and results |
| Functional comparison | Loading, removal, catches, sound and residue observations | Controlled comparison sheet |
| Change control | Machining, finish, tool and sample reapproval triggers | Revision log |
Specify the finished sleeve rather than the cutting operation
The purchase drawing should identify finished diameter and length, surface family, groove or tool-mark zone, transition at the collar, chamfer, coating, excluded areas and any reference profile. Inspect after the final finish because plating or conversion treatment can alter both contact and appearance. Link the sleeve requirement to the separately approved plate-bore fit.
Do not copy an isolated roughness number without defining the measurement direction, filter, instrument, location and acceptance rule. A buyer who mainly needs a functional result may use a signed limit sample plus a repeatable plate-and-collar comparison. A buyer who needs a profile value should place that control on a drawing prepared and reviewed by qualified technical staff.
Inspect production lots for consistency and damage
Sample bars across cartons and production periods. Verify model identity, finished diameter, surface pattern, coating, chamfer, burrs, dents, corrosion and end-cap condition. Then use the approved plate and collar set to check loading and removal on both sleeves. Compare left and right sides without confusing external texture with the internal rotation system.
Quarantine sleeves with sharp ridges, isolated raised material, coating blisters or damage that prevents normal loading. Record cosmetic variation separately from functional nonconformity. Cleaning or polishing a rejected surface before disposition destroys useful evidence and may change the approved geometry.
Freeze the approved texture for reorders
Retain the bar revision, sleeve drawing, finish specification, profile or reference sample, matched plate and collar set, photographs and inspection record. Require notice before changing sleeve material, machining program, tool, groove geometry, polishing step, coating supplier, film target or chamfer. A similar-looking sleeve may feel different after one of these changes.
Custom end caps and logos belong in the same revision package, even though they do not define the contact surface. For a reorder, identify the earlier approval and state whether the buyer expects exact continuity or authorizes a new comparison sample. This protects distributors and private-label brands from silent changes that appear only after plates reach the market.
Ten checks before approving a bulk bar order
- State the market, training use and facility noise concern.
- Name the exact plate inserts and collars used for approval.
- Define smooth, fine-machined or grooved in observable terms.
- Control the groove zone, transition and finished chamfer.
- Confirm sleeve diameter after the final surface treatment.
- Compare both sleeves with light, middle and heavy plates.
- Record loading, removal, catches, sound and residue separately.
- Inspect burrs, dents, coating defects and sharp isolated ridges.
- Keep the signed bar, matched plates, collar and photographs.
- Require reapproval after machining, tooling or finish changes.
Continue the Olympic bar specification
- Choose the complete commercial Olympic bar
- Verify plate-bore and sleeve fit
- Compare shaft and sleeve finishes
- Review bearing and bushing rotation
- Specify matching barbell collars
- Check straightness and sleeve movement
- Inspect sleeve retention and end caps
- Plan OEM and private label
- Review factory controls
- Send the bar requirement
Frequently Asked Questions About Barbell Sleeve Texture
Are grooved barbell sleeves always better at holding plates?
No. Groove profile, plate fit, collar design and movement all matter. Use the correct collar and verify the exact combination instead of relying on the sleeve label.
Why are grooved sleeves louder when plates are loaded?
Repeated surface features can interact with a metal insert and create more vibration or scraping. The insert finish, coating, debris and handling speed also affect the sound.
Does a smooth sleeve mean a mirror-polished surface?
Not necessarily. It may retain fine machining lines. Define what may be visible and what may catch a compatible plate rather than relying on the word smooth alone.
Can grooves damage coated plate inserts?
An aggressive or defective interface may create wear, but the source must be checked. Test the actual plate insert, sleeve finish and cleanliness together before assigning cause.
Do IWF or IPF rules require one sleeve texture for every commercial bar?
No universal commercial choice follows from competition dimensions. Apply current federation rules only when the exact competition scope requires them, then specify the product separately.
Can surface roughness be measured on a barbell sleeve?
Yes, with an agreed profile method, location, direction and parameter. The value still needs a model-specific acceptance rule and functional correlation.
What should an OEM buyer keep for a reorder?
Keep the controlled drawing, finish revision, retained bar, matched plates and collars, photographs, comparison record and written change-notification requirements.
Define the sleeve before requesting production
Send the bar use, plate and collar references, preferred sleeve behavior, finish, branding and inspection needs. ChinaFreeWeight will review a factory-feasible specification for the exact model. Discuss an Olympic bar project.
