Short answer: weigh the exact assembled bar against a written limit
A label saying 20 kg or 15 kg is a nominal specification, not a measurement record. A bulk buyer should define what is included in the result, use a scale suitable for the complete assembled bar, agree the permissible deviation, and sample production across time and cartons. The reading belongs to one identified bar and method; it should never be inferred from shaft dimensions or component drawings alone.
ChinaFreeWeight is a factory serving OEM, ODM, Custom Logo, Private Label and Bulk Supply programs. We can review a model-specific mass target and inspection route, but there is no responsible universal tolerance for every training, multipurpose, powerlifting and weightlifting bar. The contract must identify the product family, market and required evidence.
Define assembled mass before discussing tolerance
For purchasing, bar mass should normally refer to the finished assembly supplied for use: shaft, sleeves, bushings or bearings, retaining parts, end caps, finish and the lubricant present in the approved construction. Loose competition collars, packaging, protective caps and accessories are excluded unless the order expressly says otherwise. Record whether any removable item is included so factory and buyer do not compare different boundaries.
Tolerance is the allowed difference between nominal and measured mass under the agreed method. State it as an upper and lower limit or another unambiguous rule, with units and rounding. Do not copy a plate tolerance or a branded competitor's figure. A model can be sold as a 20 kg bar while its declared commercial tolerance differs from a certified competition model.
Keep competition rules inside their real scope
The IWF equipment page identifies men's and women's competition bars at 20 kg and 15 kg and requires approved equipment within IWF competition. The current IPF rulebook defines its recognized powerlifting bar together with collars as 25 kg. Those statements describe federation equipment systems; they do not automatically certify a general gym bar, a technique bar or a private-label multipurpose model.
If competition use is mandatory, cite the current federation document, approved-equipment requirement and exact model. For ordinary commercial supply, write the target mass and tolerance directly into the purchase specification. One current Eleiko competition-bar sheet, for example, publishes a tight model-specific tolerance, while the same manufacturer publishes wider tolerances for some training bars. This contrast is evidence that buyers must compare exact SKUs, not brand names.

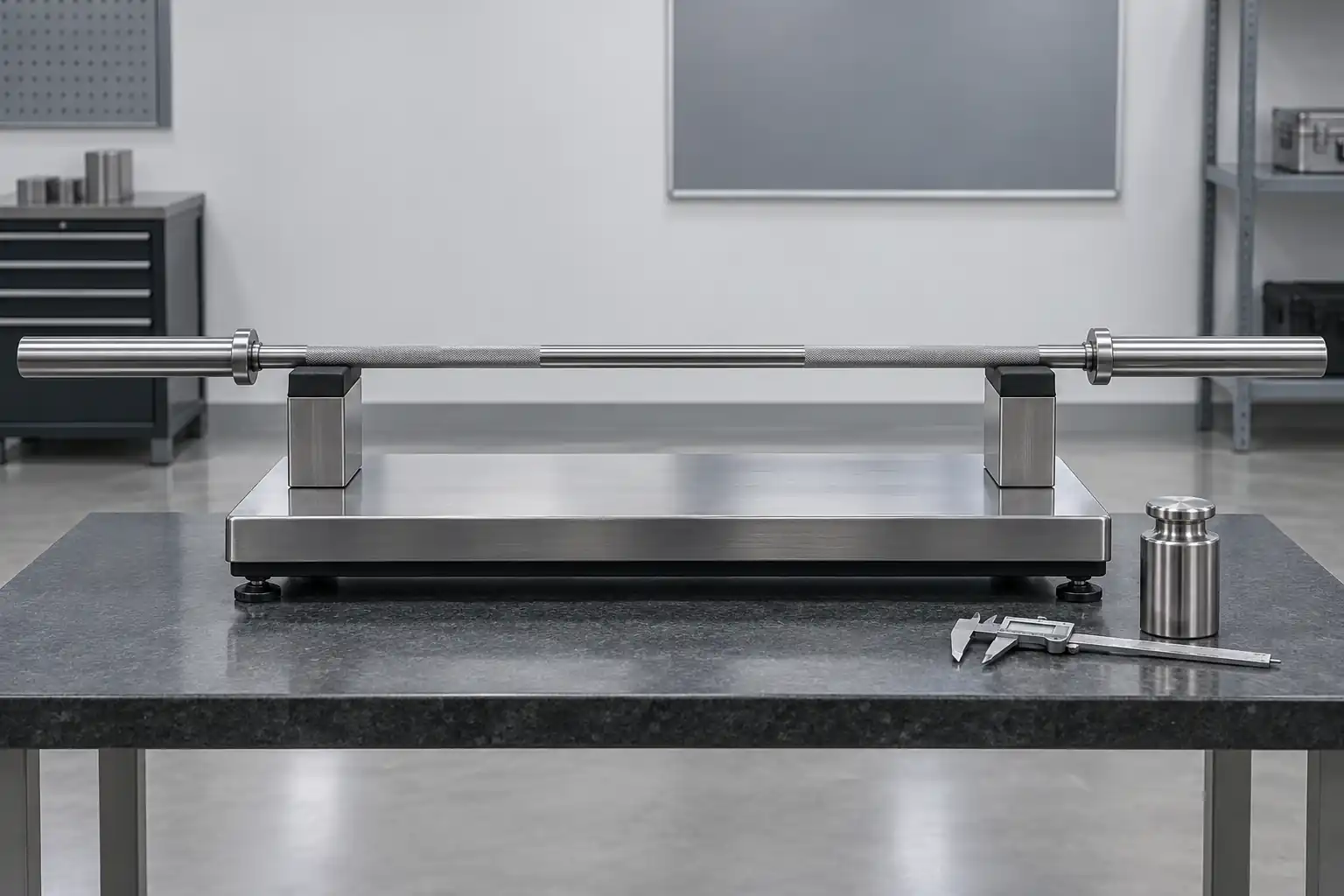

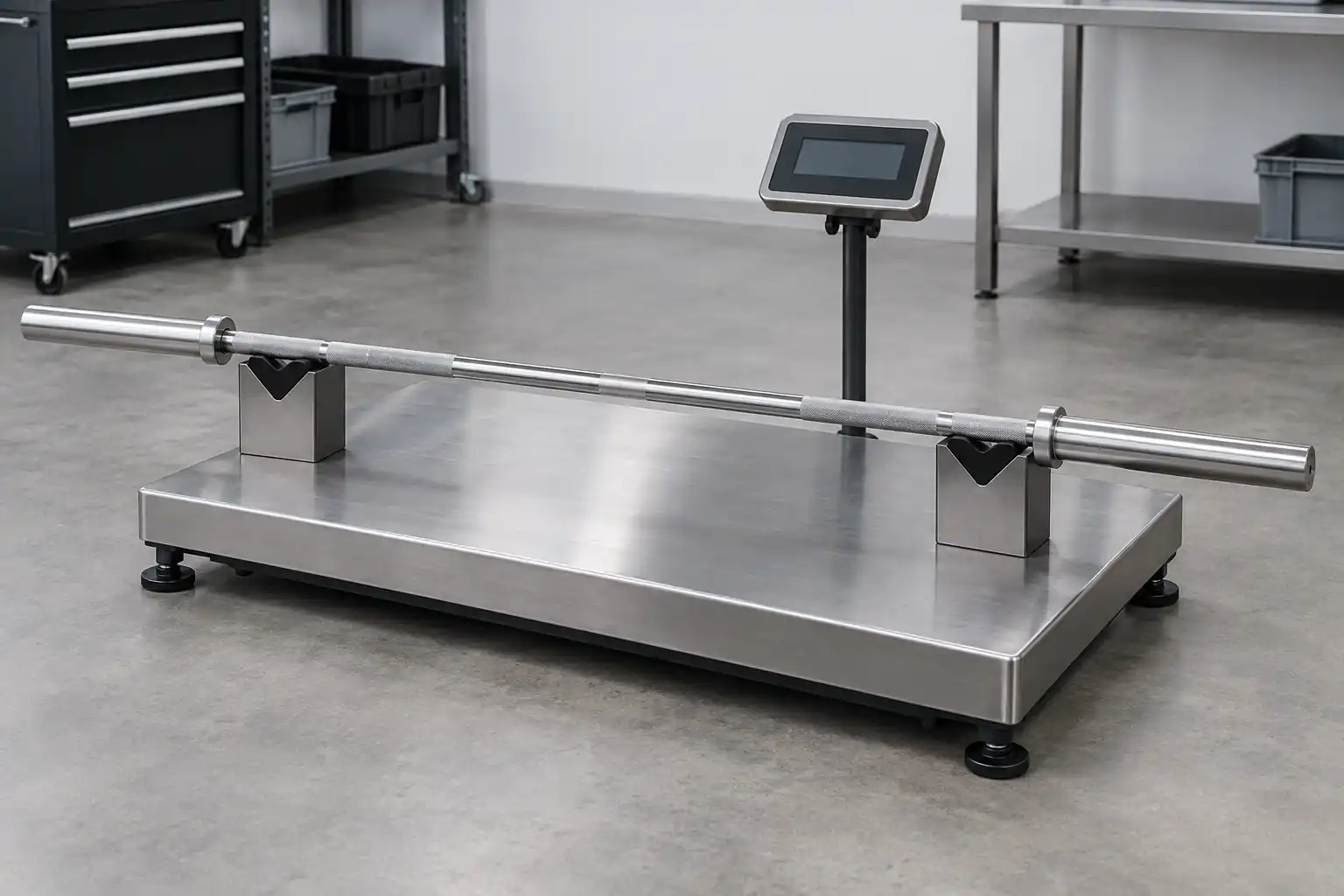

Choose a scale and support method that fit a long bar
The scale must have enough capacity, resolution, verified performance and a platform or fixture that supports the whole bar without touching the floor, wall or a second independent surface. Resolution is not the same as accuracy. NIST guidance distinguishes displayed scale division from verification scale division and warns that extra digits do not by themselves prove a better result. Use locally valid metrology and calibration requirements for the receiving market.
A practical method records scale identity, status, zero check, reference check, support blocks, tare method, bar orientation, stabilization time, repeated readings and rounding. Both supports must transfer load to the same weighing system. If a long platform is unavailable, a qualified metrology provider should design a traceable alternative; adding two casual household-scale readings creates avoidable uncertainty.
Barbell mass specification and evidence matrix
| Decision | What to write | Evidence to retain |
|---|---|---|
| Model boundary | Exact bar family, nominal mass and intended use | SKU and drawing revision |
| Included assembly | Shaft, sleeves, rotation and retention parts | Bill of materials |
| Excluded items | Collars, packaging and removable protectors | Method note |
| Acceptance rule | Upper and lower limit, units and rounding | Signed specification |
| Scale | Capacity, resolution and verification status | Equipment record |
| Fixture | One weighing system, supports and tare method | Method photograph |
| Production sample | Cartons, times, models and selection rule | Sampling record |
| Reorder control | Components and processes that trigger review | Change history |
Understand where assembled mass variation comes from
Shaft stock, machining, knurl removal, sleeve length and wall section, flanges, bushings, bearings, fasteners, retaining rings, end caps and surface finish all contribute to the finished mass. A small change to a sleeve component can move the result even when overall length and grip diameter still match the drawing. Rework, mixed components or an unapproved substitute can also separate one bar from the rest of its lot.
Mass is only one acceptance characteristic. A bar can meet its target mass and still fail straightness, sleeve retention, rotation, knurl position, finish or packaging requirements. Conversely, correcting mass by adding an undocumented part or excess material is not a valid remedy. Investigate the component and process cause, then confirm that the corrected assembly remains consistent with the approved construction.
Sample across production and make the report reproducible
For a first order, select bars from different assembly periods, component lots and cartons rather than one convenient stack. Cover every model, mass class, shaft or sleeve family and any special finish. The sampling plan should define how many units are checked, how they are chosen, whether repeat measurements are required and what happens when a result crosses the limit.
The report should show SKU, bar serial or sample code, nominal mass, permitted range, individual readings, unit, scale identification, verification status, method revision, date, operator and disposition. Keep photographs as supporting context, not a substitute for readings. If a buyer uses receiving data to challenge a pre-shipment result, first reconcile the scale, support, tare, rounding and included components.
Connect private-label mass control to change and reorder control
The approved sample, bill of materials, drawing, finish, mass record, artwork and packaging should share a revision. Custom logos and end caps may be cosmetic, but a changed end-cap construction or insert can affect mass. ODM changes to shaft, sleeve, rotation system or retention require technical review; OEM artwork should never hide the model and lot identity needed for traceability.
For reorders, require notice before changing steel source, shaft or sleeve machining, bearings, bushings, fasteners, end caps, coating system or component supplier. Verify the first assembled articles before full production and compare them with the retained record. Price, MOQ and lead time remain quotation-specific; the RFQ should list quantity by exact bar model and the inspection scope needed for that order.
Ten checks for barbell mass acceptance
- Identify the exact bar model and intended market.
- Define every component included in assembled mass.
- Write upper and lower acceptance limits with units.
- Select a scale suitable for the complete bar.
- Verify zero, reference check and support tare.
- Keep the bar clear of every independent surface.
- Sample production periods, component lots and cartons.
- Record individual readings without hiding outliers in an average.
- Check straightness, sleeves, finish and packing separately.
- Trigger review after any component or process change.
Continue the Olympic-bar purchase specification
- Choose a commercial Olympic bar
- Verify shaft strength evidence
- Inspect straightness and sleeve runout
- Compare bearing and bushing rotation
- Review plate weight tolerance
- Plan KG and LB ordering
- Build a comparable RFQ
- Plan pre-shipment inspection
- Plan OEM and private label
- Send the bar specification
Frequently Asked Questions About Olympic Barbell Weight
Does every Olympic bar weigh exactly 20 kg?
No. Olympic describes a product category, while nominal mass, tolerance and certification depend on the exact model. Verify the supplier's written specification.
What is the standard tolerance for a 20 kg gym bar?
There is no single universal commercial tolerance. Competition rules and approved models have defined scopes; other bars need an agreed order-specific limit.
Should collars be included when weighing a bar?
Only if the specification says so. Normally a bar assembly is measured without loose collars, while some competition systems state a combined bar-and-collar mass.
Can a bathroom scale verify a bulk shipment?
It can reveal a large discrepancy, but it is usually unsuitable for acceptance evidence because support, resolution and verification are uncontrolled.
Can two scales be placed under the bar and added together?
Not as an improvised default. Load sharing, synchronization and uncertainty need a qualified method. Prefer one appropriate weighing system.
How many barbells should be weighed?
Set a sampling plan from order size, model risk and prior performance. Spread the sample across production periods and cartons; do not publish one universal count.
Does correct mass prove that the bar is high quality?
No. Straightness, shaft properties, sleeve retention and rotation, knurl, finish, markings and packaging require separate checks.
Send a bar-specific inspection brief
Share the model, intended use, nominal mass, permitted deviation, assembly boundary, quantity, branding, packaging and required evidence. ChinaFreeWeight will review a manufacturable control plan for the exact bar. Discuss barbell mass control.
