Quick answer: choose the bar system before choosing a diameter
A shaft diameter is useful only when it is tied to a defined bar model, lifting programme, user group, knurl layout, finish and inspection method. A facility that hosts weightlifting practice, powerlifting, general strength work and coached beginners may need more than one bar family instead of one compromise for every station.
Values such as 25, 28, 28.5 and 29 mm describe different current products and rule contexts; they are not a universal quality ladder. ChinaFreeWeight can review OEM, ODM, Custom Logo, Private Label and Bulk Supply requirements after the intended use and finished measurement basis are clear.
Keep competition rules and commercial choices in their proper scope
Current IWF equipment drawings identify specific shaft diameters for its men’s and women’s competition bars. Current IPF rules allow a defined range for an approved powerlifting bar. Those documents govern their own competition settings; they do not make bars outside those figures defective, nor bars inside them automatically approved.
A 28.5 mm multipurpose shaft is also a real market configuration, but it is a manufacturer’s design choice rather than a separate universal federation class. When competition use is mandatory, cite the exact current rule and approved-equipment requirement. For ordinary gyms, choose from the actual lifts, members and operating plan.
Define what diameter is being measured

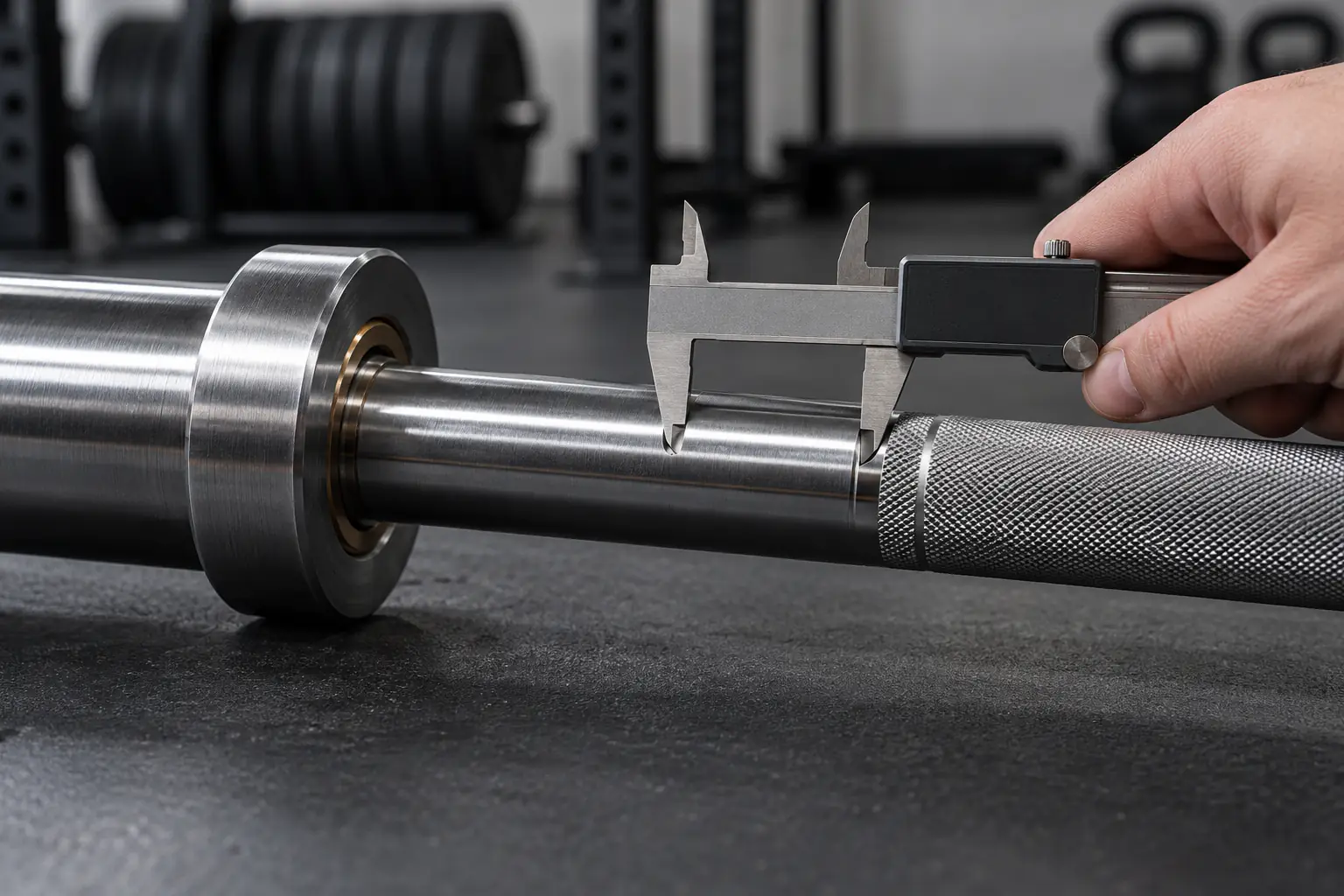

The purchase drawing should distinguish the smooth shaft reference, the knurled envelope, grip marks, centre knurl, transitions and any coating mask. State whether the quoted value refers to base metal before finish, finished smooth diameter or the maximum envelope across knurl peaks. These are not interchangeable readings.
Specify the measurement zone, instrument type, contact geometry, orientation, temperature or conditioning where relevant, resolution and recording rule. Take readings around more than one axis and along agreed locations so ovality, taper or a local coating build-up is not hidden by one convenient result.
Barbell shaft diameter decision table
| Decision field | Define before quotation | Approval evidence |
|---|---|---|
| Bar role | Weightlifting, powerlifting, mixed use or technique | Named model and use plan |
| Diameter basis | Base metal, finished smooth zone or knurl envelope | Drawing and measurement method |
| Measurement zone | Locations, axes and excluded transitions | Recorded production readings |
| Grip system | Knurl pattern, marks, centre and smooth zones | Finished sample and map |
| Finish | Material, coating and masking route | Approved surface reference |
| Complete behaviour | Lifts, users, rotation and expected handling | Representative use review |
| Lot control | Sampling, instrument, records and disposition | Inspection report |
| Change control | Processes that require notice and reapproval | Revision history and retained reference |
Evaluate diameter together with knurl, finish and complete-bar behaviour
A one-millimetre difference changes circumference and may be perceptible in the hand, but the experience also depends on knurl depth, pitch, finish, chalk, hand size and exercise. A smaller nominal shaft with a sharp completed knurl can feel more demanding than a larger shaft with a moderate pattern. Approve the finished sample, not an isolated number.
Diameter also contributes to bending response, yet steel properties, heat treatment, distance between supports, sleeve and shoulder geometry, load position and complete length matter too. Do not infer whip, stiffness, durability or load capacity from diameter alone; keep strength evidence and complete-bar testing as separate approval items.
Approve representative users and bar families
Test the proposed bar in the lifts it is intended to serve, with the facility’s chalk and cleaning policy. Include representative users rather than treating one buyer’s hand preference as a universal ergonomic result. Record grip comfort and handling as observations linked to the exact sample, while dimensions remain measured acceptance fields.
If the order contains men’s, women’s, technique, multipurpose or power bars, approve each construction family separately. Verify that weight, length, grip marks, centre knurl, rotation, finish and end identification match the planned role so staff can distinguish bars without relying on shaft diameter alone.
Inspect production after finishing and protect change control
Bulk inspection should confirm model identity, drawing revision and finished shaft at distributed positions across the lot. Check diameter records alongside straightness, knurl zones, finish coverage, grip marks, sleeve assembly, mass, identification and packaging. A passing diameter cannot compensate for the wrong bar construction.
Require notice before changes to steel source, shaft stock, machining, knurl tooling, heat treatment, straightening, surface preparation or coating. For repeat orders, retain the approved bar record and measurement method. Custom end caps and logos must preserve model, unit and lot identity and must not cover grip or measurement zones.
Send the factory a comparable barbell brief
List market, facility type, lifts, user groups, bar family, nominal mass, complete dimensions, defined diameter basis, knurl map, grip marks, finish, rotation system, sleeve and retention construction, logo, packaging, quantity by model and inspection scope. Separate mandatory competition requirements from preferences.
As a barbell factory, ChinaFreeWeight can evaluate existing OEM configurations and controlled ODM changes, but feasibility, tooling, samples, order minimum and schedule depend on the selected construction and quantity. A clear RFQ lets buyers compare like with like without inventing a universal best diameter.
RFQ and sample-approval checklist
- Exact bar family and intended lifts
- User group and facility operating context
- Nominal and finished shaft diameter basis
- Measurement zones, axes and method
- Knurl zones, marks and centre decision
- Steel, heat treatment and finish revision
- Rotation, sleeve and retention construction
- Mass, straightness and identification checks
- Logo, end cap and packaging artwork
- Sampling, records and change-notification plan
Related barbell and purchasing guides
- Choose a commercial Olympic bar
- Specify barbell knurling
- Understand whip and stiffness
- Review shaft-strength evidence
- Inspect straightness and runout
- Compare shaft and sleeve finishes
- Verify assembled bar mass
- Plan pre-shipment inspection
- Plan OEM and private label
- Send the barbell brief
Olympic barbell shaft diameter FAQ
Is 28 mm always better than 29 mm?
No. They commonly serve different bar designs and lifting priorities; approve the complete finished model for its intended use.
What is a 28.5 mm shaft for?
It is used on some multipurpose and hybrid products, but its purpose and performance remain model-specific.
Does a thicker shaft always feel stiffer?
Diameter contributes, while steel, heat treatment, geometry, support spacing and complete construction also affect response.
Where should shaft diameter be measured?
Use the zones, axes and finished-surface basis stated on the agreed drawing; do not mix smooth diameter and knurl-peak envelope.
Can a caliper reading approve the entire bar?
No. Straightness, knurl, finish, mass, sleeves, rotation, retention, identification and packing need separate checks.
Can the factory add a custom logo?
On a suitable model, yes, after method, position, sample, identification and inspection effects are approved.
What should a wholesale inquiry include?
State use, models, quantities, dimensions, finish, rotation, branding, packaging, destination and required evidence.
Specify the complete bar, not one number
Send intended lifts, bar families, diameter basis, knurl map, finish, quantities, branding and inspection needs for a model-specific factory review. Request a barbell specification review.
