Short answer: approve the bar on the intended station
A useful lat pulldown bar is not defined by being the widest item in a catalog. The finished width, bend, usable hand zones, center connection, attachment mass and the machine's unloaded behavior must work together for the exercises and users in the facility.
For a bulk order, record the station, connector and storage arrangement, then approve a production-equivalent sample. ChinaFreeWeight is a gym-accessory factory that can review OEM, ODM, custom logo, private label and bulk supply requirements without turning one model's dimensions into a universal rule.
Specify usable width instead of a marketing label

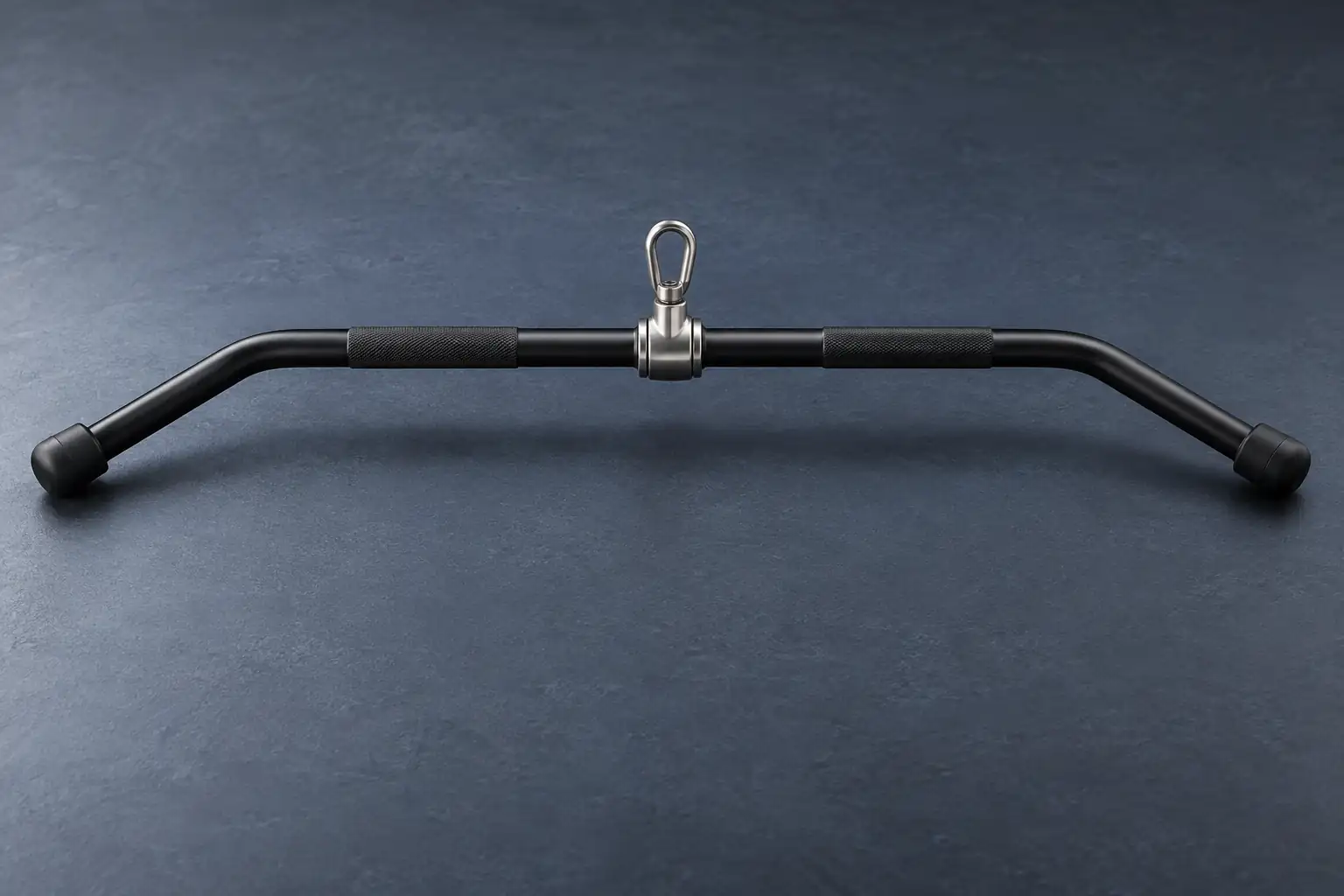

State overall end-to-end width and the boundaries of every usable grip zone. A catalog name such as wide, standard or multi-use cannot replace a drawing that identifies where hands can sit without touching a bend, collar, bumper or center housing.
Match the range to the member population, coaching plan and space around adjacent stations. A long bar needs room to travel, be carried and be stored; a shorter bar can suit rows and compact areas, but it should not be presented as equivalent to every wide-pulldown setup.
Approve bend and hand position through use
Compare more than the silhouette
Record the bend locations, angles and symmetry on the approved sample. Ask representative users to try the intended overhand, underhand and intermediate positions on the actual machine, because the same total width can produce a different wrist position when the bends begin at different points.
Grip diameter, surface and usable length still matter, but they belong in their own contact specification. An aggressive texture is not automatically commercial quality, and a smooth coating is not automatically unsuitable; the buyer needs a repeatable surface, clean transitions and a sample that remains comfortable during the planned sessions.
Define the center connection and what rotates
Check clearance, alignment and stacked height

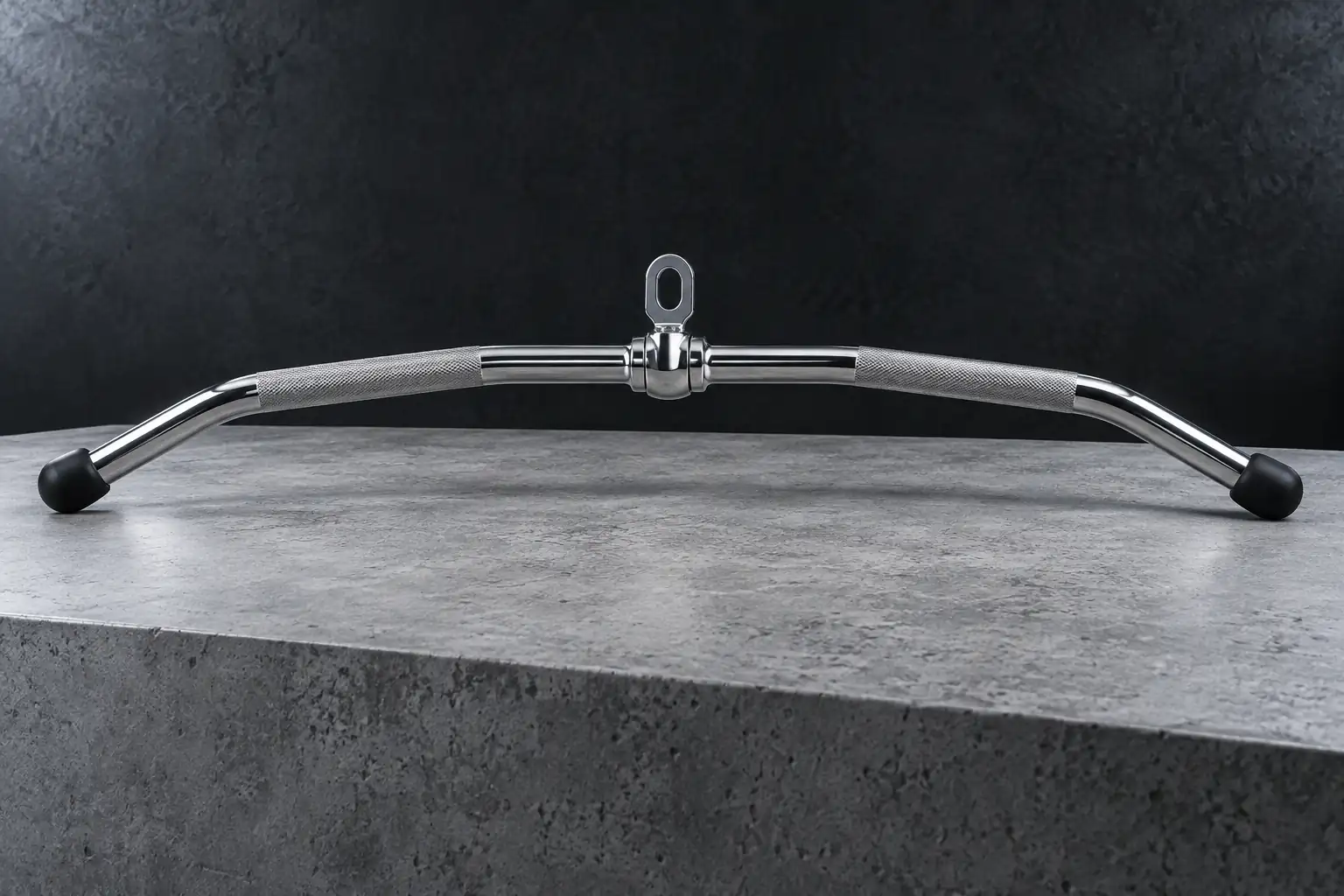

Identify whether the eye, clevis, hub or machine connector rotates, and in which direction. A moving center part can help the bar align, but it does not prove the strength of the complete assembly or guarantee compatibility with every carabiner and cable termination.
Measure the connector opening, material thickness and available closure clearance with the actual clip. Also record the vertical distance added below the cable: a heavy or tall connector can reduce start-position clearance and may change how an unloaded machine holds the attachment.
Include mass, balance, storage and unloaded behavior
A bar must be safe between sets
Weigh the finished sample and observe whether the station counterbalances it when no plate or stack load is selected. Current manufacturer warnings show that different machines behave differently, so staff should support the attachment during weight changes whenever the machine instructions require it.
Confirm how the bar rests in a rack or wall holder without loading the swivel, scuffing finishes or projecting into a walkway. End bumpers can reduce contact damage, but their retention and geometry should be inspected rather than assumed from a photograph.
Inspect the manufactured assembly, not just the polish
Trace joints, surfaces and end protection
Compare straightness, left-right bend symmetry, weld or fastener condition, center-hub movement, burr removal, grip transitions, coating coverage and both end protectors against the approved sample. Rotation should be checked through its intended travel without grit, sticking or unusual play.
Ask what evidence covers the offered finished bar and keep claims within that scope. A rating from a clip, raw bar or another model cannot be copied to the complete attachment. Define the agreed inspection method, sample basis and disposition for nonconforming pieces before production.
Lock the order and receiving plan
Control customization without hiding inspection points
The purchase specification should name the model, drawing revision, finished width, bend references, grip zones, connection, rotation, finish, end protection, marking location, packaging and agreed evidence. Receiving teams can then compare dimensions, movement, visual condition, quantity and packaging with the same reference.
Custom branding should not cover the connector, grip boundary or inspection surface. For repeat orders, require approval before changes to bar stock, bend tooling, hub parts, grip process, coating, bumper material or packaging; this protects private-label consistency without inventing a fixed order minimum or lead time.
Lat bar decision table
| Control point | Buyer action |
|---|---|
| Approve bend and hand position through use | Approve a dimensioned production-equivalent bar |
| Define the center connection and what rotates | Freeze materials, joint, rotation, finish and marking |
| Include mass, balance, storage and unloaded behavior | Sample across cartons at receiving |
| Inspect the manufactured assembly, not just the polish | Compare symmetry, connection, movement and surfaces |
| Lock the order and receiving plan | Quarantine unexplained substitutions or damage |
Send the machine, connector, exercises and storage plan
- Send the machine, connector, exercises and storage plan
- Approve a dimensioned production-equivalent bar
- Freeze materials, joint, rotation, finish and marking
Sample across cartons at receiving
- Sample across cartons at receiving
- Compare symmetry, connection, movement and surfaces
- Quarantine unexplained substitutions or damage
Continue the procurement review
- View lat pulldown handle options
- Browse commercial gym accessories
- Check cable attachment compatibility
- Verify attachment load evidence
- Specify handle diameter and grip
- Compare the triceps rope guide
- Review OEM and private-label options
- Send your machine and order brief
Frequently Asked Questions
What width should a commercial lat pulldown bar be?
There is no single width for every facility. Choose from the intended hand positions, member range, machine clearance, storage and an approved sample, then state both overall and usable dimensions.
Does a lat pulldown bar need its own swivel?
Not always. Confirm which part of the bar-machine connection already rotates and whether the proposed assembly aligns without binding on the actual station.
Can a heavy lat bar change machine behavior?
Yes. Attachment mass can affect the unloaded resting position on some cable systems. Follow the machine maker's instructions and test the production-equivalent sample.
What should be checked when the shipment arrives?
Check identity, quantity, dimensions, bend symmetry, connector clearance, rotation, burrs, grip finish, end protection, coating, packaging and any agreed evidence.
Can a factory add a custom logo or private-label finish?
A suitable model may support those options after method, position, contrast, sample, packaging and inspection criteria are approved. Branding must not obscure functional checks.
