Direct answer: buy a defined finish system, not a silver appearance

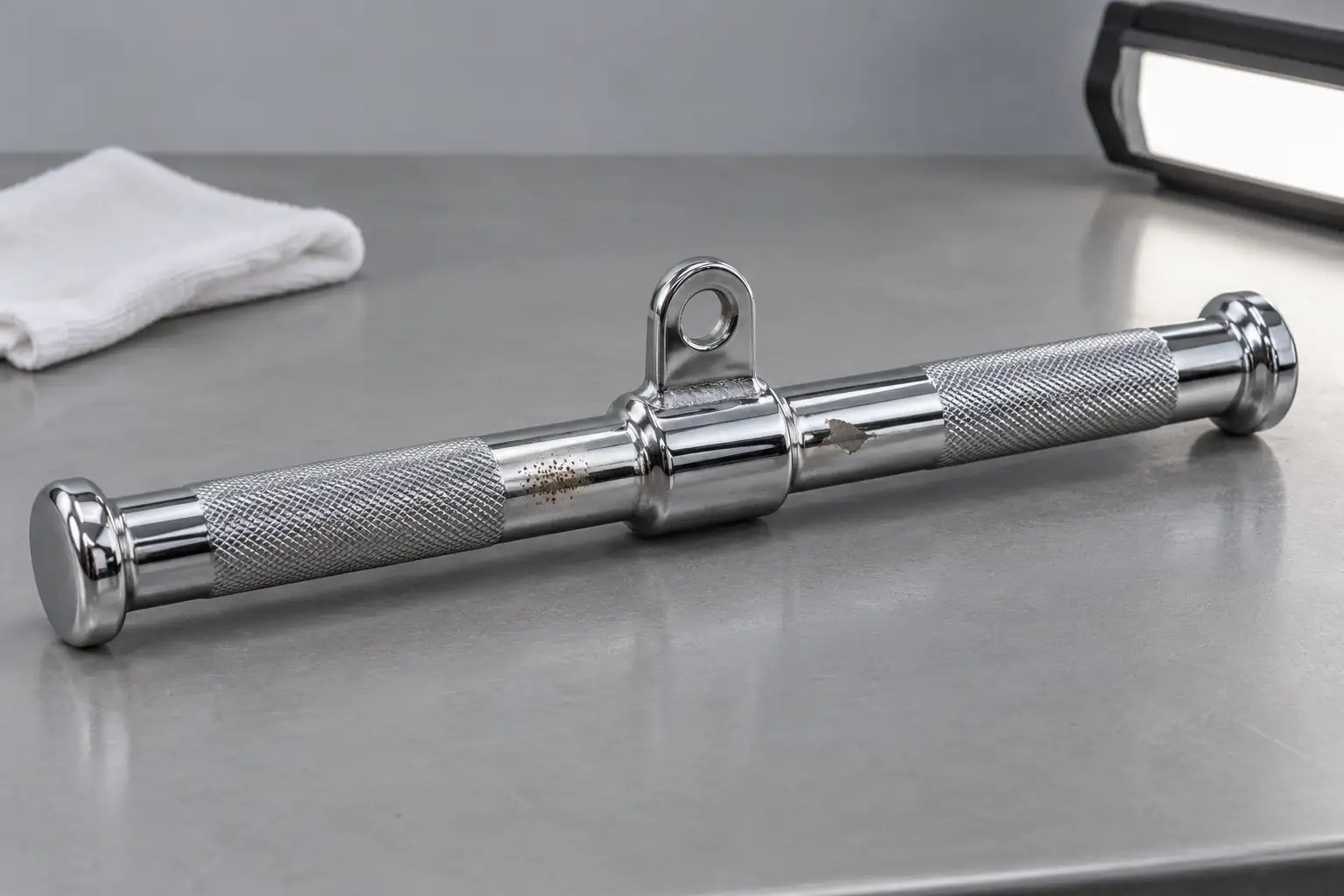

A bright cable handle may be chrome-plated carbon steel, polished stainless steel or another metallic finish. Color alone does not identify the substrate, layer sequence, surface preparation or corrosion protection. A useful purchase specification names the base material, finished surfaces, appearance reference, inspection method and action for pitting, blistering, peeling, rust or sharp lifted edges.
ChinaFreeWeight supports OEM, ODM, Custom Logo, Private Label and Bulk Supply programs as a factory partner. We can tie the released finish route to a production-equivalent sample, protected handling, packaging contact points and lot records. The finish decision must remain separate from weld integrity, load evidence and connector compatibility, because a glossy handle is not proof of structural performance.
Separate substrate, plating stack and exposed contact zones
ASTM B456 and ISO 1456 describe copper-nickel-chromium and nickel-chromium coating systems for appearance and corrosion protection on defined substrates. They do not make every bright gym attachment equivalent. The buyer should state which coating family is quoted and request the supplier's drawing or process record for the selected construction.
Map the zones that behave differently: hand contact, knurl peaks and valleys, weld toes, inside corners, swivel housings, connection-eye bore and areas hidden by caps or grips. Metal-to-metal contact at the eye may polish or wear differently from a decorative face. Photograph these named zones on the approved sample so later inspectors compare like with like.
Approve appearance and adhesion with a method that fits the part
Approve appearance and adhesion with a method that fits the part
Inspect the cleaned sample under fixed light and viewing distance. Record gloss family, color, coverage, grinding marks, burns, pits, nodules, rack marks and exposed steel. Do not require a vague mirror finish where a weld recess or deliberate brushed surface has a different approved appearance. Use boundary samples when the visual decision would otherwise depend on opinion.
ASTM B571 covers qualitative adhesion methods for metallic coatings and requires the acceptance method to be specified. Method suitability depends on coating, substrate, geometry and service. Do not improvise destructive bending, cutting or heating on saleable attachments; agree whether a production-representative panel, sacrificial part or another defined specimen will be used and what peeling, flaking or lifting means for release.
Use corrosion testing without turning hours into a lifetime promise
Use corrosion testing without turning hours into a lifetime promise
ISO 9227 defines neutral, acetic-acid and copper-accelerated salt-spray procedures. It does not choose the specimen, exposure period or acceptance limit for a cable handle. More importantly, the standard says these methods are not intended to rank unlike materials or predict long-term field resistance. A report is useful only when it identifies the coating system, specimen preparation, method, duration, evaluation zones and result rule.
Connect the test plan to the destination: air-conditioned club, humid coastal warehouse, garage channel, frequent sweat contact or chlorine-containing cleaners. Use salt-spray evidence to check process consistency or an agreed coating requirement, then keep real-product checks for pores, recesses, handling damage and packing rub. Stainless construction is also a material decision, not simply a different color option.
Finish evidence and lot decision matrix
| Finding | Verification | Decision |
|---|---|---|
| Uniform approved appearance | Compare named zones with the released sample | Accept within the written boundary |
| Small rack or contact mark | Check location, depth and exposed substrate | Accept only if the boundary permits it |
| Pinpoint rust or pitting | Record zone, carton and recurrence after gentle cleaning | Hold affected scope for review |
| Blister, peel or lifted edge | Use the agreed adhesion investigation on a representative specimen | Quarantine; do not polish away evidence |
| Salt-spray report supplied | Confirm system, specimen, method, duration and evaluation rule | Use only for the stated requirement |
| Finish route changed | Repeat appearance, adhesion, contact and packing approval | Do not release against the old sample |
Protect the finish through cleaning, branding and export packing
Protect the finish through cleaning, branding and export packing
Cleaning chemistry can damage or disguise a finish. Approve a mild routine for fingerprints, sweat and light residue, and test any disinfectant on the actual released surface. Abrasive pads, strong acids, chlorides and unapproved rust removers can scratch plating or attack exposed areas. A factory wipe must not be used to hide active rust, blisters or loose coating before packing.
Custom Logo plates, laser-marked zones, rubber grips and molded caps can change the finishing route or trap rinse liquid. Lock the sequence for welding, polishing, plating, branding and final assembly. During export, keep plated parts from rubbing each other, isolate metal from damp carton surfaces and protect protruding eyes and knurling. Packing materials should be clean, dry and verified against the approved sample.
Make receiving inspection a zone-by-zone release decision
Make receiving inspection a zone-by-zone release decision
At receipt, sample cartons from different pallet levels and open them before routine cleaning. Record packaging moisture, condensation, odor, visible transfer and the attachment's temperature condition. Under fixed light, inspect the eye, welds, inner curves, grip transitions and high points; then use a clean cloth to distinguish loose packing residue from a surface that continues to stain or shed.
Release cosmetic variation only within the written boundary. Quarantine sharp lifting, recurrent blisters, exposed base metal, active rust, unexplained pitting or a finish that differs from the approved construction. Send ChinaFreeWeight the attachment list, substrate choice, destination environment, cleaning route, branding and packing method so the quotation and sample approval can include the evidence your team will actually use.
Ten controls for an OEM cable-attachment finish specification
- Name the base material and quoted finish system.
- Identify every plated, polished, coated and uncoated zone.
- Approve production-equivalent appearance and boundary samples.
- Define lighting, viewing distance and defect terminology.
- Select an adhesion method suitable for the coating and part.
- State corrosion method and acceptance rule without a life prediction.
- Approve cleaners and disinfectants on the finished sample.
- Freeze welding, polishing, plating, branding and assembly sequence.
- Prevent metal-to-metal rub and moisture contact in export packing.
- Record findings by SKU, carton, pallet position and surface zone.
Continue the cable-attachment specification
- Browse cable-machine attachments
- Review the accessory range
- Confirm connector compatibility
- Verify load evidence
- Specify handle diameter and grip
- Build the pre-shipment inspection
- Send the finish-control brief
Frequently Asked Questions About Chrome-Plated Cable Attachments
Is shiny cable-attachment steel always chrome plated?
No. A bright surface may be chrome-plated carbon steel, polished stainless steel or another finish. The purchase record should name the substrate and finish route.
Does a longer salt-spray result prove a longer gym service life?
No. ISO 9227 provides controlled corrosion-test procedures but does not turn exposure time into a field-life prediction or a universal ranking of different materials.
Can a buyer require an adhesion test on every finished handle?
Many adhesion methods are destructive or unsuitable for a finished shape. Agree a valid method, specimen type, frequency and acceptance rule before production.
Should tiny contact marks at the carabiner eye be rejected?
Judge the mark against an approved zone-specific boundary and confirm that it is not a sharp edge, active corrosion, abnormal wear or exposed base metal outside the agreed condition.
Which changes require renewed finish approval?
Review changes to substrate, pretreatment, layer sequence, polishing, weld finishing, plating supplier, branding, cleaner, grip or cap assembly, protective film and packing contact.
Build a finish approval package
Share the attachment models, substrate, destination climate, cleaning routine, branding and packing contact points so the factory review can define samples and evidence. Request a finish review.
